Запчасти Case IH 340 (081[A]) - ELECTRICAL SYSTEM, HEADLIGHTS INTERNATIONAL 340 SERIES (06) - ELECTRICAL SYSTEMS

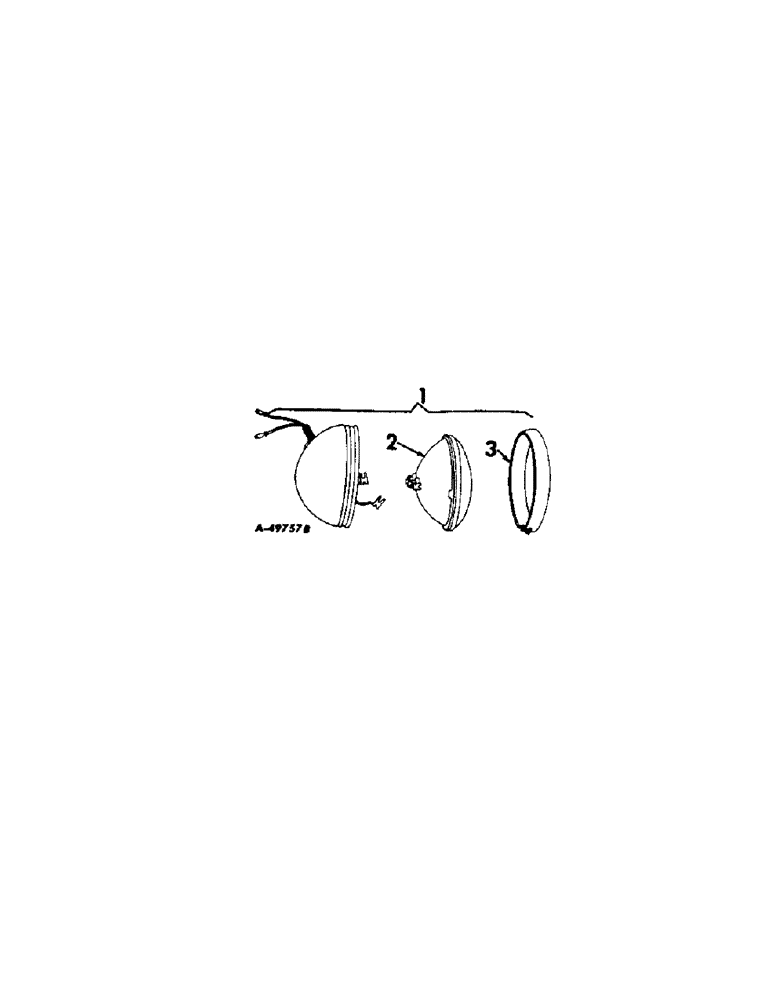

Схема запчастей Case IH 340 - (081[A]) - ELECTRICAL SYSTEM, HEADLIGHTS INTERNATIONAL 340 SERIES (06) - ELECTRICAL SYSTEMS
2
3
1

Артикул

Название

Примечание

Количество

1

370709R91

HEADLIGHT ASSEMBLY, sealed beam, LH (6 volt) (guide) (optional with 374207R91)

1шт.

1

374207R91

HEADLIGHT ASSEMBLY, sealed beam, Lh (6 volt) (Dietz) (optional with 370709R91)

1шт.

1

370299R91

HEADLIGHT

ASSEMBLY, sealed beam, LH (12 volt) (guide) (optional with 374181R91)

1шт.

1

374181R91

LAMP

HEADLIGHT ASSEMBLY, sealed beam, LH (12 volt) (Dietz) (optional with 370299R91)

1шт.

1

370711R91

HEADLIGHT ASSEMBLY, sealed beam, RH (6 volt) (guide) (optional with 374208R91)

1шт.

1

374208R91

HEADLIGHT ASSEMBLY, sealed beam, RH (6 volt) (Dietz) (optional with 370711R91)

1шт.

1

370301R91

HEADLIGHT

ASSEMBLY, sealed beam, RH (12 volt) (guide) (optional with 374182R91)

1шт.

1

374182R91

LAMP

HEADLIGHT ASSEMBLY, sealed beam, RH (12 volt) (Dietz) (optional with 370301R91)

1шт.

2

371457R91

LAMP

UNIT, sealed beam, 6 volt

1шт.

2

371443R91

LAMP BASE

UNIT, sealed beam, 12 volt

1шт.

3

371448R91

MOULDING ASSEMBLY, Dietz

1шт.

SCREW, no. 8 NF x 1-1/4" slt-fil-hd. mach.

1шт.

365697R1

NUT, no. 8 NF

1шт.

WASHER, no. 8 lock

1шт.

3

371449R91

MOULDING ASSEMBLY, guide

1шт.

53526D

SCREW

moulding assembly

1шт.

Выбрано товаров: 16
