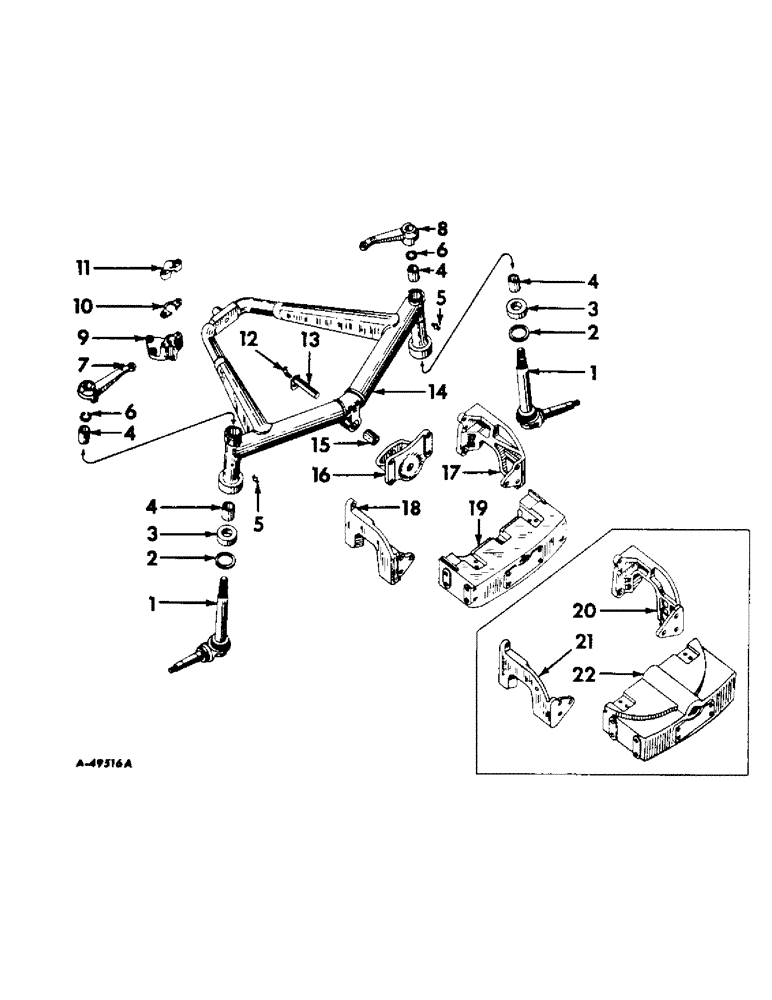

Запчасти Case IH 340 (175) - FRONT AXLE, STEERING KNUCKLES, HEAVY DUTY FIXED TREAD FRONT AXLE & SUPPORTS (04) - FRONT AXLE

1

366473R91

KNUCKLE

ASSEMBLY, steering, composed of (1) knuckle 358960R1 (NSS), (1) oil seal 48704DA, (1) pin 361846R1 (NSS), (1) shield 48704D, (1) spacer 51901D

2шт.

2

55412D

WASHER

WASHER, steering knuckle pivot felt

2шт.

3

357349R91

THRUST BEARING,42.53mm ID x 81.74mm OD x 19.18mm W

steering knuckle thrust

2шт.

4

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

steering knuckle pivot pin

4шт.

5

110161

FITTING, 3/16" straight drive type lubrication (optional with 125617)

2шт.

5

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16" straight drive type lubrication (optional with 110161)

2шт.

6

361850R1

RING

SNAP RING, steering knuckle arm

2шт.

7

365439R1

ARM

steering knuckle RH

1шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8NF jam

1шт.

Q326

WASHER

1-13/32 x 2-3/4" x 18 ga.

1шт.

8

365438R1

ARM

steering knuckle LH

1шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8NF jam

1шт.

Q326

WASHER

1-13/32 x 2-3/4" x 18 ga.

1шт.

9

368612R1

BRACKET, stay rod ball (unit A) International 330

1шт.

9

369755R2

HOLDER

BRACKET, stay rod ball (unit A) International 340 Series

1шт.

SCREW, 5/8 x 1-5/8" hex-hd. cap

3шт.

WASHER, 5/8" lock

3шт.

10

368613R1

SHIM

stay rod ball bracket cap (.0149") (unit A)

1шт.

11

368614R2

CAP

stay rod ball bracket (unit A) (see note)

1шт.

375492R1

SCREW,Hex, 1/2"

1/2 x 2" hex-hd. cap

2шт.

WASHER, 1/2" heavy lock

2шт.

365455R1

CAP, screw locking wire

2шт.

12

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 x 45 deg. lubrication (unit A) (optional with 271283)

1шт.

12

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, 1/8-27 x 45 deg. lubrication (unit A) (optional with 126152)

1шт.

13

368604R11

PIN ASSY.,31.55mm OD x 116.84mm L

ARM AND PIN ASSEMBLY, front axle pivot (unit A)

1шт.

SCREW, 1/2 x 7/8" hex-hd. cap

1шт.

14

370187R92

AXLE w/FOUR BUSHINGS, 358958R2 and bushing, 368608R1 assembly, front

1шт.

15

368608R1

BUSHING,31.76mm ID x 34.95mm OD x 53.34mm L

front axle pivot

1шт.

16

368603R1

BRACKET, front axle pivot (unit A)

1шт.

SCREW, 1/2 x 1-5/8" hex-hd. cap

4шт.

WASHER, 1/2" lock

4шт.

17

375247R2

BRACKET, front bolster LH support (unit A) International 340

1шт.

NUT, 5/8"

1шт.

SCREW, 5/8 x 1-5/8" hex-hd. cap

3шт.

SCREW, 5/8 x 2" hex-hd. cap

1шт.

SCREW, 5/8 x 2-3/4" hex-hd. cap

1шт.

17

375298R1

BRACKET, front bolster LH support (unit A) International 340 Diesel

1шт.

SCREW, 5/8 x 1-5/8" hex-hd. cap

3шт.

18

375248R2

BRACKET, front bolster RH support (unit A) International 340

1шт.

SCREW, 5/8 x 1-5/8" hex-hd. cap

3шт.

SCREW, 5/8 x 2-1/4" hex-hd. cap

2шт.

18

375299R1

BRACKET, front bolster RH support (unit A) International 340 Diesel

1шт.

SCREW, 5/8 x 1-5/8" hex-hd. cap

3шт.

19

375249R3

BOLSTER, front

1шт.

20

368596R2

BRACKET, front bolster LH support (unit A) International 330

1шт.

NUT, 5/8"

1шт.

SCREW, 5/8 x 2-1/4" hex-hd. cap

2шт.

SCREW, 5/8 x 2-3/4" hex-hd. cap

1шт.

WASHER, 5/8" lock

3шт.

21

368597R2

BRACKET, front bolster RH support (unit A) International 330

1шт.

SCREW, 5/8 x 2-1/4" hex-hd. cap

2шт.

SCREW, 5/8 x 2-3/4" hex-hd. cap

1шт.

WASHER, 5/8" lock

3шт.

22

362379R1

BOLSTER, front (unit A) International 330

1шт.

SCREW, 5/8 x 2" hex-hd. cap

6шт.

WASHER, 5/8" lock

6шт.

51485D

BOLT,9/16" - 18 x 1 7/32"

front wheel mounting

12шт.

49115D

CYLINDER END CAP

CAP, front wheel hub

2шт.

SCREW, 5/16 x 5/8" hex-hd. cap

6шт.

ST781A

TAPERED BEARING,42.88mm ID x 22.48mm W

CONE, front wheel inner bearing

2шт.

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

CONE, front wheel outer bearing

2шт.

ST882

CUP

front wheel inner bearing

2шт.

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Front wheel outer

2шт.

49116D

GASKET,0.79mm Thk

front wheel hub cap

2шт.

366472R11

HUB ASSEMBLY, front wheel

2шт.

361138R1

NUT

front wheel outer bearing retainer

2шт.

PIN, 5/32 x 1-3/8" cotter

2шт.

48704DA

OIL SEAL

OIL SEAL, front wheel

2шт.

48701D

SHIELD

front wheel dust

2шт.

51901D

SPACER

front wheel bearing

2шт.

353838R1

WASHER

WASHER, front wheel outer bearing retainer

2шт.
