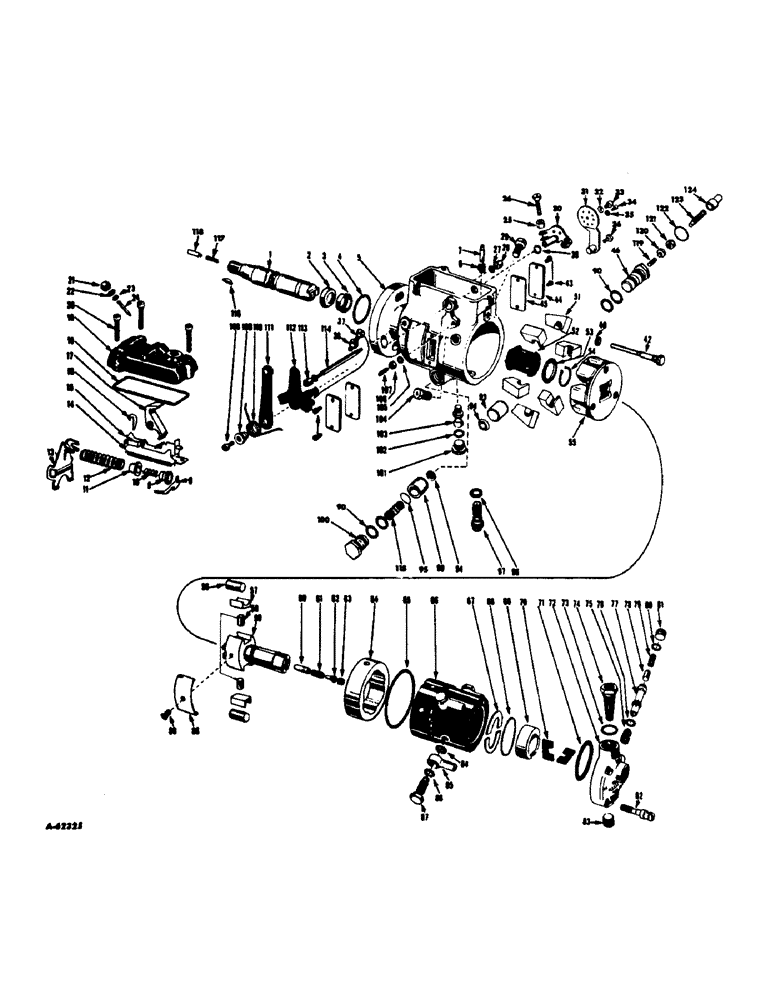

Запчасти Case IH 340 (043) - FUEL SYSTEM, FUEL INJECTION PUMP, DIESEL ENGINE TRACTORS (02) - FUEL SYSTEM

313237R91

PUMP

assembly, injection

1шт.

1

304715R1

SHAFT

drive

1шт.

2

313288R1

SEAL

OIL SEAL, drive shaft

1шт.

3

313288R1

SEAL

OIL SEAL, drive shaft

1шт.

4

304720R1

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

OIL SEAL, pilot tube

1шт.

5

319667R91

HOUSING W/PILOT

1шт.

6

304746R1

VALVE SPRING

SPRING, fuel metering valve

1шт.

7

313683R1

VALVE

fuel metering

1шт.

313286R1

WASHER

SHIM, metering valve

1шт.

8

321315R91

ARM ASSEMBLY, fuel metering valve

1шт.

9

368015R1

RETAINER, governor idling spring

1шт.

10

304810R1

SPRING

governor idling

1шт.

11

367998R1

GUIDE

governor idling spring

1шт.

12

368000R1

VALVE SPRING

SPRING, governor control

1шт.

13

313243R1

GOVERNOR

ARM, governor

1шт.

14

367995R1

VALVE SPRING

SPRING, governor linkage

1шт.

15

313241R91

HOOK, governor linkage

1шт.

16

368023R1

CAM

fuel shut-off

1шт.

17

304794R1

LEVER

throttle shaft

1шт.

18

368012R1

SEAL

governor control cover

1шт.

19

304744R1

COVER ASSY

COVER, governor control

1шт.

20

319674R1

SCREW

governor control cover hold-down

3шт.

319676R1

WASHER

cover hold-down screw

3шт.

115545

LOCK WASHER,Int Tooth, #10

WASHER, no. 10 int. tooth lock

3шт.

21

368009R1

NUT

idle adjusting screw lock (cover)

1шт.

22

304728R1

WASHER

idle adjusting screw cover

1шт.

23

304729R1

SEAL

idle adjusting screw oil (cover)

1шт.

24

304788R1

SET SCREW

idle adjusting (cover)

1шт.

25

304818R1

NUT, shut-off lever adjusting screw

2шт.

26

368002R1

ADJUSTMENT SCREW,Drilled Sl Hex, #10 - 32 x 1.406"

shut-off lever adjusting

2шт.

27

304721R1

SEAL

governor arm pivot shaft retaining nut

2шт.

28

368018R1

NUT

governor arm pivot shaft retaining

1шт.

29

368810R1

SCREW, hydraulic head locking

1шт.

30

368022R91

SHAFT AND LEVER ASSEMBLY, shut-off

1шт.

319744R1

WASHER

SEAL, shut-off shaft

1шт.

31

304748R91

ARM

ASSEMBLY, adjustable shut-off

1шт.

32

115545

LOCK WASHER,Int Tooth, #10

WASHER, shut-off lever positioning (no. 10 internal-tooth lock)

1шт.

33

217920

COVER

SCREW, shut-off lever retaining (no. 10 NF x 3/8" hex-soc-hd)

1шт.

34

368026R1

SCREW, shut-off lever positioning

1шт.

35

115544

WASHER,Int Tooth, #8

shut-off lever positioning screw (no. 8 internal-tooth lock)

1шт.

36

450643

SCREW,Hex Hd, #8-32 x 3/8"

shut-off arm fitting (no. 8 x 3/8" hex-hd. mach.)

1шт.

37

304789R1

ADJUSTMENT SCREW

throttle high idle adjustment

1шт.

38

307818R1

LOCK NUT

NUT, throttle high idle adjusting screw lock

1шт.

39

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

"O" RING, 1/4 x 3/8 x 1/16" (throttle shaft torque screw seal unit)

2шт.

40

368014R1

WASHER

guide stud

1шт.

42

313677R1

STUD

governor idling spring guide

1шт.

43

134213

SCREW,Sl Oval Hd, #8 - 32 x 5/16"

no. 8 x 5/16" slt-ov-hd. mach. (used with timing line cover)

4шт.

44

304740R1

COVER ASSY

COVER, timing line

2шт.

45

367979R1

GASKET

timing line cover

2шт.

46

319988R1

PLUG, piston hole

1шт.

51

368343R1

WEIGHT

governor

6шт.

52

368341R1

SLEEVE

governor thrust

1шт.

53

368342R1

THRUST WASHER

governor thrust

1шт.

54

368345R1

SNAP RING

RING, governor weight retainer retaining

1шт.

55

319727R91

RETAINER, governor weight

1шт.

56

368805R1

ROLLER

plunger actuating cam

2шт.

57

368804R1

SHOE (ASSY)

SHOE, plunger actuating cam

2шт.

58

317891R1

PLUNGER, rotor (for rotors marked with letter A)

2шт.

58

317892R1

PLUNGER, rotor (for rotors marked with letter B)

2шт.

58

317893R1

PLUNGER, rotor (for rotors marked with letter C)

2шт.

58

317894R1

PLUNGER, rotor (for rotors marked with letter D)

2шт.

59

NOT FURNISHED SEPARATELY

1шт.

60

304804R1

VALVE

distributor rotor delivery

1шт.

61

304807R1

SPRING

distributor rotor delivery valve

1шт.

62

317900R1

STOP

distributor rotor delivery valve

1шт.

63

317901R1

CAPSCREW,3/25" x 7/32"

SCREW, distributor rotor delivery valve retaining

1шт.

64

319733R1

RING, cam

1шт.

65

368337R1

SEALING RING

SEAL, hydraulic head

1шт.

66

319726R91

HEAD AND ROTOR ASSEMBLY, hydraulic (composed of, (2) plunger 317894R1, (2) retainer 304811R1, (1) ring 304801R1, (1) screw 317901R1, (1) spring 304807R1, (1) stop 317900R1, (1) valve 304804R1)

1шт.

67

304800R1

WASHER

RETAINER, distributor rotor

2шт.

68

304801R1

RING

distributor rotor retainer

1шт.

69

304745R1

GUIDE

LINER, transfer pump

2шт.

70

319991R1

WIPER BLADE

BLADE, transfer pump

2шт.

71

367982R1

O-RING,0.154" Width

"O" RING, 1.312 x 1.812 x .150" thick (transfer pump)

1шт.

72

367985R91

COVER ASSY

PLATE, injection pump end

1шт.

73

368030R1

RING

"O" RING, .555 x .701 x .073" thick (cap and filter fuel inlet strainer)

1шт.

74

368029R91

SIEVE

STRAINER, cap and filter fuel inlet

1шт.

75

367986R1

VALVE SPRING

SPRING, fuel pressure regulating valve plunger retaining

1шт.

76

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk (Regulating valve plunger sleeve seal)

1шт.

77

319677R1

SLEEVE, end plate

1шт.

78

367988R1

PLUNGER

PISTON, fuel pressure regulating

1шт.

79

319990R1

SPRING

fuel pressure regulating

1шт.

80

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk (Regulating valve plunger sleeve seal)

1шт.

81

367990R1

PLUG, end plate sleeve retaining (std.)

1шт.

81

305139R1

PLUG

end plate sleeve retaining (.020")

1шт.

81

367991R1

PLUG, end plate sleeve retaining (.030")

1шт.

81

305140R1

PLUG, end plate sleeve retaining (.040")

1шт.

81

367992R1

PLUG, end plate sleeve retaining (.050")

1шт.

81

305141R1

PLUG

end plate sleeve retaining (.060")

1шт.

81

305142R1

PLUG, end plate sleeve retaining (.070")

1шт.

81

317957R1

PLUG, end plate sleeve retaining (.080")

1шт.

81

305144R1

PLUG

end plate sleeve retaining (.090")

1шт.

82

304790R1

SCREW

injection pump end plate

4шт.

83

321076R1

PLUG

injection pump end plate pipe

1шт.

312593R1

SEAL

end plate pipe plug

1шт.

84

367984R1

SEALING WASHER

WASHER, fuel line connector

4шт.

85

CONNECTOR, injection pipe (furnished as part of injection pipe)

1шт.

86

367984R1

SEALING WASHER

WASHER, fuel line connector

4шт.

87

367983R1

CAPSCREW,Hex, 3/8" - 24 x 1.055", Drilled

SCREW, fuel line connector

4шт.

88

304797R1

VALVE SPRING

SPRING, plunger limiting leaf

1шт.

89

368806R1

SCREW, plunger limiting leaf spring adjusting

1шт.

90

319687R1

WIPER SEAL

piston hole plug

4шт.

93

319987R1

PISTON, power

1шт.

94

368035R1

WASHER

automatic advance slide

2шт.

95

372167R1

SHIM, advance spring (.0155 - .1075)

1шт.

95

368575R1

SHIM

advance spring (.004 - .006)

1шт.

95

372618R1

SHIM

advance spring (.032 - .034)

1шт.

96

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, Head locating screw

2шт.

97

319679R91

CAPSCREW

SCREW, head locating

1шт.

99

319986R1

PISTON, load advance spring

1шт.

100

319684R1

PLUG, piston hole

1шт.

101

319688R1

PLUG

advance screw hole

1шт.

102

319689R1

WIPER SEAL

advance screw hole

1шт.

103

319680R1

SCREW

cam advance

1шт.

104

368810R1

SCREW, hydraulic head locking

1шт.

105

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

"O" RING, 1/4 x 3/8 x 1/16" (metering valve controlling torque screw seal nut)

1шт.

106

19735R1

NUT, metering valve controlling torque screw lock

1шт.

107

368813R1

SCREW, metering valve controlling torque

1шт.

108

217921

SCREW, no. 10 x 5/8" hex-soc-hd. cap (throttle arm spring retainer screw)

1шт.

109

304743R1

RETAINER

throttle arm spring

1шт.

110

304739R1

VALVE SPRING

SPRING, throttle arm

1шт.

111

304738R91

LEVER

throttle

1шт.

112

304749R91

SHAFT

throttle

1шт.

113

368018R1

NUT

governor arm pivot shaft retaining

1шт.

114

368016R1

SHAFT

governor arm pivot

1шт.

115

319989R1

SPRING, automatic advance

1шт.

116

106750

KEY

5/32 x 5/8" (Woodruff no. 6) (drive shaft)

1шт.

117

304717R1

VALVE SPRING

SPRING, drive shaft thrust button

1шт.

118

319725R1

BUTTON, drive shaft thrust

1шт.

119

319683R1

SPRING

advance trimmer

1шт.

120

319692R1

GUIDE

advance adjusting spring

1шт.

121

19735R1

NUT, advance adjusting screw lock

1шт.

122

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

advance adjusting screw (1/4 x 3/8 x 1/16")

1шт.

123

319691R1

CAPSCREW,1/4" x 1.385"

SCREW, advance adjusting

1шт.

124

313287R1

COVER ASSY

CAP, advance adjusting screw

1шт.

61921D

ELECTRICAL WIRE

SEAL, adjusting screw cap (wire)

1шт.

369514R91

STRIPPER PACKAGE

1шт.

PACKAGE, fuel injection pump field service (consists of, (2) gasket 367979R1, (1) gasket 368012R1, (6) "O" ring 352219R1, (3) "O" ring 359158R1, (1) "O" ring 367982R1, (1) "O" ring 368030R1, (1) "O" ring 368046R1, (2) oil seal 313288R1, (2) seal 319744R1, (1) seal 355966R1, (2) seal 368042R1, (1) seal 368337R1, (2) seal 304721R1, (1) seal 304724R1, (13) washer 367984R1, (2) washer 368017R1, (1) washer 368014R1, (1) washer 313685R1)

1шт.

12736D

ELECTRICAL WIRE

WIRE, lead pump and sealing

5шт.
