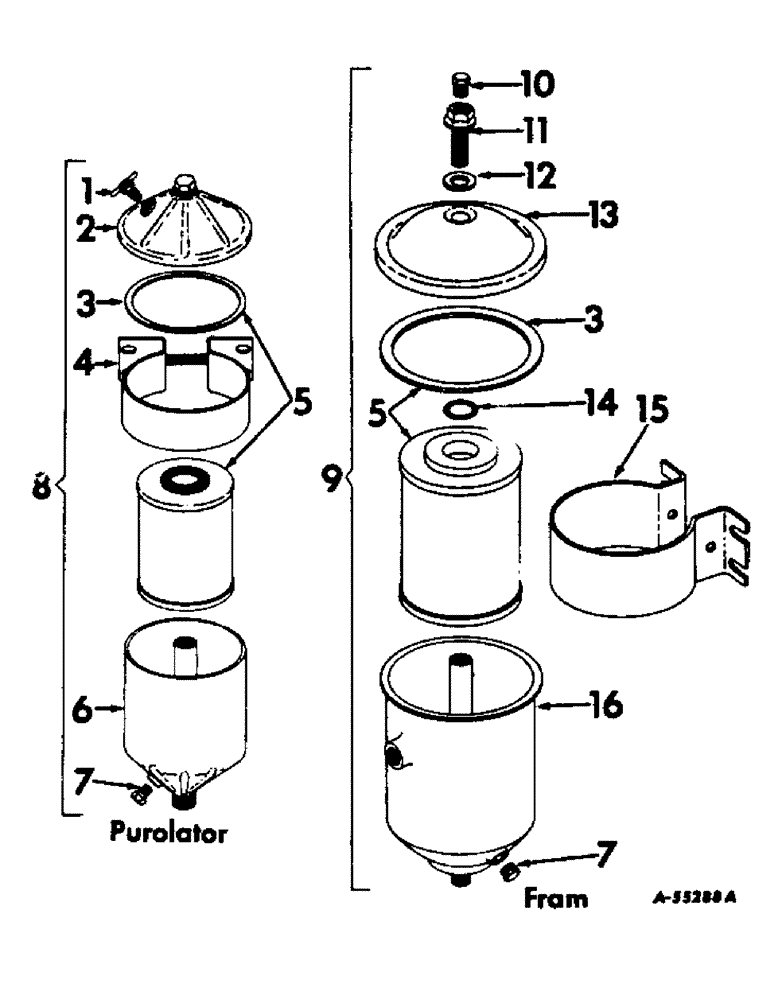

Запчасти Case IH 340 (042) - FUEL SYSTEM, FUEL FILTER, DIESEL ENGINE TRACTOR (02) - FUEL SYSTEM

1

114981

VALVE

BLEEDER, filter

1шт.

2

304103R91

COVER

ASSEMBLY, filter

1шт.

3

304102R1

GASKET

element cover

1шт.

4

304104R91

HOLDER

BRACKET ASSEMBLY, filter

1шт.

5

304101R91

FILTER, ELEMENT

ELEMENT ASSEMBLY, filter (optional with 306353R91)

1шт.

5

306353R91

ELEMENT

ASSEMBLY, filter (special) (optional with 304101R91)

1шт.

6

304100R91

BODY

CASE ASSEMBLY, filter

1шт.

7

258995R1

PLUG

filter drain

1шт.

8

278062R91

FILTER

ASSEMBLY, fuel (Purolator) (optional with 306399R91)

1шт.

9

306399R91

FILTER

ASSEMBLY, fuel (Fram) (optional with 278062R91)

1шт.

NUT, 5/16"

4шт.

SCREW, 5/16 x 7/8" hex-hd. cap

4шт.

WASHER, 5/16" lock

4шт.

WASHER, 11/32 x 11/16" x 16 ga.

4шт.

10

306778R1

PLUG, filter vent

1шт.

11

368492R1

SCREW, filter vent cap

1шт.

12

368493R1

GASKET

filter vent cap screw

1шт.

13

306776R1

COVER, filter

1шт.

14

306777R1

O-RING

O-RING, filter body

1шт.

15

306780R1

STRAP, filter bracket

1шт.

NUT, 1/4" sq.

1шт.

SCREW, 1/4 x 3" slt-rd-hd. mach.

1шт.

WASHER, 1/4" lock

1шт.

16

306775R91

CASE ASSEMBLY, filter

1шт.
