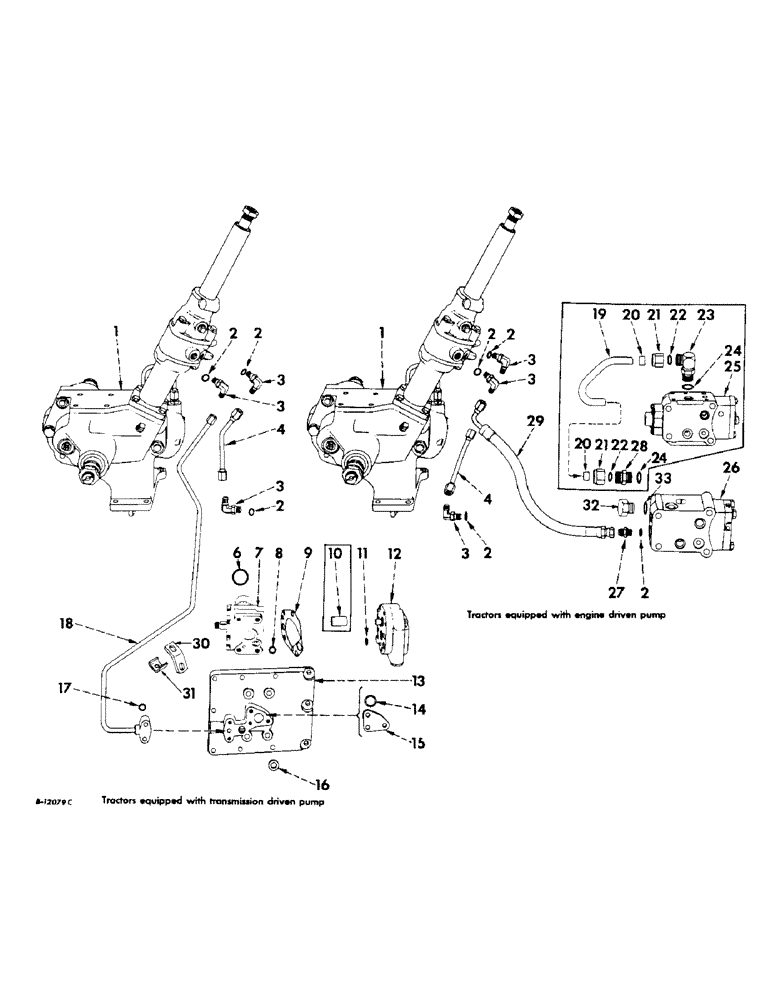

Запчасти Case IH 340 (166) - STEERING MECHANISM, POWER STEERING, INTERNATIONAL 340 SERIES Steering Mechanism

1

370548R92

GEAR ASSEMBLY, steering (for components see list of parts under details of "steering gear") (Units A, B, C and D)

1шт.

1

377565R92

GEAR ASSEMBLY, steering (for components see list of parts under details of "steering gear") (units E, F and G)

1шт.

2

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8" tube fitting (3 for units, A, B, D, E and G; 4 for units C and F)

1шт.

3

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

W/NUT AND WASHER ASSEMBLY, 3/8" tube 90deg. (o-ring type)

3шт.

4

371176R11

TUBE

ASSEMBLY, return

1шт.

6

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

pump adapter suction port (1-1/4 x 1-1/2 x 1/8") (units B, D and G)

1шт.

7

372065R91

ADAPTER ASSEMBLY, power steering pump (units B and D) (for components see list of parts under details of "power steering pump adapter") (order adapter 375416R91)

1шт.

7

375416R91

ADAPTER ASSEMBLY, power steering pump (units B, D and G) (for components see list of parts under details of of "power steering pump adapter")

1шт.

*

NUT, 5/8 NF elastic stop (units B, D and G)

1шт.

*

19263R1

LOCK NUT,Hex, 5/8" - 18

SCREW, 7/16 x 1-5/8" hex-hd cap (4 for unit B)

1шт.

*

SCREW, 7/16 x 1-3/8" cap (4 for units D and G)

1шт.

8

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

power steering pump adapter (1/2 x 11/16 x 3/32") (units B, D and G)

1шт.

9

371543R1

GASKET

power steering pump (units A, B, D, E and G)

1шт.

10

372066R1

COUPLING, power steering pump adapter (units B and D) (used only with adapter, 372065R91)

1шт.

11

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

power steering pump (9/16 x 11/16 x 1/16") (units A, B, D, E and G)

1шт.

12

371135R92

PUMP

ASSEMBLY, power steering (Cesna) (units A, B, D, E and G) (for components see list of parts under details of "power steering pump") (optional with 370924R92)

1шт.

12

1949250C1

REMAN-HYD PUMP

340 INTERNATIONAL UTILITY GAS, 340 INTERNATIONAL UTILITY DIESEL, Both TRACTOR, ASSEMBLY, power steering (Cessna), 340 SERIES (1/58-12/63)

1шт.

12

1949251C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

*

371802R1

BOLT, power steering pump short (3 for units, A, B, D, E and G)

1шт.

*

371803R1

BOLT,Hex, 3/8" - 16 x 2 1/2"

power steering pump long (units A, B, D, E and G)

1шт.

12

370924R92

PUMP

ASSEMBLY, power steering (Thompson) (units A, B, D, E and G) (for components see list of parts under details of "Power Steering Pump") (optional with 371135R92)

1шт.

12

1949250C1

REMAN-HYD PUMP

Reman for New P/N 370924R92

1шт.

12

1949251C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

*

371803R1

BOLT,Hex, 3/8" - 16 x 2 1/2"

power steering pump (4 for units A, B, D, E and G)

1шт.

13

370890R11

FLANGE ASSEMBLY, pump mounting (unit B)

1шт.

13

373713R11

FLANGE ASSEMBLY, pump mounting (unit D and G)

1шт.

*

SCREW, 3/8 x 1-1/8" hex-hd cap (3 for units B, D and G)

1шт.

*

SCREW, 3/8 x 1-3/8" hex-hd cap (6 for units B, D and G)

1шт.

*

SCREW, 3/8 x 1-5/8" hex-hd cap (units B, D and G)

1шт.

*

WASHER, 3/8" lock (7 for units B, D AND G)

1шт.

14

364840R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

implement pump pressure port cover (13/16 x 15/16 x 1/16") (units B, D and G)

1шт.

15

372067R1

COVER, implement pump pressure port cover (13/16 x 15/16 x 1/16") (units B, D and G)

1шт.

*

SCREW, 5/16 x 11/16" hex-hd. cap (3 for units B, D and G)

1шт.

*

WASHER, 5/16" lock (3 for units B, D and G)

1шт.

16

52999D

WASHER

GASKET, pump adapter bolt (4 for units B, D and G)

1шт.

17

252738R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

power steering tube flange (3/8 x 9/16 x 3/32") (units A, B, D, E and G)

1шт.

18

371175R21

TUBE,22.772, 5.970" Length

ASSEMBLY, pressure (units A, B, D, E and G)

1шт.

*

SCREW, 5/16 x 1-1/4" hex-hd cap (2 for units A, B, D, E and G)

1шт.

*

WASHER, 5/16" lock (2 for units A, B, D, E and G)

1шт.

19

371178R1

TUBE, regulator to valve (units C and D) (see notes A and B)

1шт.

20

364646R1

SPACER

SLEEVE, 5/8" OD tubing (2 for units C and D) (see notes A and B)

1шт.

21

364645R1

NUT, 5/8" OD tubing (2 for units C and D) (see notes A and B)

1шт.

22

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

connector or elbow (5/8 x 13/16 x 3/32") (2 for units C and D) (see notes A and B)

1шт.

23

371948R91

ELBOW ASSEMBLY, 5/8" tubing-90deg. (units C and D) (see notes A and B)

1шт.

24

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8" OD tubing (3/4 x 15/16 x 3/32") (2 for units C and D) (see notes A and B)

1шт.

25

371067R92

VALVE ASSEMBLY, hydra-touch control (unit C) (for components see list of parts under details of "Hydra-Touch Control Valve") (see notes A and B)

1шт.

26

364841R96

VALVE ASSEMBLY, regulator, safety and flow control (units C and F) (for components see list of parts under details of "Regulator Safety and Flow Control Valve")

1шт.

27

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8" tubing (o-ring type) (unit C and F)

1шт.

28

371970R1

CONNECTOR, 5/8" tubing (units C and D) (see notes A and B)

1шт.

29

373255R91

HOSE ASSEMBLY, power steering pressure (units C and F)

1шт.

30

374895R1

SUPPORT, pressure tube (units A, B, D, E and G) 1.55, 1.07" Length

1шт.

*

SCREW, 3/8 x 1-5/8" hex-hd

1шт.

31

374894R1

CLAMP, pressure tube (units A, B, D, E and G)

1шт.

*

SCREW, 1/4 x 7/8" hex-hd, cap

1шт.

*

WASHER, 1/4" lock

1шт.

32

9410360

PLUG

valve (units C and F) (see note C)

1шт.

33

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

valve plug (units C and F) (see note C)

1шт.

*

366566R1

CAP

steering wheel monogramed (illustrated with "Steering Gear")

1шт.

*

9410207

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

CONNECTOR, return tube (illustrated with "Hydra-Touch System")

2шт.

*

370216R1

COVER, LH valve mounting column (illustrated with "Hydra-Touch System")

1шт.

*

370801R1

GASKET

oil strainer opening cover

1шт.

*

370892R2

GASKET

pump mounting flange-light

2шт.

*

370893R2

GASKET

pump mounting flange-heavy

2шт.

*

370949R1

GEAR, pump adapter drive (16 teeth) (unit B)

1шт.

*

373711R1

PINION

GEAR, pump adapter drive (15 teeth) (units D and G)

1шт.

*

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

return tube connector (illustrated with "Hydra-Touch System")

2шт.

*

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

LH valve mounting column cover (11/16 x 7/8 x 3/32") (illustrated with "Hydra-Touch System")

3шт.

*

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, pump mounting flange plug

1шт.

*

9410358

PLUG

pump mounting flange

1шт.

*

371043R1

SPACER

pump mounting flange (unit B)

1шт.

*

374989R91

FILTER

TANDEM OIL FILTER PACKAGE

1шт.

*

370582R11

TUBE ASSEMBLY, hydraulic return (illustrated with "Hydra-Touch System")

1шт.

*

370950R93

TUBE

ASSEMBLY, pump suction (unit B)

1шт.

*

373710R92

TUBE

ASSEMBLY, pump suction (units D and G)

1шт.
