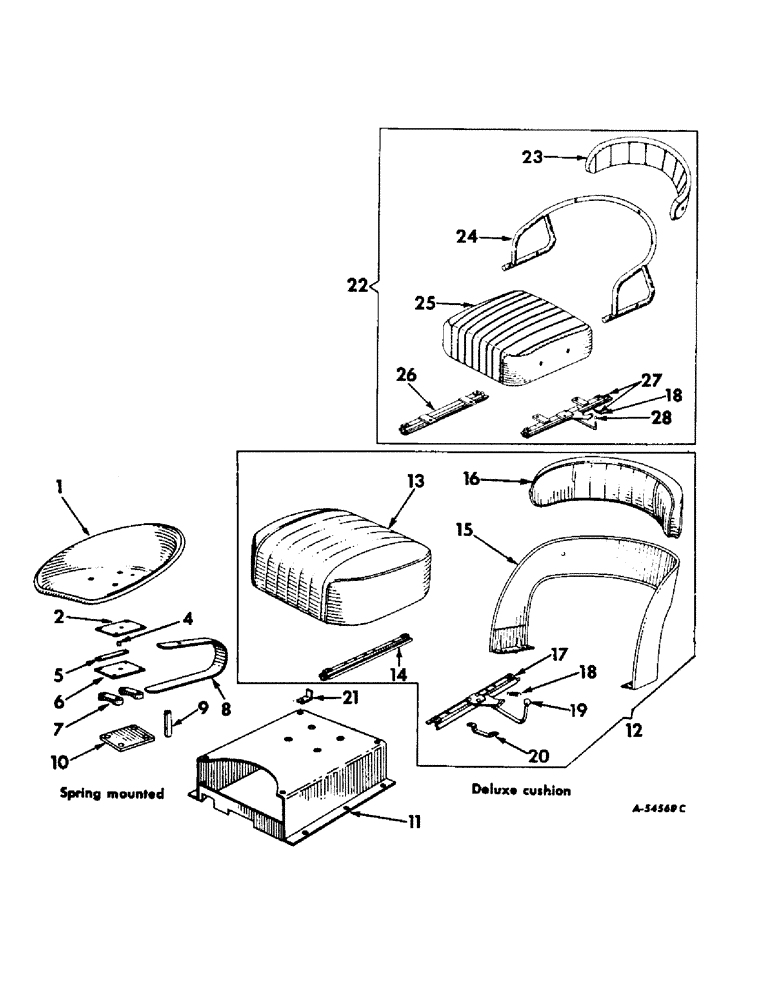

Запчасти Case IH 340 (276) - SEAT AND SUPPORTS, SEAT, 340 SERIES Seat & Supports

1

351880R92

SEAT

ASSEMBLY (plain)

1шт.

1

357518R91

DRIVER SEAT

SEAT ASSEMBLY (deluxe upholstered)

1шт.

2

362553R1

BRACKET, seat adjustment upper

1шт.

4

141236

DOWEL

PIN, 3/8 x 1/2" dowel

1шт.

5

362554R1

SPACER, seat adjustment bracket

2шт.

6

362553R1

BRACKET, seat adjustment lower

1шт.

SCREW, 7/16NF x 1-1/4" hex-hd. cap

4шт.

WASHER, 7/16NF lock

4шт.

7

362556R1

CLAMP, seat spring

2шт.

SCREW, 1/2 x 5-1/2" hex-hd. cap

4шт.

WASHER, 1/2" lock

4шт.

8

362555R1

SPRING, seat

1шт.

9

371718R1

SUPPORT, seat spring

1шт.

10

371719R1

SPACER, seat support

4шт.

11

369479R21

SUPPORT ASSEMBLY, tool box and seat

1шт.

SCREW, 7/16 x 3/4" hex-hd. cap

1шт.

SCREW, 7/16 x 3-1/2" hex-hd. cap

4шт.

SCREW, 7/16 x 1" hex-hd. cap

1шт.

12

371585R91

SEAT ASSEMBLY, deluxe cushion (Bostrom)

1шт.

374235R1

SCREW, 5/16 x 1/2" twelve pt-hd. cap

4шт.

13

371625R91

CUSHION

deluxe seat (see note)

1шт.

14

371629R91

RAIL ASSEMBLY, RH

1шт.

SCREW, 5/16 x 1-1/4" cr-rec-fil-hd. cd-pltd. mach

2шт.

WASHER, 5/16" cd-pltd. lock

2шт.

15

371626R91

SUPPORT ASSEMBLY, back

1шт.

SCREW, 3/8 x 1-1/4" hex-hd. cd-pltd. cap

4шт.

WASHER, 3/8" cd-pltd. lock

4шт.

16

371627R91

CUSHION

ASSEMBLY, back

1шт.

17

371628R91

RAIL w/SPRING ASSEMBLY, LH

1шт.

SCREW, 5/16 x 1-1/4" cr-rec-fil-hd. cd-pltd. mach.

2шт.

WASHER, 5/16" cd-pltd. lock

2шт.

18

96775R1

SPRING

adjuster

1шт.

19

148689R1

KNOB

seat adjuster

1шт.

20

371630R1

GUIDE, handle

1шт.

21

(Not Used)

1шт.

22

375178R91

1шт.

SEAT ASSEMBLY, deluxe cushion (Milsco) (optional with 371585R91) composed of (1) cushion 375179R1, (1) cushion 375181R91 (1) frame 375180R91, (1) knob 375184R1, (1) rail (LH) 375182R91, (1) rail (RH) 375183R91, (4) screw 120628, (7) screw 134440, (1) spring 96775R1, (4) washer 120380

1шт.

NUT, 5/16"

4шт.

SCREW, 5/16 x 5/8" hex-soc-hd. cap

4шт.

23

375181R91

CUSHION ASSEMBLY, back

1шт.

SCREW, 1/4 x 1-3/4" csk-ov-hd. mach.

3шт.

24

375180R91

FRAME ASSEMBLY, seat

1шт.

SCREW, 1/4 x 1-3/4" csk-ov-hd. mach.

4шт.

25

375179R1

CUSHION, seat

1шт.

26

375183R91

RAIL, RH seat

1шт.

SCREW, 1/4 x 1/2" slt-rd-hd. cd-pltd. mach.

2шт.

WASHER, 1/4" cd-pltd. lock

2шт.

27

375182R91

RAIL, LH seat

1шт.

SCREW, 1/4 x 1/2" slt-rd-hd. cd-pltd. mach.

2шт.

WASHER, 1/4" cd-pltd. lock

2шт.

28

375184R1

KNOB, LH seat rail

1шт.

371289R91

PARTS ACCESSORY, deluxe cushion seat (consists of seat, 371585R91 and four screws, 217906)

1шт.

351438R93

PAD

detachable seat (rubber)

1шт.

359483R91

PAD

detachable seat (jute)

1шт.
