Запчасти Case IH 340 (143) - REAR FRAME AND DRIVING MECHANISM, BELT PULLEY Rear Frame & Driving Mechanisms

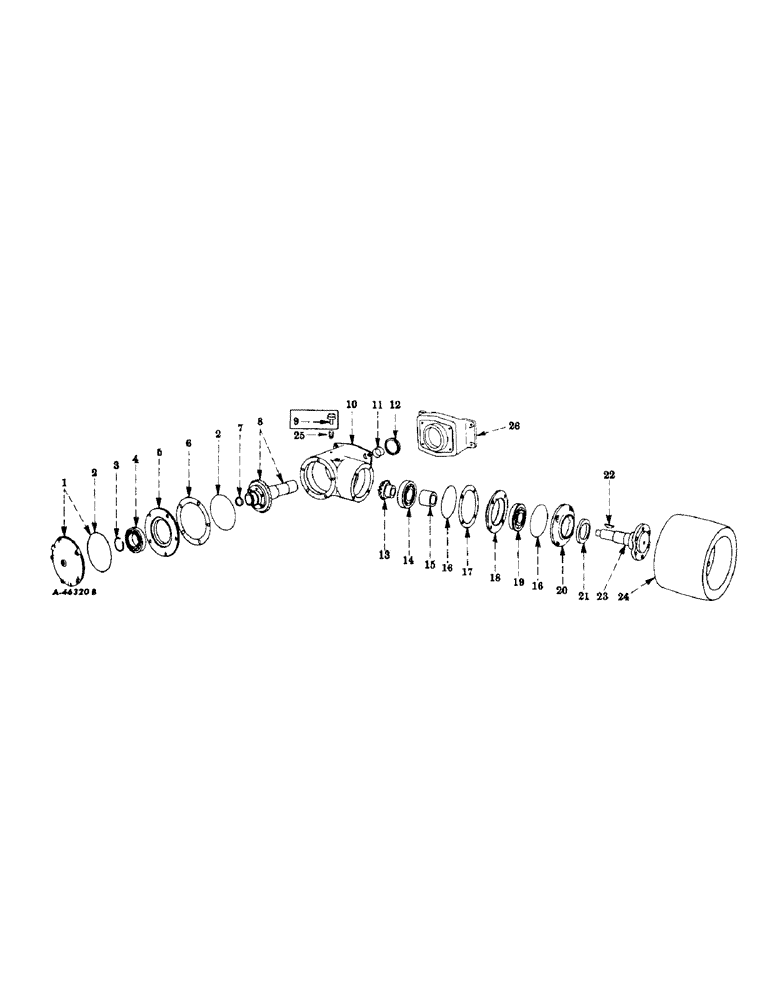

Схема запчастей Case IH 340 - (143) - REAR FRAME AND DRIVING MECHANISM, BELT PULLEY Rear Frame & Driving Mechanisms
18
16
24
13
8
2
1
7
22
5
20
3
14
2
16
19
4
12
11
21
6
23
28
10
15
17
9
25

Артикул

Название

Примечание

Количество

1

364734R11

RETAINER W/O-RING, 252556R1, assembly, pulley drive gear bearing (see note A)

1шт.

PLUG, 1/4" stl. sq-hd. pipe

1шт.

SCREW, 3/8 x 1-1/2" hex-hd. cap

5шт.

WASHER, 3/8" lock

5шт.

1

373059R11

RETAINER ASSEMBLY, pulley drive gear bearing (see note B)

1шт.

PLUG, 1/4" sq-hd. pipe

1шт.

SCREW, 3/8 x 1-1/2" hex-hd. cap

5шт.

2

252556R1

O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro

bearing retainer or cage (5-1/4 x 5-1/2 x 1/8" (see note A)

2шт.

2

252741R1

O-RING

bearing retainer or cage (5-3/4 x 6 x 1/8") (see note B)

2шт.

3

358236R1

RING

SNAP RING, pulley drive gear bearing

1шт.

4

ST382

BEARING, BALL

BALL BEARING, pulley drive gear

1шт.

5

364730R11

CAGE W/O O-RING, 252556R1 assembly, pulley drive gear bearing (see note A)

1шт.

5

373055R11

CAGE W/O O-RING, 252741R1 assembly, pulley drive gear bearing (see note B)

1шт.

6

364733R1

SHIM, pulley drive gear bearing cage, heavy (.030") (see note A)

1шт.

6

373058R1

SHIM, pulley drive gear bearing cage, heavy (.030") (see note B)

1шт.

6

364732R1

SHIM, pulley drive gear bearing cage, medium (.012") (see note A)

1шт.

6

373057R1

SHIM, pulley drive gear bearing cage, medium (.012") (see note B)

1шт.

6

364731R1

SHIM, pulley drive gear bearing cage, light (.007") (see note A)

1шт.

6

373056R1

SHIM, pulley drive gear bearing cage, light (.007") (see note B)

1шт.

7

145201R1

PLUG

cup

1шт.

8

364726R11

GEAR W/PLUG, 145201R1, assembly, bevel pulley drive (28 teeth) (unit A)

1шт.

8

364727R91

GEAR W/PLUG, 145201R1, assembly, bevel pulley drive (28 teeth) (unit B)

1шт.

9

60836H

BREATHER

housing (order bushing, 112897 and plug, 110891H)

1шт.

10

364723R21

HOUSING ASSEMBLY, pulley drive (has 7-1/8" flange for mounting pulley drive gear bearing cage, retainer and shims) (order 373336R91) (composed of, (1) bushing 364725R2, (1) housing 364723R2 (NSS), (1) oil seal 365416R91, (1) plug 103878, (1) plug 103881)

1шт.

103878

PLUG

1/4" stl. sq-hd. pipe (drain plug)

1шт.

103881

PLUG, 3/4" stl. sq-hd. pipe (filler plug)

1шт.

SCREW, 1/2 x 1-3/8" hex-hd. cap

4шт.

WASHER, 1/2" lock

4шт.

10

373052R11

HOUSING ASSEMBLY, pulley drive (has 7-5/8" flange for mounting pulley drive gear bearing cage, retainer and shims) (composed of, (1) bushing 364725R2, (1) housing 373052R1 (NSS), (1) oil seal 365416R91, (1) plug 103878, (1) plug 103881)

1шт.

PLUG, 1/4" sq-hd. pipe (drain plug)

1шт.

PLUG, 3/4" sq-hd. pipe (filler plug)

1шт.

SCREW, 1/2 x 1-1/4" hex-hd. cap

4шт.

WASHER, 1/2" lock

4шт.

11

364725R2

BUSHING, pulley drive gear hub

1шт.

12

365416R91

OIL SEAL

OIL SEAL, pulley drive gear hub

1шт.

13

364736R1

GEAR, pulley shaft (16 teeth)

1шт.

70120D

SLOTTED NUT,7/8"-14

NUT, pulley shaft gear retainer

1шт.

PIN, 1/8 x 1-1/4" cotter

1шт.

358235R1

WASHER, pulley shaft gear retainer

1шт.

14

ST220

BALL BEARING,39.83mm ID x 110mm OD x 27mm W

pulley shaft inner

1шт.

15

364744R1

SPACER, pulley shaft bearing

1шт.

16

293729R1

RING

O-RING, pulley shaft bearing cage or retainer (4-3/4 x 5 x 1/8")

2шт.

17

364743R1

SHIM, pulley shaft bearing cage, heavy (.030")

1шт.

17

364742R1

SHIM, pulley shaft bearing cage, medium (.012")

1шт.

17

364741R1

SHIM, pulley shaft bearing cage, light (.007")

1шт.

18

364740R11

CAGE W/O-RING, 293729R1 assembly, pulley shaft bearing

1шт.

19

ST294

BALL BEARING,45 mm ID x 100 mm OD x 25 mm

pulley shaft outer

1шт.

20

364737R11

RETAINER W/OIL SEAL, 365434R91 and o-ring 293729R1 assembly, pulley shaft bearing

1шт.

SCREW, 3/8 x 1-1/2" hex-hd. cap

4шт.

WASHER, 3/8" lock

4шт.

21

365434R91

OIL SEAL

pulley shaft bearing retainer

1шт.

22

40093D

WOODRUFF KEY,#127, 1/4" x 2 1/8", HT

KEY, no. 127 aly-stl. woodruff

1шт.

23

364735R1

SHAFT, pulley

1шт.

24

364748R91

PULLEY, belt (11" ida. x 7-1/2" face)

1шт.

SCREW, 1/2 NF x 1-1/4" hex-hd. cap

6шт.

WASHER, 1/2" lock

6шт.

25

110891H

BREATHER,1/8"-27 NPT, Short, w/washer

PLUG, vent

1шт.

112877

ADAPTER,1/4" NPT Male x 1/8" NPT Fem

BUSHING, 1/4 x 1/8" reducing pipe

1шт.

26

NOT USED

1шт.

373336R91

PACKAGE, pulley drive housing service (will work for 364723R21) (consists of, (1) cage 373055R11, (1) housing 373052R11, (1) retainer 373059R11, (1) shim, 373056R1, (1) shim 373057R1, (1) shim, 373058R1)

1шт.
