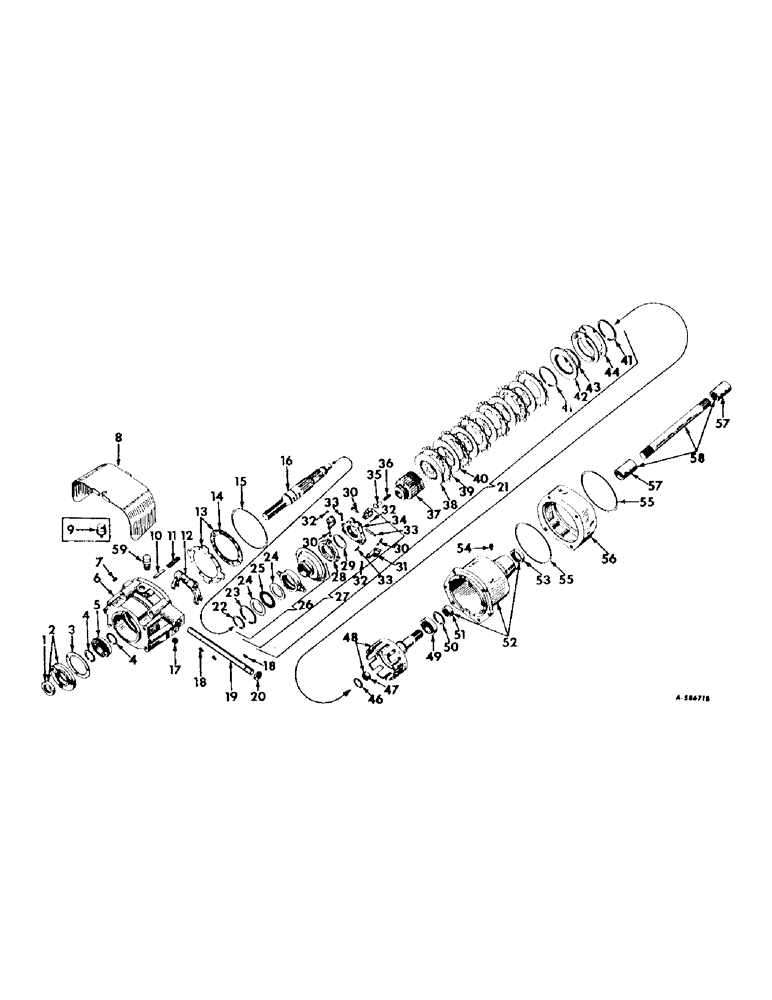

Запчасти Case IH 340 (140) - REAR FRAME AND DRIVING MECHANISMS, INDEPENDENT POWER TAKE-OFF, CLUTCH TYPE, 340 SERIES, REAR UNIT Rear Frame & Driving Mechanisms

ATTACHMENT, independent power take-off (540 R.P.M., clutch type) (373704R92) (for tractors equipped with independent power take- off drive or torque amplifier) for tractors equipped with, fixed drawbar order, (2) nut 220081, (1) plate 66426D, (2) screw 271614, (2) washer 103326, fast-hitch order, (2) nut 220081, (1) plate 363445R1, Farmall 340 series, (1) plate 364013R2, International 340 series, (2) screw 271614, (2) washer 103326

1шт.

ATTACHMENT, independent power take-off (540 R.P.M., clutch type) 377742R92) (for tractors equipped with independent power take-off drive or torque amplifier) (International 340 series grove tractors)

1шт.

1

364472R91

SEAL

OIL SEAL, output shaft

1шт.

2

373556R11

RETAINER ASSEMBLY, output shaft bearing

1шт.

SCREW, 5/16 x 7/8" hex-hd. cap

3шт.

3

373557R1

GASKET

output shaft bearing retainer

1шт.

4

359894R1

RING, SNAP

RING, output shaft bearing snap

2шт.

5

ST342

BEARING, BALL,45mm ID x 85mm OD x 19mm W

BALL BEARING, output shaft

1шт.

6

373548R21

COVER ASSEMBLY, housing (composed of, (1) cover 373548R2, (1) oil seal 373946R91, (4) pin 141231, (1) o-ring 307915R1, (1) plug 9410364, (1) plug 103378, (1) plug 362356R3, (1) plug 373533R1)

1шт.

PLUG, 1/4" sq-hd. stl. pipe

1шт.

SCREW, 5/16 x 7/8" hex-hd. cap

2шт.

SCREW, 1/2 x 7-1/4" hex-hd. cap

4шт.

307915R1

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

housing cover plug

1шт.

9410364

PLUG

housing cover

1шт.

7

373553R1

PLUG,Cup, 7/8"

housing cover

1шт.

8

364712R12

SHIELD

ASSEMBLY, safety

1шт.

364713R1

AXLE PIN

BOLT, safety shield

3шт.

9

60836H

BREATHER

housing (order bushing 112877 and plug, 110891H)

1шт.

10

141231

WASHER

PIN, 5/16 x 2" dowel

4шт.

11

373560R1

SPRING

brake plate

4шт.

12

373561R2

FORK

clutch

1шт.

13

373545R11

PLATE

ASSEMBLY, anti-creep brake

1шт.

14

373559R1

FACING

anti-creep brake

1шт.

RIVET, 9/64 x 3/8" ov-hd tubular

8шт.

15

300328R1

O-RING,0.139" Thk x 7.984" ID, -266, Cl 5, 75 Duro

housing cover (8 x 8-1/4 x 1/8")

1шт.

16

373546R1

SHAFT

output

1шт.

17

362356R3

PLUG, housing cover

1шт.

18

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

KEY, no. A woodruff, aly-stl (1/4 x 7/8") (used only with shaft, 373562R1)

3шт.

18

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

(Used only with shaft, 373562R2) #15, 1/4" x 1", HT

3шт.

19

373562R2

SHAFT

clutch fork cross (for service replacement of shaft, 373562R1, also order three keys, 124553)

1шт.

443246

GROOVED PIN,3/16" x 3/4", Type D

Pin, Grooved, 3/16" x 3/4", Type D

1шт.

20

373946R91

PACKING RING

OIL SEAL, clutch fork cross shaft

1шт.

21

376824R92

CLUTCH ASSEMBLY, rear unit

1шт.

22

374046R1

RING

external snap

1шт.

23

374044R1

RING

internal snap

1шт.

24

374041R1

RACE

RACE, needle bearing

2шт.

25

374011R91

THRUST BEARING

needle thrust

1шт.

26

374038R92

BEARING ASSY,1.848" ID x 1.5626"

ASSEMBLY, release sleeve bearing

1шт.

27

374037R92

RELEASE SLEEVE AND SPIDER ASSEMBLY

1шт.

28

374039R1

RING

ACTUATOR, mechanism linkage

1шт.

29

374049R1

RING

mechanism linkage actuator snap

1шт.

30

374048R1

PIN

actuating lever

3шт.

31

374040R91

LEVER

ASSEMBLY, actuating (set of three)

1шт.

32

255529R1

SCRAPER RING

RING, actuating lever pin retaining

3шт.

446178

WASHER,#12

1/4 x 1/2 x .049 ga.

3шт.

33

374051R1

PIN

knurled spider

3шт.

34

374050R2

SPIDER ASSY.

SPIDER, adjustment

1шт.

35

374036R2

PIN

lock

1шт.

36

374035R1

SPRING

lock

1шт.

37

374027R2

BODY, clutch

1шт.

38

374034R1

DISC

PLATE, pressure

1шт.

39

376825R91

DISC

ASSEMBLY, outer

6шт.

40

374033R1

DISC

clutch inner

5шт.

41

374028R1

RING

external snap

2шт.

42

374029R1

LARGE PLATE

PLATE, pressure

1шт.

43

374030R1

RING

pressure plate snap

1шт.

44

374031R1

WASHER, Belleville spring

2шт.

46

373558R1

RING

clutch retainer snap

1шт.

47

373750R91

BEARING

output shaft roller

1шт.

48

373547R11

SHAFT ASSEMBLY, input

1шт.

49

ST560

BEARING, BALL,45 mm ID x 75 mm OD x 16 mm

BALL BEARING, input shaft

1шт.

50

359894R1

RING, SNAP

RING, input shaft bearing snap

1шт.

51

220304R91

NEEDLE BEARING

BEARING, input shaft roller

1шт.

52

373549R21

HOUSING ASSEMBLY, independent power take-off

1шт.

53

364472R91

SEAL

OIL SEAL, input shaft

1шт.

54

373554R1

HEX SOC SCREW,1/4" - 20 x 5/8"

SCREW, independent power take-off housing

2шт.

55

300328R1

O-RING,0.139" Thk x 7.984" ID, -266, Cl 5, 75 Duro

independent power take-off adapter (8 x 8-1/4 x 1/8")

2шт.

56

360742R2

ADAPTER, independent power take-off

1шт.

57

360168R1

COUPLING,12T

shaft

2шт.

58

360167R11

SHAFT ASSEMBLY, coupling

1шт.

59

110891H

BREATHER,1/8"-27 NPT, Short, w/washer

PLUG, vent

1шт.

112877

ADAPTER,1/4" NPT Male x 1/8" NPT Fem

BUSHING, 1/4 x 1/8" reducing pipe

1шт.

378268R1

TOOL

clutch adjusting

1шт.
