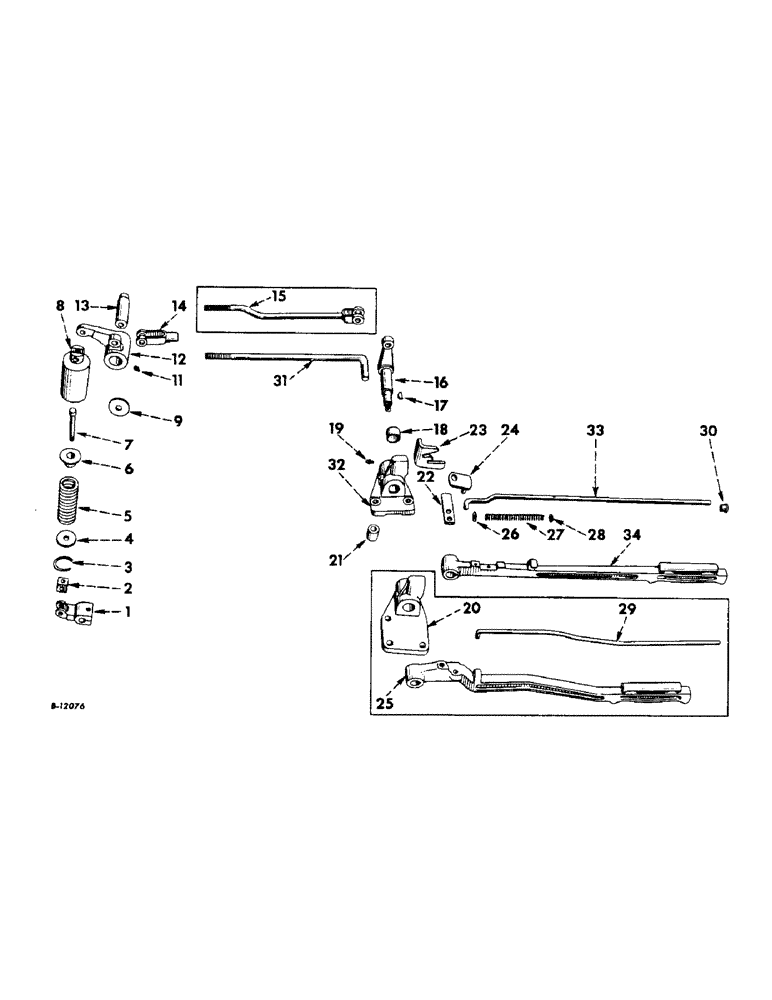

Запчасти Case IH 340 (136) - REAR FRAME & DRIVING MECHANISMS, IND. POWER TAKE-OFF, PLANETARY TYPE, OPERATING HANDLE & CONNECTIONS Rear Frame & Driving Mechanisms

1

363296R1

LEVER, primary brake band operating

1шт.

NUT, 7/16 NF

1шт.

PIN, 3/32 x 3/4" cotter

1шт.

359100R1

PIN, primary band operating lever

1шт.

SCREW, 7/16 NF x 2" hex-hd. cap

1шт.

WASHER, 7/16" lock

1шт.

2

359097R1

BLOCK, bottom spring anchor

1шт.

3

359096R1

SNAP RING, spring sleeve

1шт.

4

359095R1

PLATE, spring retainer

1шт.

5

359094R2

SPRING, brake band actuator

1шт.

6

359093R11

PLUG W/PIN ASSEMBLY, spring retainer

1шт.

17071R1

PIN, 1/8 x 5/16" roll

1шт.

7

359092R1

BOLT

spring anchor

1шт.

8

359091R11

SLEEVE ASSEMBLY, spring

1шт.

PIN, 3/32 x 3/4" cotter

1шт.

359100R1

PIN, primary brake band operating lever

1шт.

9

364416R1

WASHER, bellcrank retainer

1шт.

SCREW, 3/8 x 4-3/8" hex-hd. cap

1шт.

WASHER, 3/8" lock

1шт.

11

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16" straight drive lubrication (optional with 273354)

1шт.

11

273354

SHEAVE

FITTING, 3/16" straight drive lubrication (optional with 443566)

1шт.

12

363297R2

BELLCRANK, power take-off operating

1шт.

13

363299R1

SHAFT, bellcrank pivot

1шт.

14

104039

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS, 1/2" adjustable rod end (power take-off control rod)

1шт.

NUT, 1/2 NF jam

1шт.

PIN, 1/8 x 3/4" cotter

1шт.

103498

CLEVIS PIN,1/2" x 1.360"

PIN, 1/2" rod end

1шт.

15

363300R11

ROD ASSEMBLY, power take-off control International 330

1шт.

PIN, 1/8 x 3/4" cotter

1шт.

103498

CLEVIS PIN,1/2" x 1.360"

PIN, 1/2" rod end

1шт.

16

363301R11

LEVER

AND SHAFT ASSEMBLY, control handle operating

1шт.

17

124547

WOODRUFF KEY,#7, 1/8" x 3/4", HT

1шт.

18

363304R1

BUSHING

control rod mounting bracket

2шт.

19

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16" straight drive type lubrication (optional with 273354)

1шт.

19

273354

SHEAVE

FITTING, 3/16" straight drive type lubrication (optional with 443566)

1шт.

20

363303R11

BRACKET W/TWO BUSHINGS, 363304R1 and fitting, 443566 assembly, operating handle mounting International 330

1шт.

SCREW, 1/2 x 1-1/2" hex-hd. cap (for tractors equipped with fast-hitch), 1/2 x 2-1/2" (for tractors equipped with fixed drawbar)

3шт.

WASHER, 1/2" lock

1шт.

21

373520R1

SPACER, operating handle mounting bracket long (1-1/4" long)

1шт.

21

72691R1

SPACER, operating handle mounting bracket short (1-1/32" long)

1шт.

22

363305R1

PAWL, operating handle International 330

1шт.

22

370360R1

PAWL, operating handle 340 series

1шт.

23

363403R1

QUADRANT, operating handle International 330

1шт.

23

370362R1

QUADRANT, operating handle 340 series

1шт.

SCREW, 3/8 x 7/8" hex-hd. cap

2шт.

WASHER, 3/8" lock

2шт.

24

363306R11

BRACKET ASSEMBLY, pawl pivot International 330

1шт.

24

370361R11

BRACKET ASSEMBLY, pawl pivot 340 series

1шт.

SCREW, 5/16 x 3/4" hex-hd. cap

1шт.

WASHER, 5/16" lock

1шт.

25

363294R11

HANDLE ASSEMBLY, operating International 330

1шт.

NUT, 1/2 NF

1шт.

WASHER, 1/2" lock

1шт.

26

Q243

WASHER

21/64 x 3/4" x 16 ga.

1шт.

27

359109R2

VALVE SPRING

SPRING, pawl operating rod

1шт.

28

131402H

WASHER

11/32 x 9/16" x 16 ga.

2шт.

PIN, 3/32 x 5/8" cotter

1шт.

29

363295R2

ROD, pawl operating International 330

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

30

359108R2

KNOB

pawl operating rod

1шт.

31

370358R1

ROD, power take-off control 340 series

1шт.

32

370359R11

BRACKET, w/two bushings, 363304R1 assembly, operating handle mounting 340 series

1шт.

SCREW, 1/2 x 2-1/2" hex-hd. cap

2шт.

33

370357R1

ROD, pawl operating 340 series

1шт.

PIN, 3/32 x 5/8" cotter

2шт.

34

370356R11

HANDLE ASSEMBLY, operating 340 series

1шт.

NUT, 1/2 NF

1шт.

WASHER, 1/2" lock

1шт.

366614R1

LOCK, hydra-touch control valve lever (see note A) International 330

1шт.

SCREW, 3/8 x 1" hex-hd. cap

1шт.

Q1504

WASHER

13/32 x 7/8" x 16 ga.

1шт.

Q5035

WASHER

17/32 x 1" x 16 ga.

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

(For tractors equipped with fast-hitch) (Fender attaching screws) International 330 Hex, 1/2"-13 x 1 1/2", G5, Full Thd

8шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

SCREW, 1/2 x 2-1/2" hex-hd. cap (for tractors equipped with fixed drawbar) (fender attaching screws) International 330

8шт.

18279D

SPACER, fender (1/2" long) (for tractors equipped with fast- hitch) (illustrated with fenders, platforms and toolbox) International 330

6шт.

363830R1

SPACER,1/2" X-Strng Pipe x 1 1/2"

fender (1-1/2" long) (for tractors equipped with fixed drawbar) (illustrated with fenders, platforms and toolbox) International 330

6шт.

366612R1

SPACER, hydra-touch control valve lever lock (see note A) International 330

1шт.

366613R1

SPRING

hydra-touch control valve lever lock (see note A) International 330

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (On fender attaching screws) International 330 1/2"

8шт.
