Запчасти Case IH 340 (134) - REAR FRAME AND DRIVING MECHANISMS, INDEPENDENT POWER TAKE-OFF, PLANETARY TYPE Rear Frame & Driving Mechanisms

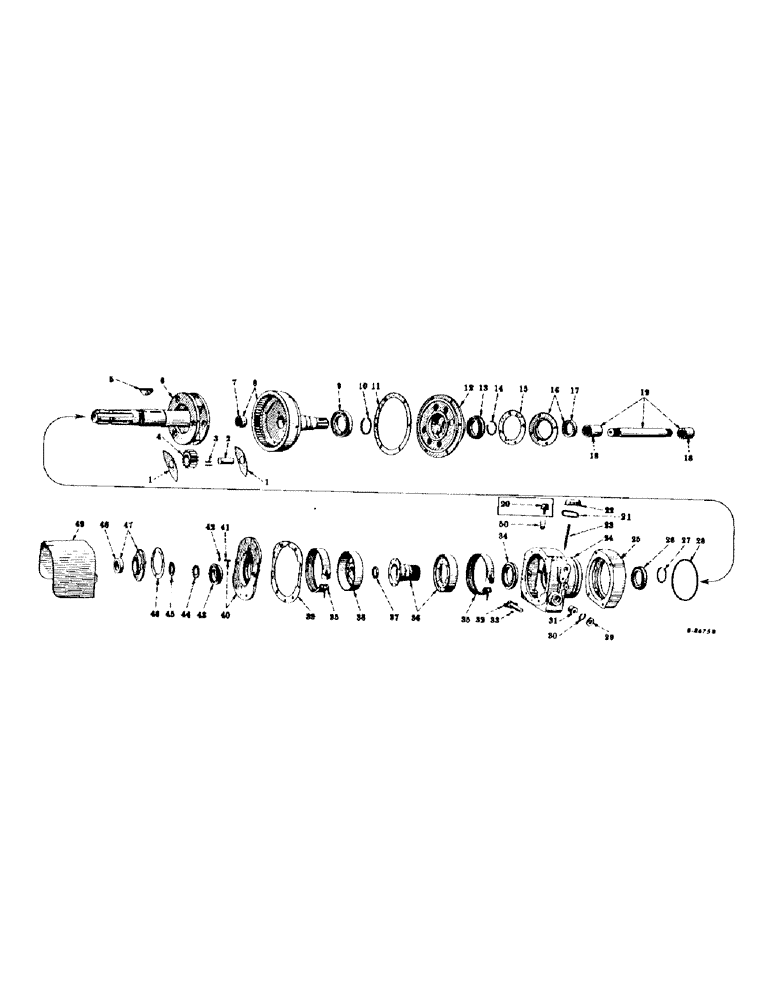

Схема запчастей Case IH 340 - (134) - REAR FRAME AND DRIVING MECHANISMS, INDEPENDENT POWER TAKE-OFF, PLANETARY TYPE Rear Frame & Driving Mechanisms
26
35
16
47
33
2
20
18
45
4
5
13
15
31
40
14
34
24
49
35
50
48
3
6
25
22
7
23
10
48
35
28
34
17
30
18
1
38
44
6
29
12
11
21
1
9
37
46
41
43
37
19
27

Артикул

Название

Примечание

Количество

ATTACHMENT, Independent power take-off (370350R91) (with provision for mounting belt pulley) (For tractors equipped with independent power take-off drive, or torque amplifier with independent power take-off drive

1шт.

For tractors equipped with fixed drawbar order, (2) nut 220081, (1) plate 66426D, (2) screw 271614, (2) washer 103326, fast hitch order (2) nut 220081, (1) plate 364013R2, (International 330 and 440), (1) plate 363445R1 (Farmall 340), (2) screw 271614, (2) washer 103326

1шт.

1

360160R2

THRUST WASHER

planet gear thrust

6шт.

2

360161R1

PIN,15.88mm OD x 38.1mm L

SHAFT, planet gear

3шт.

17141R1

LOCK PIN,5/32" x 1", Slotted

Pin, 5/32" x 1", Slotted

3шт.

3

360526R91

BEARING, NEEDLE

SET, planet gear rollers (consists of 72 rollers)

1шт.

4

360159R1

GEAR

planet (15 teeth)

3шт.

5

360174R1

KEY

creeper brake drum

1шт.

6

360158R1

CARRIER

planet and rear shaft

1шт.

7

360140R91

BEARING, NEEDLE

BEARING, drive shaft needle

1шт.

8

360166R11

GEAR AND SHAFT ASSEMBLY, drive

1шт.

9

ST560

BEARING, BALL,45 mm ID x 75 mm OD x 16 mm

BALL BEARING, drive shaft rear

1шт.

10

359894R1

RING, SNAP

SNAP RING, drive shaft rear bearing

1шт.

11

360163R1

GASKET

drive shaft bearing cage

1шт.

12

360162R1

CAGE, drive shaft bearing

1шт.

SCREW, 5/16 x 7/8" hex-hd. cap

6шт.

WASHER, 5/16" lock

6шт.

13

ST559

BALL BEARING,40 mm ID x 68 mm OD x 15 mm

drive shaft front

1шт.

14

360164R1

RING

SNAP RING, drive shaft front bearing

1шт.

15

360156R1

GASKET

front bearing retainer

1шт.

16

360157R11

RETAINER ASSEMBLY, front bearing

1шт.

SCREW, 5/16 x 7/8" hex-hd. cap

4шт.

WASHER, 5/16" lock

4шт.

17

359449R91

OIL RESERVOIR

OIL SEAL, front bearing retainer

1шт.

18

360168R1

COUPLING,12T

shaft

2шт.

19

360167R11

SHAFT ASSEMBLY, coupling

1шт.

20

60836H

BREATHER

housing (order bushing, 112877 and plug, 110891H)

1шт.

21

360179R1

GASKET

anchor bolt cover

1шт.

22

360180R1

COVER, anchor bolt

1шт.

SCREW, 1/4 x 1-1/4" slt-rd-hd. mach.

1шт.

23

360175R1

BOLT,1/2" - 13 x 4 5/8"

brake band anchor

2шт.

NUT, 1/2" jam

2шт.

24

360151R11

HOUSING ASSEMBLY, (composed of, (1) bushing 359305R1, (1) housing 360151R1 (NSS), (1) oil seal 360137R91, (2) plug 103874, (1) ring 359306R1)

1шт.

103874

VALVE SPRING

PLUG, 1/2" CI sq. socket pipe (optional with 116566 and 362356R3)

2шт.

116566

PLUG

1/2" CI sq. socket pipe (optional with 103874 and 362356R3)

2шт.

362356R3

PLUG, 1/2-14 stl. sq. socket pipe (optional with 103874 and 116566)

2шт.

SCREW, 1/2 x 8" hex-hd. cap

4шт.

WASHER, 1/2" lock

4шт.

25

360742R2

ADAPTER, independent power take-off

1шт.

26

ST564

BALL BEARING,66.67mm ID x 104.76mm OD x 17.46mm W

sun gear brake shaft front

1шт.

27

360171R1

SNAP RING,M66.67 x 3.23mm Thk, Ext

SNAP RING, sun gear and brake shaft front

1шт.

28

358842R1

RING

O-RING, housing (7-1/8 x 7-17/32 x 13/64")

1шт.

29

71599C91

OIL SEAL

OIL SEAL, brake band actuating lever

1шт.

30

359306R1

RING

SNAP RING, band actuating lever bushing

1шт.

31

359305R1

BUSHING

band actuating lever

1шт.

32

359098R1

LEVER

secondary brake band operating

1шт.

33

124547

WOODRUFF KEY,#7, 1/8" x 3/4", HT

Primary operating lever #7, 1/8" x 3/4", HT

1шт.

34

ST563

BALL BEARING,75 mm ID x 115 mm OD x 20 mm

sun gear brake shaft rear

1шт.

35

359059R91

BAND

W/THREE LININGS, brake (optional with 373304R91)

2шт.

35

373304R91

BRAKE

BAND W/LINING ASSEMBLY, brake (optional with 359059R91)

1шт.

36

360169R11

GEAR AND DRUM ASSEMBLY, sun and reactor brake shaft (24 teeth)

1шт.

37

360173R1

WASHER

SPACER, creeper brake drum

1шт.

38

360172R1

DRUM

creeper brake (optional with 363906R1)

1шт.

38

363906R1

DRUM

creeper brake (optional with 360172R1)

1шт.

39

360154R1

GASKET

housing cover

1шт.

40

360153R11

COVER W/THREE STUDS ASSEMBLY, housing

1шт.

40

364708R2

COVER, housing

1шт.

SCREW, 3/8 x 1-1/8" hex-hd. cap

6шт.

WASHER, 3/8" lock

6шт.

41

359049R1

STUD, housing cover (see note A)

3шт.

42

359119R1

NUT, safety shield (see note A)

3шт.

43

ST239

BALL BEARING,40 mm ID x 80 mm OD x 18 mm

rear shaft

1шт.

44

359081R1

WASHER,38.89mm ID x 61.91mm OD x 1.52mm Thk

PLATE, rear shaft rear bearing nut lock

1шт.

45

359082R1

NUT

rear shaft rear bearing

1шт.

46

359054R2

GASKET

rear shaft bearing retainer

1шт.

47

360155R12

HUB

RETAINER ASSEMBLY, rear shaft bearing

1шт.

SCREW, 3/8 x 7/8" hex-hd. cap

3шт.

WASHER, 3/8" lock

3шт.

48

364472R91

SEAL

OIL SEAL, rear shaft bearing

1шт.

49

360181R92

SHIELD ASSEMBLY, safety (see note A)

1шт.

49

364712R12

SHIELD

ASSEMBLY, safety (see note B)

1шт.

364713R1

AXLE PIN

BOLT, safety shield (see note B)

3шт.

50

110891H

BREATHER,1/8"-27 NPT, Short, w/washer

PLUG, vent

1шт.

112877

ADAPTER,1/4" NPT Male x 1/8" NPT Fem

BUSHING, 1/4 x 1/8" reducing pipe

1шт.

Выбрано товаров: 74
