Запчасти Case IH 340 (132) - REAR FRAME AND DRIVING MECHANISMS, POWER TAKE-OFF DRIVE Rear Frame & Driving Mechanisms

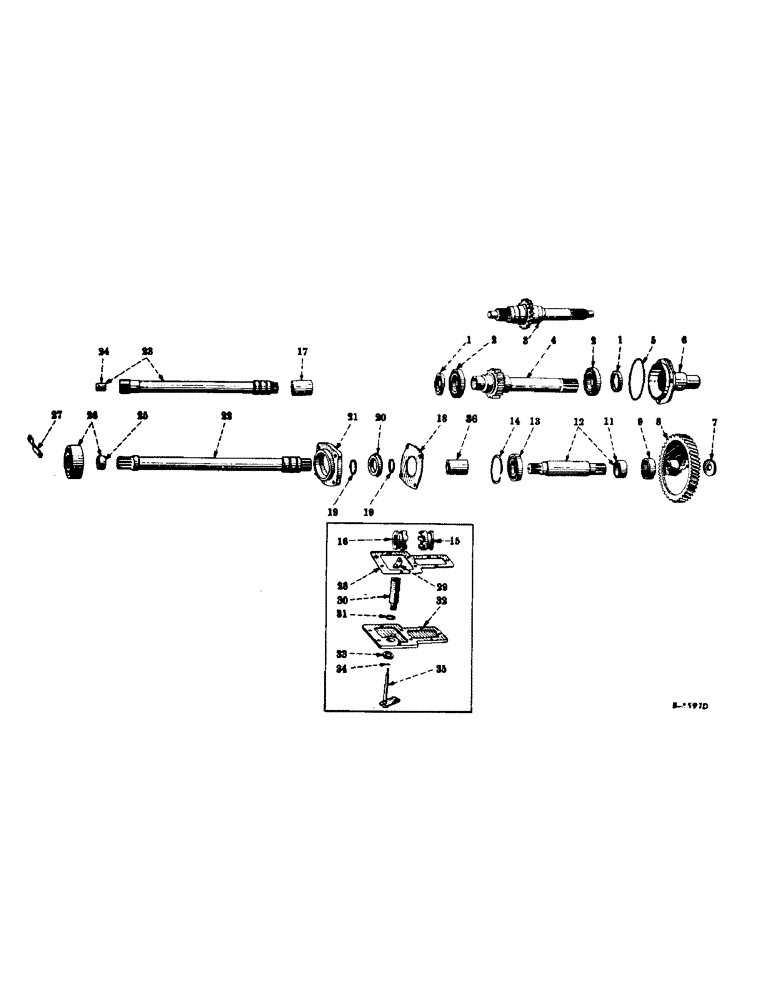

Схема запчастей Case IH 340 - (132) - REAR FRAME AND DRIVING MECHANISMS, POWER TAKE-OFF DRIVE Rear Frame & Driving Mechanisms
14
38
2
23
19
12
1
21
35
16
3
20
9
11
28
8
33
17
18
15
1
30
34
23
6
25
32
27
5
28
18
7
34
29
2
13
4
31

Артикул

Название

Примечание

Количество

1

362119R93

SEAL

OIL SEAL, power take-off drive gear

2шт.

2

ST202

BEARING, BALL,45mm ID x 85mm OD x 19mm W

BALL BEARING, power take-off drive shaft

2шт.

3

363475R21

GEAR AND SHAFT W/COUPLING, 364432R91 assembly, torque amplifier drive (19 teeth) (unit B)

1шт.

4

362619R1

SHAFT

independent power take-off drive (25 teeth) (unit A) (see note C)

1шт.

4

373666R1

SHAFT

independent power take-off drive (24 teeth) (see note D)

1шт.

5

358239R1

RING

O-RING, power take-off drive shaft bearing cage (4-1/8 x 4-3/8 x 1/8") (International 330)

1шт.

5

252556R1

O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro

power take-off drive shaft bearing cage (5-1/4 x 5-1/2 x 1/8") (340 series)

1шт.

6

360657R22

CAGE W/OIL SEAL, 362119R93, assembly, power take-off drive shaft bearing (International 330)

1шт.

SCREW, 3/8 x 1" hex-hd. cap

3шт.

6

370598R11

CAGE W/OIL SEAL, 362119R93, assembly, power take-off drive shaft bearing (340 series except grove tractors)

1шт.

SCREW, 3/8 x 1" hex-hd. cap

4шт.

6

377587R11

CAGE W/OIL SEAL, 362119R93 assembly, power take-off drive shaft (International 340 series grove)

1шт.

7

359972R1

WASHER

power take-off driven gear retainer (17/32" ID x 2" OD x 1/4") (International 330)

1шт.

SCREW, 1/2 NF x 1-1/8" hex-hd. cap

1шт.

WASHER, 1/2" lock

1шт.

7

371247R1

WASHER

power take-off driven gear retainer (17/32" ID x 2-1/8" OD x 11 ga.) (International 330 w/package, 371254R91 and all 340 series)

1шт.

SCREW, 1/2 NF x 1" hex-hd. cap

1шт.

8

363474R1

GEAR, power take-off driven (62 teeth) (unit B)

1шт.

8

362620R1

GEAR

power take-off driven (56 teeth) (unit A) order 371254R91) (International 330)

1шт.

8

371913R1

GEAR

power take-off driven (56 teeth), helical (unit A) (International 330 w/package, 371254R91 and all 340 series) (see note C)

1шт.

8

373667R1

GEAR

power take-off driven (79 teeth) (see note D)

1шт.

9

360665R91

NEEDLE BEARING,Needle, 44.44mm ID x 53.99mm OD x 25.4mm W

power take-off driven shaft inner needle

1шт.

11

360664R1

RACE

power take-off driven shaft front inner bearing

1шт.

12

371912R11

SHAFT

ASSEMBLY, power take-off driven front

1шт.

13

ST215

BEARING, BALL,40 mm ID x 80 mm OD x 18 mm

BALL BEARING, power take-off driven shaft rear

1шт.

14

359138R1

RING

SNAP RING, power take-off driven shaft rear bearing

1шт.

15

359139R2

HUB, seasonal disconnect coupling (unit A) (see note A)

1шт.

553050R1

LOCK PIN,1/4" x 1 3/4", Slotted

Pin, 1/4" x 1 3/4", Slotted

1шт.

16

359140R2

SLEEVE, seasonal disconnect coupling (unit A) (see note A)

1шт.

17

359912R2

COUPLING

power take-off driven shaft (unit B)

1шт.

553050R1

LOCK PIN,1/4" x 1 3/4", Slotted

Pin, 1/4" x 1 3/4", Slotted

1шт.

18

359142R1

RETAINER, power take-off extension shaft front bearing

1шт.

SCREW, 3/8 x 1-5/8" hex-hd. cap

4шт.

WASHER, 3/8" lock

4шт.

19

359141R1

RING, SNAP

SNAP RING, power take-off extension shaft front bearing

2шт.

20

ST569

BALL BEARING,35 mm ID x 62 mm OD x 14 mm

power take-off extension shaft front

1шт.

21

359143R2

CAGE, power take-off extension shaft front bearing

1шт.

22

360748R1

SHAFT, independent power take-off extension (unit A)

1шт.

23

360668R11

SHAFT ASSEMBLY, power take-off extension (unit B)

1шт.

24

43328D

BUSHING,22.67mm ID x 26.36mm OD x 33.27mm L

BUSHING, power take-off shaft

1шт.

25

359145R1

BUSHING

extension shaft rear bearing (1.313 x 1.437 x .740" long) (unit A)

1шт.

25

359915R1

BUSHING, extension shaft rear bearing (1.501 x 1.625 x .740" long) (unit B)

1шт.

26

360749R11

CARRIER ASSEMBLY, independent power take-off extension shaft rear bearing (unit A) International 330

1шт.

26

370368R11

CARRIER ASSEMBLY, power take-off extension shaft rear bearing (unit A) (see note B) 340 series

1шт.

27

360670R1

STRAP, power take-off extension shaft rear bearing

1шт.

SCREW, 3/8 x 3/4" hex-hd. cap

1шт.

WASHER, 3/8 lock

1шт.

28

360667R3

GASKET

seasonal disconnect (unit A) (see note A)

1шт.

29

359154R11

BAR

ARM ASSEMBLY, seasonal disconnect coupling shifter (see note A)

1шт.

30

359150R1

BEARING, seasonal disconnect coupling shifter shaft (unit A) (see note A)

1шт.

WASHER, 7/8" external tooth lock

1шт.

31

359157R1

RING

O-RING, shifter bearing (7/8 x 1-1/8 x 1/8") (unit A) (see note A)

1шт.

32

360870R1

COVER, seasonal disconnect (unit A) (see note A)

1шт.

SCREW, 3/8 x 1" hex-hd. cap

9шт.

33

359151R1

NUT, seasonal disconnect shifter shaft bearing lock (unit A) (see note A)

1шт.

34

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, Seasonal disconnect lever shaft (unit A) (see note A)

1шт.

35

359152R11

BAR

LEVER AND SHAFT ASSEMBLY, seasonal disconnect coupling shifter (unit A) (see note A)

1шт.

NUT, 7/16 NF hex.

1шт.

SCREW, 3/8 x 3/4" hex-hd. cap

1шт.

WASHER, 3/8" lock

1шт.

WASHER, 7/16" lock

1шт.

36

359912R1

COUPLING

independent power take-off drive shaft front (unit A)

1шт.

553050R1

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, 1/4 x 3/4" roll

1шт.

371254R91

PACKAGE,SERVICE

PACKAGE, power take-off driven gear and washer service (consists of gear, 371913R1, screw, 181427 and washer, 371247R1) (unit A)

1шт.

Выбрано товаров: 64
