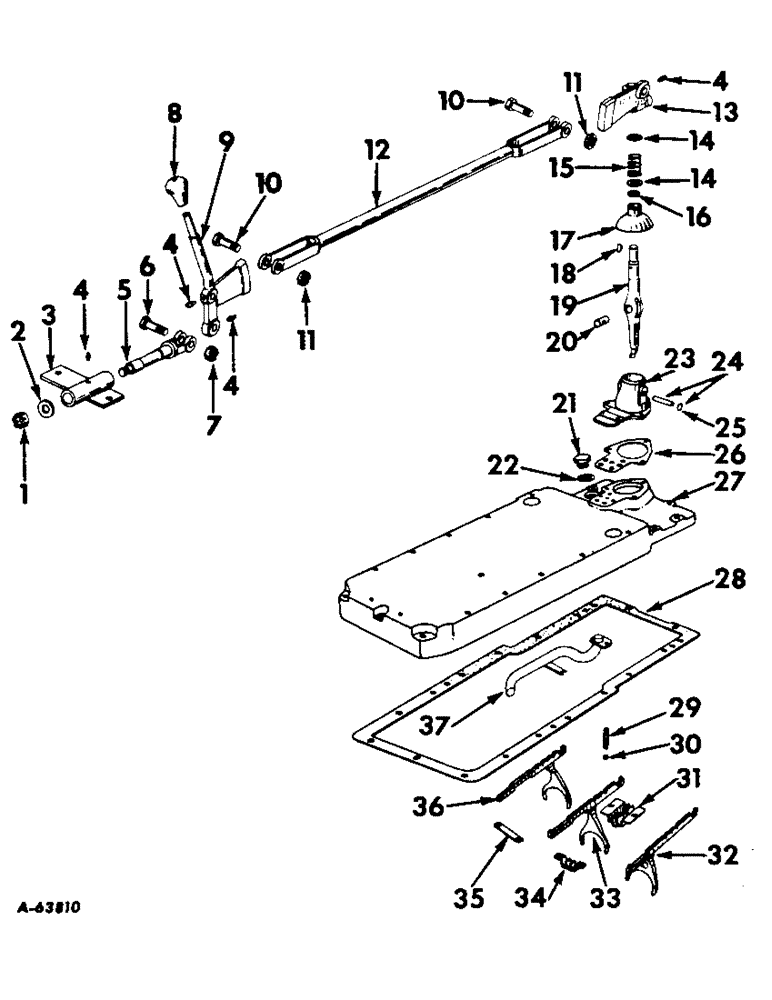

Запчасти Case IH 340 (128) - REAR FRAME AND DRIVING MECHANISMS, GEAR SHIFT MECHANISM & REAR FRMAE COVER, INTERNATIONAL 340 SERIES Rear Frame & Driving Mechanisms

1

70119D

NUT

gear shift lever pivot shaft

1шт.

2

10657D

WASHER, gear shift lever pivot shaft

1шт.

3

377379R91

BRACKET ASSEMBLY, pivot shaft 3/8 x 7/8" cap screw

2шт.

4

273354

SHEAVE

FITTING, 3/16" straight drive type lubrication (optional with 443566)

4шт.

4

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16" straight drive type lubrication (optional with 273354)

4шт.

5

350468R1

SHAFT, gear shift lever pivot

1шт.

PIN, 1/8 x 1" cotter

1шт.

6

350469R1

BOLT, gear shift lever

1шт.

PIN, 1/8 x 1" cotter

2шт.

7

70119D

NUT

gear shift lever

1шт.

8

53717DA

BUTTON

KNOB, gear shift lever

1шт.

9

377378R11

LEVER ASSEMBLY, gear shift

1шт.

10

350469R1

BOLT, gear shift connecting link

2шт.

PIN, 1/8 x 1" cotter

2шт.

11

70119D

NUT

gear shift connecting link bolt

2шт.

12

377382R91

LINK ASSEMBLY, gear shift connecting

1шт.

13

378343R1

EXTENSION, gear shift lever

1шт.

SCREW, 7/16 x 1-1/2" cap

1шт.

WASHER, 7/16" lock

1шт.

14

557270R1

WASHER

29/32 x 1-1/4" x 11 ga. (gear shift lever spring stop)

2шт.

15

29547D

SPRING

gear shift lever

1шт.

16

375355R1

O-RING,0.869" ID x 0.66" Width

RING, gear shift lever sealing

1шт.

17

255889R3

SHIELD, gear shift lever swivel housing

1шт.

18

124549

WOODRUFF KEY,#9, 3/16" x 3/4", HT

1шт.

19

377384R1

LEVER, gear shift

1шт.

PIN, 3/16 x 1-1/4" cotter

1шт.

20

256918R11

DOWEL

SHAFT W/TWO PLUG, 172529 assembly, gear shift swivel large

1шт.

21

9410363

PLUG

return line front

1шт.

22

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

return line front plug (1-11/64 x 1-13/32 x 7/64")

1шт.

23

361672R31

HOUSING W/TWO PLUG, 172529 assembly, gear shift swivel

1шт.

SCREW, 3/8 x 1" cap

5шт.

WASHER, 3/8" lock

5шт.

24

256919R11

HITCH PIN

SHAFT W/TWO PLUG, 172529, gear shift swivel small

1шт.

25

172529

PLUG

5/8" dia. expansion

2шт.

26

361673R1

GASKET

gear shift swivel housing

1шт.

27

377377R11

COVER W/PLUGS ASSEMBLY, rear frame 1-1/4" C.I. sq socket pipe plug

1шт.

SCREW, 7/16 x 2" cap

4шт.

SCREW, 7/16 x 2-3/4" cap

2шт.

SCREW, 7/16 x 3-1/2" cap

6шт.

SCREW, 1/2 x 2-7/8" cap

3шт.

SCREW, 1/2 x 2-7/8" cap

3шт.

WASHER, 7/16" lock

8шт.

WASHER, 1/2" lock

3шт.

28

360556R2

GASKET

rear frame cover

1шт.

29

41058DA

SPRING

shift rail poppet

4шт.

30

D2616

BALL

1/2" chrome stl (shift rail poppet) (optional with 13722D)

4шт.

30

13722D

BALL

1/2" chrome stl (shift rail poppet) (optional with D2616)

4шт.

31

361663R91

GUIDE ASSEMBLY, gear shift rail front

1шт.

59473DA

LOCK

gear shift rail guide attaching screw

2шт.

SCREW, 3/8 x 3/4" cap

2шт.

32

368891R11

FORK

AND RAIL ASSEMBLY, first and reverse speed shifter

1шт.

33

368892R11

FORK

AND RAIL ASSEMBLY, second and third speed shifter

1шт.

34

361666R91

GUIDE ASSEMBLY, gear shift rail rear

1шт.

59473DA

LOCK

gear shift rail guide attaching screw

2шт.

SCREW, 3/8 x 3/4" cap

2шт.

35

48391D

PLATE, gear shift rail stop

1шт.

36

368893R11

RAIL ASSY.

FORK AND RAIL ASSEMBLY, fourth and fifth speed shifter

1шт.

37

375563R11

TUBE ASSEMBLY, oil return

1шт.

SCREW, 5/16 x 3/4" cap

1шт.
