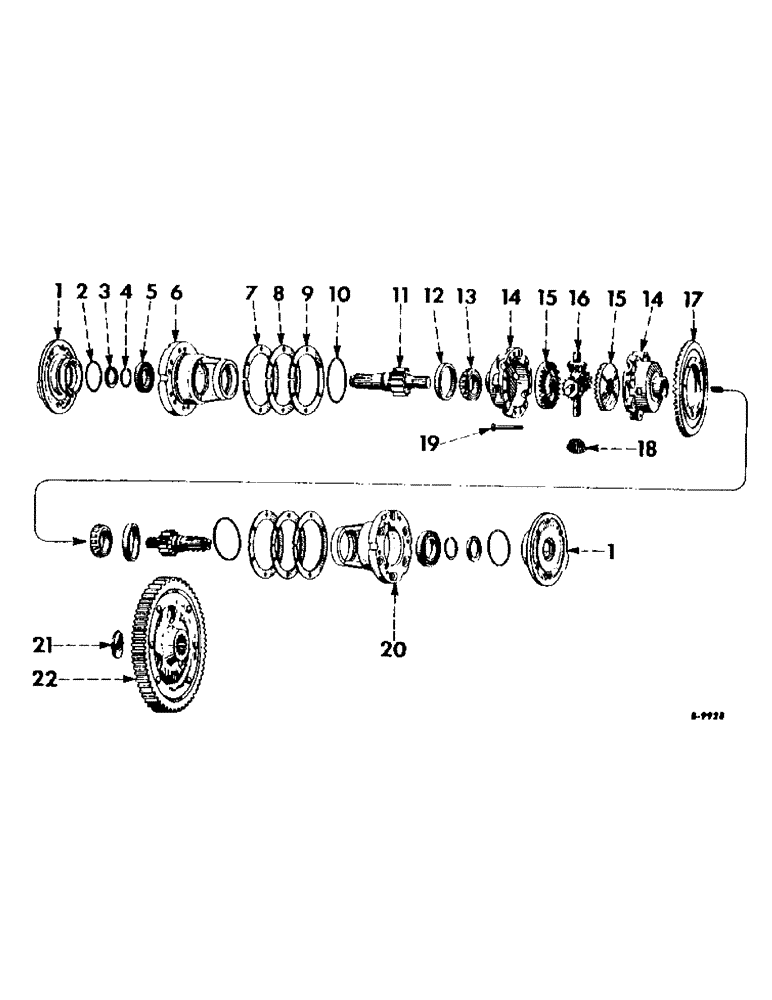

Запчасти Case IH 340 (124) - REAR FRAME AND DRIVING MECHANISMS, DIFFERENTIAL, CARBURETED ENGINE TRACTORS Rear Frame & Driving Mechanisms

1

368446R11

RETAINER W/OIL SEAL, 378157R91 assembly, bull pinion shaft bearing

2шт.

2

358101R1

O-RING,0.551" ID x 0.07" Width

O-RING, bull pinion shaft bearing retainer (3-23/32 x 4-5/32 x 7/32")

2шт.

3

378157R91

OIL RESERVOIR

OIL SEAL, bull pinion shaft bearing retainer

2шт.

4

358059R1

SNAP RING

bull pinion and brake shaft

2шт.

5

ST279

BALL BEARING

bull pinion and brake shaft

2шт.

6

377343R1

CAGE, bull pinion shaft LH bearing (grove tractors)

1шт.

6

368441R1

CAGE, bull pinion shaft LH bearing

1шт.

357034R1

BOLT

SCREW, bull pinion shaft bearing cage cap

1шт.

7

376541R1

SHIM

bull pinion shaft cage extra light (340 series only)

1шт.

7

47847D

SHIM, bull pinion shaft bearing cage light

1шт.

8

47848D

SHIM, bull pinion shaft bearing cage medium

2шт.

9

47849D

SHIM

bull pinion shaft bearing cage heavy

2шт.

10

4222D

SEAL

O-RING, bull pinion shaft bearing cage (5-1/16 x 5-17/32 x 15/64")

2шт.

11

368440R3

SHAFT, bull pinion and brake (12 teeth)

2шт.

12

ST874A

TAPERED BEARING,90.03mm OD x 16mm W

CUP, differential case bearing

2шт.

13

ST775A

ROLLER BEARING,2.0005" ID x 3.5010" OD x 0.8265"

CONE, differential case bearing

2шт.

14

368436R92

CASE ASSEMBLY, differential (2 halves)

1шт.

15

351631R2

PINION

GEAR, differential bevel (24 teeth)

2шт.

16

356589R1

SPIDER, differential

1шт.

17

369228R1

GEAR, differential drive bevel (49 teeth) Farmall 340

1шт.

17

368438R1

GEAR, differential drive bevel (49 teeth) International 330 and 340

1шт.

18

351630R2

GEAR

PINION, differential (13 teeth)

4шт.

19

48471D

BOLT (SPREADER),7/16" - 20 x 4"

BOLT, differential case

8шт.

353790R1

NUT

differential case bolt lock, Farmall 340, 501 to 4330, International 340, Serial Range: 501-4367

8шт.

NUT, 7/16" NF, Farmall 340 - 4331 up, International 340 - 4368 up

1шт.

373904R1

PLATE

differential case bolt lock, Farmall 340 - 4331 up, International 340 - 4368 up

8шт.

20

377344R1

CAGE, bull pinion shaft RH bearing (grove tractors)

1шт.

20

368442R1

CAGE, bull pinion shaft RH bearing

1шт.

357034R1

BOLT

SCREW, bull pinion shaft bearing cage cap

6шт.

21

49673DA

WASHER, bull gear retainer

2шт.

SCREW, 3/4 NF x 1-3/4" hex-hd. cap

2шт.

WASHER, 3/4" lock

2шт.

22

368447R22

BULLGEAR AND HUB ASSEMBLY

2шт.

373109R1

RIVET, 1/2 x 1-3/4" unannealed rd-hd.

12шт.
