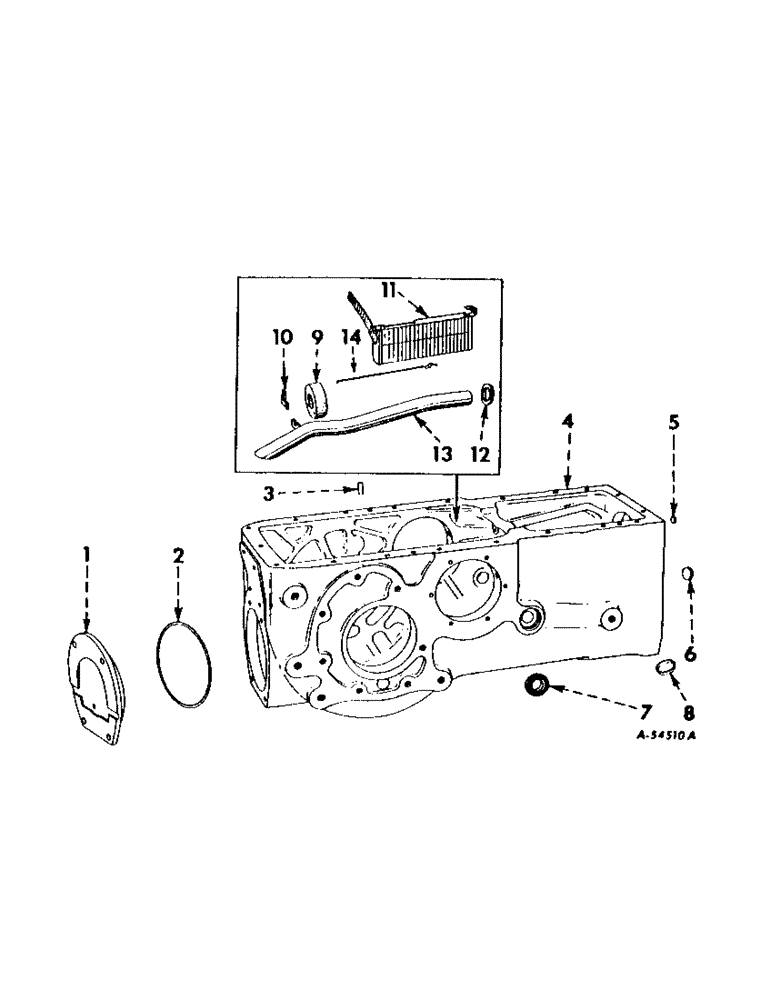

Запчасти Case IH 340 (121) - REAR FRAME AND DRIVING MECHANISMS, REAR FRAME, TRANSMISSION OIL FILTER AND SUCTION TUBE Rear Frame & Driving Mechanisms

1

358841R11

COVER W/-RING ASSEMBLY, power take-off opening (not used on tractors equipped with power take-off)

1шт.

SCREW, 1/2 x 1" cap

4шт.

2

358842R1

RING

O-RING, power take-off opening cover (7-1/8 x 7-17/32 x 13/64")

1шт.

3

48651D

DOWEL, rear frame cover

2шт.

4

372652R91

1шт.

PACKAGE, rear frame service (composed of, (3) dowel 48651D, (1) filter 368209R91, (1) frame 367050R1 (NSS), (2) oil seal 581646R91, (1) plug 144000, (1) plug 103879, (2) plug 41047D, (1) plug 45361D, (1) plug 361314R1, (1) plug 372350R1, (1) plug 372684R1, (1) screw 179860, (1) screw 3703245R2, (10 screw 372349R1,(1) washer Q5001, (1) washer 114607)

1шт.

PLUG, 3/8" stl sq-hd. pipe

1шт.

372350R1

PLUG, oil level opening

1шт.

372864R1

PLUG, rear frame

1шт.

372349R1

SCREW,Hex, 1/4" - 20 x 7/16", W/ Nylon Pellet

oil level opening plug

1шт.

Q5001

WASHER

9/32 x 3/4" x 11 ga.

1шт.

5

45361D

PLUG

vent hole cup (not used on tractors equipped with independent power take-off drive or torque amplifier or forward and reverse drive)

1шт.

6

361314R1

PLUG, reverse idler shaft cup (not used on tractors equipped with independent power take-off drive or torque amplifier or forward and reverse drive)

1шт.

7

581646R91

SEAL

OIL SEAL, brake operating shaft

2шт.

8

41047D

PLUG, cup (not used on tractors equipped with independent power take-off or torque amplifier or forward and reverse drive) 340 series

1шт.

9

370368R11

SUPPORT W/BUSHING ASSEMBLY, suction tube bracket (not used on International 340 tractors equipped with forward and reverse drive) 340 series

1шт.

10

368214R1

RETAINER, suction tube bracket support (340 series)

1шт.

443321

NUT, 3/8" lock (see note A)

1шт.

SCREW, 3/8 x 3/4" hex-hd. cap

1шт.

SCREW, 3/8 x 1-3/4 hex-hd. cap (see note A)

1шт.

3944B

SPACER, suction tube bracket support retainer (see note A)

1шт.

311246R1

WASHER, suction tube bracket support retainer (see note A)

1шт.

WASHER, 3/8" lock

1шт.

11

368209R91

FILTER, transmission oil (used only on 340 series tractors without tandem oil filter)

1шт.

SCREW, 7/16 x 1-1/4" hex-hd. cap

1шт.

370345R2

SCREW, oil filter mounting

1шт.

WASHER, 7/16" external-tooth lock

1шт.

WASHER, 15/32 x 59/64 x no. 16 ga.

1шт.

12

368548R1

RING

oil suction tube seal (340 series)

1шт.

13

368210R11

TUBE ASSEMBLY, oil suction (340 series) 13.32, 4.36" Length

1шт.

SCREW, 3/8 x 3/4" hex-hd. cap

1шт.

WASHER, 3/8" lock

1шт.

14

374959R1

TROUGH, oil (used only on 340 series tractors with tandem oil filter)

1шт.

370345R2

SCREW, oil trough mounting

1шт.

WASHER, 7/16" external-tooth lock

1шт.
