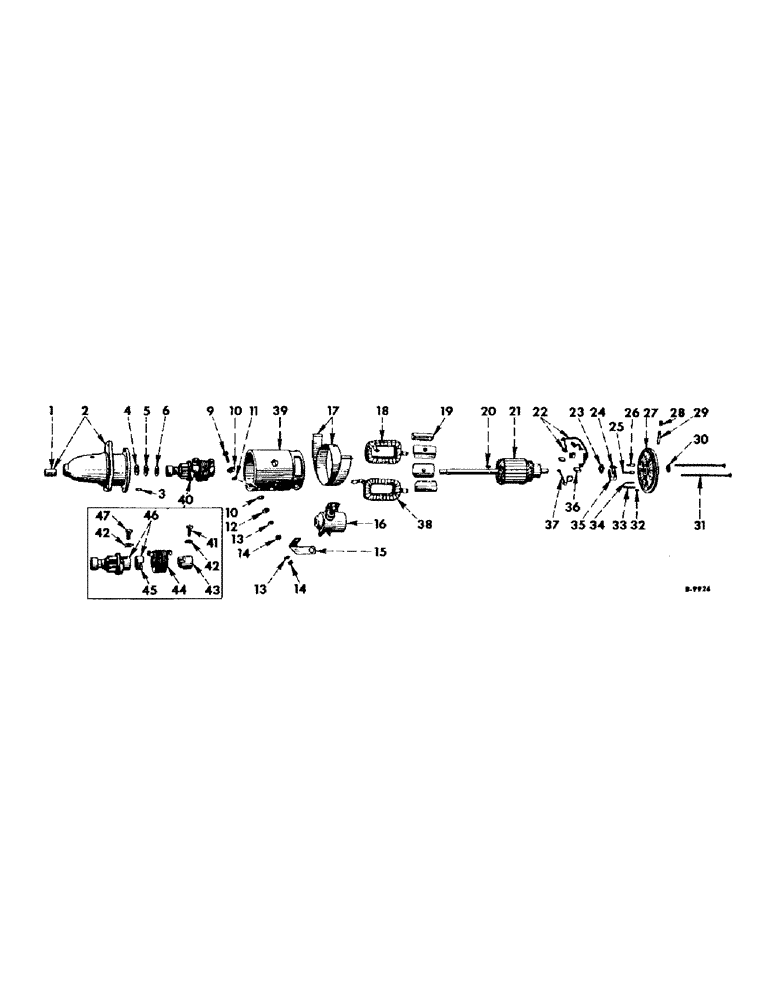

Запчасти Case IH 340 (073) - ELECTRICAL SYSTEM, CRANKING MOTOR, DELCO-REMY, CARBURETED ENGINE TRACTORS Lubrication System

1107169

MOTOR ASSEMBLY, cranking (368899R91 - 6 volt)

1шт.

1

810620

BUSHING

drive housing

1шт.

2

1941627

HOUSING ASSEMBLY, drive

1шт.

3

809593

PIN

drive end dowel

1шт.

4

833602

WASHER

drive end space (1/16 thick x 63/64" OD)

1шт.

5

809815

WASHER

drive end space (1/16 thick x 1-1/6" OD)

1шт.

6

1849774

WASHER

drive end spacer (3/32 thick x 1-1/16" OD)

1шт.

9

1848837

STUD

terminal

1шт.

10

1861076

WASHER

terminal stud insulating (3/4" OD)

2шт.

11

1904669

WASHER

terminal stud insulating (9/16" OD)

2шт.

12

812622

WASHER

3/8 x 11/16 x 1/32" cd-pltd.

1шт.

13

120381

WASHER

3/8" cd-pltd. light lock

2шт.

14

805258

NUT

terminal stud

2шт.

15

1903905

CONNECTOR, solenoid switch

1шт.

280136

NUT,3/8"-16, G8

(Solenoid switch terminal) 3/8"-16, G8

1шт.

120381

WASHER

3/8" cd-pltd. light lock (solenoid switch terminal)

1шт.

812622

WASHER

3/8 x 11/16 x 1/32" cd-pltd. (solenoid switch terminal)

1шт.

16

1465

SWITCH

ASSEMBLY, magnetic (composed of (1) nut 120622, (2) nut 134566, (1) switch (NSS), (2) washer 120381, (2) washer 812622, (1) washer 1904615)

1шт.

120622

NUT,#8-32

1шт.

280136

NUT,3/8"-16, G8

(Solenoid switch terminal) 3/8"-16, G8

1шт.

1916529

SCREW

solenoid switch mounting

2шт.

120381

WASHER

3/8" cd-pltd. light lock (solenoid switch terminal)

1шт.

812622

WASHER

3/8 x 11/16 x 1/32" cd-pltd. (solenoid switch terminal)

1шт.

1904615

RING

WASHER, no. 8 lock

1шт.

17

1886923

BAND

W/NUT AND SCREW ASSEMBLY

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

132926

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

no. 10 NF x 1-1/4" cd-pltd. slt-rd-hd. mach.

1шт.

18

1922861

COIL, field LH

1шт.

19

810601

SHOE, pole

4шт.

1881869

SCREW

pole shoe

4шт.

20

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

1шт.

21

818002

ARMATURE

1шт.

22

819362

CABLE

LEAD, brush and field connector

2шт.

132892

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

no. 10 NF x 1/4" cd-pltd. slt-rd-hd. mach.

2шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

23

833602

WASHER

commutator end space

1шт.

24

813521

VALVE SPRING

SPRING, brush

4шт.

25

812016

PIN

brush holder hinge

2шт.

26

812015

PIN

brush holder stop

2шт.

27

1873774

FRAME

ASSEMBLY, commutator end (composed of (1) frame (NSS), (1) oiler 1880642, (1) pin 809062, (2) pin 812015, (2) pin 812016, (2) pin 817313, (2) pin 817314, (1) plug 1865182, (1) wick 802694)

1шт.

28

1880642

OILER ASSEMBLY, commutator

1шт.

29

802694

NOZZLE

WICK, commutator end oil

1шт.

30

1865182

PLUG, commutator end frame expansion

1шт.

31

809053

BOLT, through

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

32

809062

PIN, commutator end dowel

1шт.

33

817313

PIN, brush holder hinge

2шт.

34

817314

PIN, brush holder stop

2шт.

35

810226

HOLDER

brush

4шт.

36

811553

BRUSH

4шт.

115903

SCREW

no. 6 x 1/2" blued slt-rd-hd. mach.

4шт.

37

813554

CABLE

LEAD, brush ground

2шт.

122159

HOUSING

SCREW, no. 8 x 1/4" cd-pltd. slt-rd-hd. mach.

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

38

1922860

COIL, field RH

1шт.

39

FRAME, (not serviced separately - order cranking motor assembly)

1шт.

40

1868804

DRIVE

ASSEMBLY, motor (composed of, (1) gear and shaft 1855629, (1) head 1848530, (1) screw 1850810, (1) screw 1850811, (1) spring 1860639, (2) washer 805057)

1шт.

41

1850811

SCREW

motor drive spring

1шт.

42

805057

WASHER, drive spring screw lock

2шт.

43

1848530

HEAD, motor drive

1шт.

44

1860639

SPRING, motor drive

1шт.

45

1849782

SLEEVE, motor drive

1шт.

46

77695H

DRIVE

GEAR AND SHAFT ASSEMBLY, motor drive (10 teeth) (Replaces 1855629)

1шт.

47

1850810

SCREW, motor drive spring

1шт.
