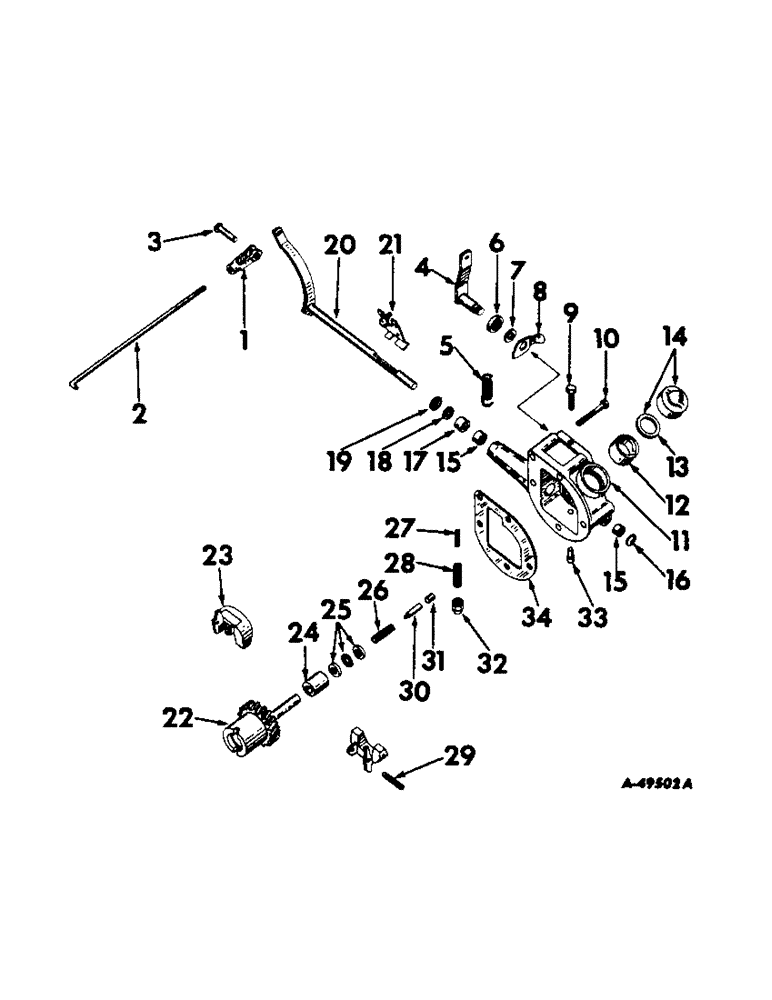

Запчасти Case IH 340 (053) - GOVERNOR, FARMALL AND INTERNATIONAL 340 Governor

1

104036

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS, 1/4 NF adjustable rod end

1шт.

NUT, 1/4 NF

1шт.

2

315716R1

ROD

governor connecting

1шт.

PIN, 1/16 x 7/16" cotter

1шт.

3

103494

ADJUSTABLE CLEVIS,1/4" x .770"

PIN, 1/4" rod end

1шт.

PIN, 1/16 x 7/16" cotter

1шт.

4

46947DAXB

LEVER

AND SHAFT ASSEMBLY, governor speed change

1шт.

NUT, 3/8 NF jam

1шт.

WASHER, 3/8" external tooth lock

1шт.

5

369686R2

SPRING

governor

1шт.

6

149345R91

OIL SEAL

OIL SEAL, governor speed change shaft

1шт.

7

355476R1

SPRING WASHER

governor spring lever

1шт.

8

51491DA

LEVER

governor spring

1шт.

9

357432R3

BOLT

STOP, governor speed change lever

1шт.

NUT, 3/8" jam

1шт.

12736D

ELECTRICAL WIRE

SEAL, governor

1шт.

10

54041D

BOLT, governor housing

1шт.

WASHER, 5/16" lock

1шт.

11

367706R11

HOUSING ASSEMBLY, governor (composed of, (2) bearing 45753D, (1) bushing 46939D, (1) housing 367706R1 (NSS), (1) neck 368564R1, (1) pin 46942D, (1) pin 49220D, (1) plug 172531)

1шт.

SCREW, 5/16 x 1-3/8" hex-hd. cap

1шт.

SCREW, 5/16 x 2-3/4" hex-hd. cap

3шт.

WASHER, 5/16" lock

4шт.

12

368564R1

NECK, oil filler

1шт.

13

368153R1

GASKET

oil filler cap

1шт.

14

367857R91

CAP

ASSEMBLY, oil filler

1шт.

15

45753D

BEARING, NEEDLE,Needle, 9.51mm ID x 15.89mm OD x 12.7mm W

BEARING, governor rockshaft needle

2шт.

16

172531

PLUG,Exp, 3/4"

3/4" expansion (governor housing)

1шт.

17

46939D

BUSHING,9.59mm ID x 19.13mm OD x 11.11mm L

governor rockshaft

1шт.

18

43482D

SEAL,9.53mm ID x 18.26mm OD x 5.56mm Thk

SEAL, governor rockshaft

1шт.

19

43483D

SEAL RETAINER

RETAINER, governor rockshaft seal

1шт.

20

367709R11

ROCKSHAFT

ASSEMBLY, governor

1шт.

21

367711R1

FORK

governor rockshaft

1шт.

SCREW, no. 8 x 1/2" slt-rd-hd. mach.

2шт.

WASHER, no. 8 lock

2шт.

22

6339DAX

GEAR

PINION ASSEMBLY, ignition unit and governor (33 teeth)

1шт.

23

351778R1

WEIGHT

governor (optional with 374710R1)

2шт.

23

374710R1

WEIGHT

governor (optional with 351778R1)

2шт.

24

49325D

BUSHING

SLEEVE, governor thrust (steel) (optional with 363866R1)

1шт.

24

363866R1

BUSHING,12.83mm ID x 23.81mm OD x 27.51mm L

SLEEVE, governor thrust (nylon) (optional with 49325D)

1шт.

25

43481D

BEARING ASSY,12.8mm ID x 23.81mm OD x 10.19mm W

BALL BEARING, governor thrust

1шт.

26

49218DA

SPRING

governor shaft bumper

1шт.

27

28078D

VALVE SPRING

SPRING, governor bumper

1шт.

28

31804DA

BODY

governor bumper spring

1шт.

NUT, 7/16 NF jam

1шт.

29

46924D

PIN

governor weight

2шт.

PIN, 1/16 x 7/8" cotter

2шт.

30

49219DA

AXLE PIN,4.78mm OD x 26.99mm L

PIN, governor shaft bumper

1шт.

31

49220D

STOP

PIN, governor shaft stop

1шт.

32

129-531

NUT,Crown, 7/16"-14

7/16 NF low crown

1шт.

33

46942D

AXLE PIN,5.56mm OD x 18.26mm L

PIN, governor rockshaft lever retainer

1шт.

34

45875D

GASKET

governor housing

1шт.

367707R91

1шт.

GOVERNOR ASSEMBLY (composed of, (1) bearing 43481D, (1) body 31804DA, (1) bolt 54041D, (1) cap 367857R91, (1) fork 367711R1, (1) gasket 45875D, (1) housing 367706R11, (1) lever 46947DAXB, (1) lever 51491DA, (1) oil seal 149345R91, (2) pin 46924D, (1) pin 49219DA, (1) pinion 6339DAX, (1) retainer 43483D, (1) rockshaft 367709R11, (1) seal 43482D, (1) sleeve 49325D, (1) spring 28078D, (1) spring 49218DA, (1) spring 369686R1, (1) stop 357432R2, (2) washer 355476R1, (2) weight 351778R1)

1шт.
