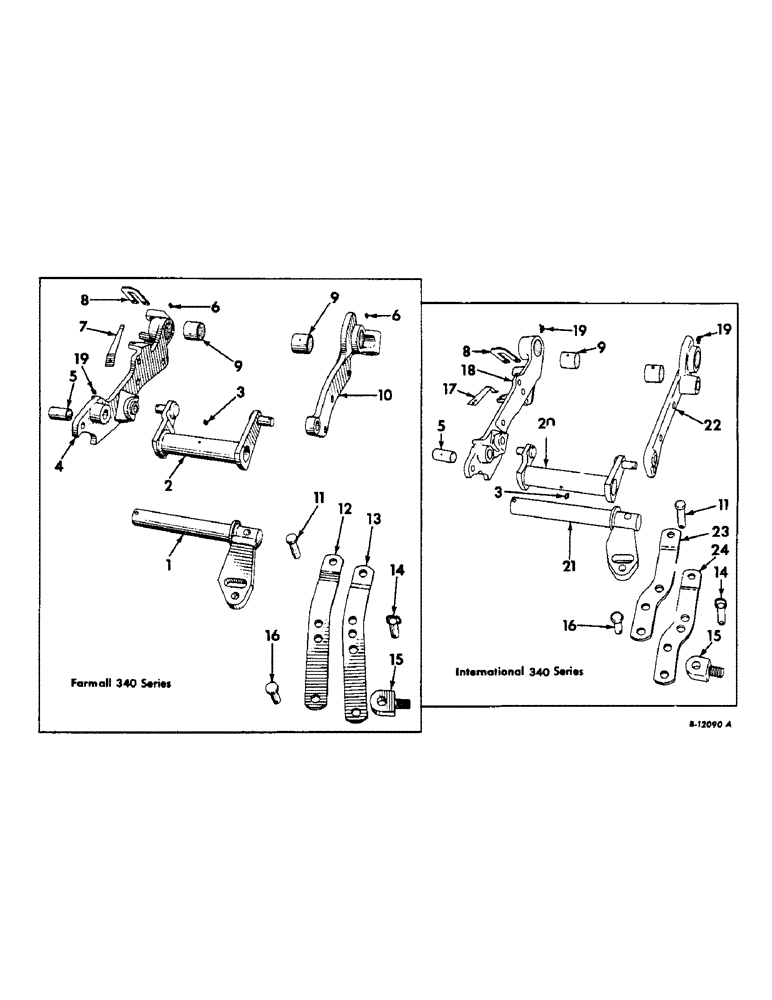

Запчасти Case IH 340 (255) - DRAWBAR AND HITCHES, ROCKSHAFT BEARING AND LATERAL LIMITER, 340 SERIES Drawbar & Hitches

1

523161R22

SHAFT

ASSEMBLY, lateral swing (A, B and E only)

1шт.

PIN, 3/8 x 2-1/2" cotter (A, B and E only)

1шт.

Q3488

WASHER

1-25/32 x 2-1/2" x 11 ga. (A, B and E only)

1шт.

2

523160R91

LIMITER ASSEMBLY, lateral swing (A, B and E only)

1шт.

Q3481

WASHER

1-1/32 x 1-1/2" x 16 ga. (used only if necessary to take up end play) (A, B and E only)

1шт.

3

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4" straight drive type lubrication

1шт.

4

522731R31

PLATE W/BUSHINGS, 522705R1 and 523708R91 assembly, LH rockshaft (A, B and E only)

1шт.

SCREW, 3/4 x 1-7/8" hex-hd. cap (A, B and E only)

1шт.

SCREW, 3/4 x 2-1/4" hex-hd. cap (A, B and E only)

2шт.

WASHER, 3/4" lock (A, B and E only)

3шт.

5

522705R1

BUSHING,28.63mm ID x 31.85mm OD x 53.98mm L

traction control pivot

1шт.

6

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, (A, B and D only) 1/8"-27 x .66 lg

1шт.

7

522706R1

SPRING, adjusting lever (A, B and D only)

1шт.

NUT, 5/16" (A, B and D only)

1шт.

SCREW, 5/16 x 1" hex-hd. cap (A, B and D only)

1шт.

WASHER, 11-32 x 3/4" x 11 ga. (A, B and D only)

1шт.

8

525576R1

CLIP, traction control lever retaining

1шт.

SCREW, 1/4 x 3/4" slt-rd-hd. mach.

2шт.

WASHER, 1/4" lock

2шт.

9

523708R1

BUSHING,54.41mm ID x 57.56mm OD x 50.8mm L

rockshaft bearing

2шт.

10

522732R31

PLAT W/BUSHING, 523708R1 assembly, RH rockshaft (A, B and D only)

1шт.

SCREW, 3/4 x 1-7/8" hex-hd. cap (A, B and D only)

3шт.

WASHER, 3/4" lock (A, B and D only)

3шт.

11

523171R1

PIN,19.05mm OD x 74.61mm L

lateral swing, Serial Range: strap-shaft

1шт.

PIN, 1/4 x 1-1/4" self-opening cotter

1шт.

12

523005R11

STRAP, lateral swing upper (A, B and D only)

1шт.

13

523004R1

STRAP, lateral swing lower (A, B and D only)

1шт.

14

522841R11

PIN

lateral swing lockout

1шт.

15

522843R2

BOLT

EYE-BOLT, lateral swing limiter

1шт.

16

523172R1

PIN,19.05mm OD x 59.53mm L

lateral swing, Serial Range: strap-eye-bolt

1шт.

PIN, 1/2 x 1-1/4" self-opening cotter

1шт.

17

523688R1

SPRING, traction control adjusting lever (C, D and F only)

1шт.

BOLT, 1/4 x 1" hex. hd. mach. (C, D and F only)

2шт.

NUT, 1/4" (C, D and F only)

2шт.

WASHER, 17/64 x 3/4" x 16 ga. (C, D and F only)

2шт.

18

523689R31

PLATE W/BUSHING, 522705R1 and bushing, 523708R1, assembly, LH rockshaft (C, D and F only)

1шт.

SCREW, 3/4 x 1-7/8" hex-hd. cap (C, D and F only)

3шт.

WASHER, 3/4" lock (C, D and F only)

2шт.

WASHER, 3/4" external tooth lock (on lower screw) (C, D and F only)

1шт.

19

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1/8 x 67-1/2" elbow lubrication (A, B and E only)

1шт.

(C, D and F only)

2шт.

20

522771R91

LIMITER ASSEMBLY, lateral swing (C, D and F only)

1шт.

PIN, 1/4 x 1-1/4" self-opening cotter (C, D and F only)

2шт.

615191R1

WASHER

29/32 x 1-1/4" x 16 ga. (use to take up end play) (C, D and F only)

1шт.

615192R1

WASHER

29/32 x 1-1/4" x 22 ga. (use to take up end play) (C, D and F only)

1шт.

21

522778R22

SHAFT ASSEMBLY, lateral swing (C, D and F only)

1шт.

PIN, 3/8 x 2-1/2" self-opening cotter (C, D and F only)

1шт.

Q3488

WASHER

1-25/32 x 2-1/2" x 11 ga. (C, D and F only)

1шт.

Q3489

WASHER

1-25/32 x 2-1/2" x 16 ga. (use to take up end play) (C, D and F only)

1шт.

22

522762R31

PLATE W/BUSHING, 523708R1, assembly, RH rockshaft (C, D and F only)

1шт.

SCREW, 3/4 x 1-7/8" hex-hd. cap (C, D and F only)

3шт.

WASHER, 3/4" lock (C, D and F only)

3шт.

23

523132R11

STRAP, lateral swing upper (C, D and F only)

1шт.

24

523133R1

STRAP, lateral swing lower (C, D and F only)

1шт.
