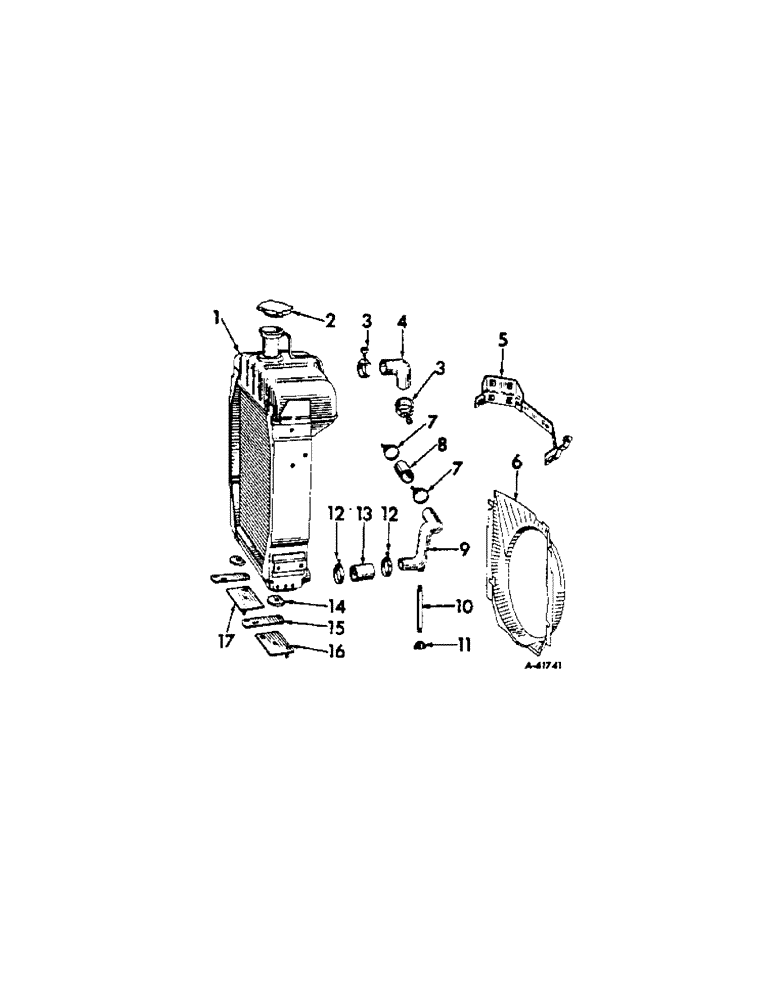

Запчасти Case IH 340 (051) - COOLING SYSTEM, RADIATOR, FARMALL AND INTERNATIONAL 340 DIESEL COOLING SYSTEM

1

375394R91

RADIATOR ASSEMBLY

1шт.

15003R1

BOLT,Sq Nk, 7/16" x 7/8"

7/16 x 7/8" crg. Farmall 340 Diesel

2шт.

15040R1

BOLT,Sht Sq Nk, 7/16" - 14 x 1 1/2"

7/16 x 1-1/2" crg. International 340 Diesel

2шт.

18526R1

LOCK NUT,7/16"-14, GB

NUT, 7/16" elastic stop

2шт.

2

370871R91

CAP

radiator filler

1шт.

3

39205H

CLAMP

radiator inlet hose

2шт.

4

375392R1

HOSE

radiator inlet

1шт.

5

375171R11

BRACE ASSEMBLY, radiator

1шт.

NUT, 5/16"

2шт.

SCREW, 5/16 x 5/8" hex-hd. cap

2шт.

SCREW, 7/16 x 1-1/4" hex-hd. cap

2шт.

WASHER, 11/32 x 11/16" x 16 ga.

2шт.

6

375393R1

HOUSING, fan

1шт.

13556R1

BOLT,Sq Hd, 1/4" - 20

1/4 x 5/8" sq-hd. mach.

4шт.

NUT, 1/4"

4шт.

7

39205H

CLAMP

water pump inlet hose

2шт.

8

375546R1

RADIATOR HOSE,2.00" ID x 2.25"

Water pump inlet 2.00" ID x 2.25"

1шт.

9

375075R2

ELBOW, radiator outlet (see note)

1шт.

103867

PLUG

3/8" sq-hd pipe International 340 Diesel

2шт.

10

190699

PIPE,Nipple, 3/8" NPT x 6"

NIPPLE, 3/8 x 6" std pipe (radiator drain) Farmall 340 Diesel

1шт.

11

13047DA

PLUG

CAP, radiator drain pipe Farmall 340 Diesel

1шт.

12

39149H

HOSE CLAMP

CLAMP, radiator outlet hose

2шт.

13

48827DA

FLEXIBLE HOSE,1.50" ID x 2.50"

RADIATOR HOSE, , Outlet 1.50" ID x 2.50"

1шт.

14

18464DA

GASKET

PAD, radiator

2шт.

15

369087R1

BRACKET, radiator mounting International 340 Diesel

2шт.

SCREW, 3/8 x 1" hex-hd. cap

4шт.

WASHER, 13/32 x 13/16 x .080 ga.

4шт.

16

369090R91

PAD ASSEMBLY, radiator LH mounting Farmall 340 Diesel

1шт.

17

369088R11

PAD ASSEMBLY, radiator RH mounting Farmall 340 Diesel

1шт.
