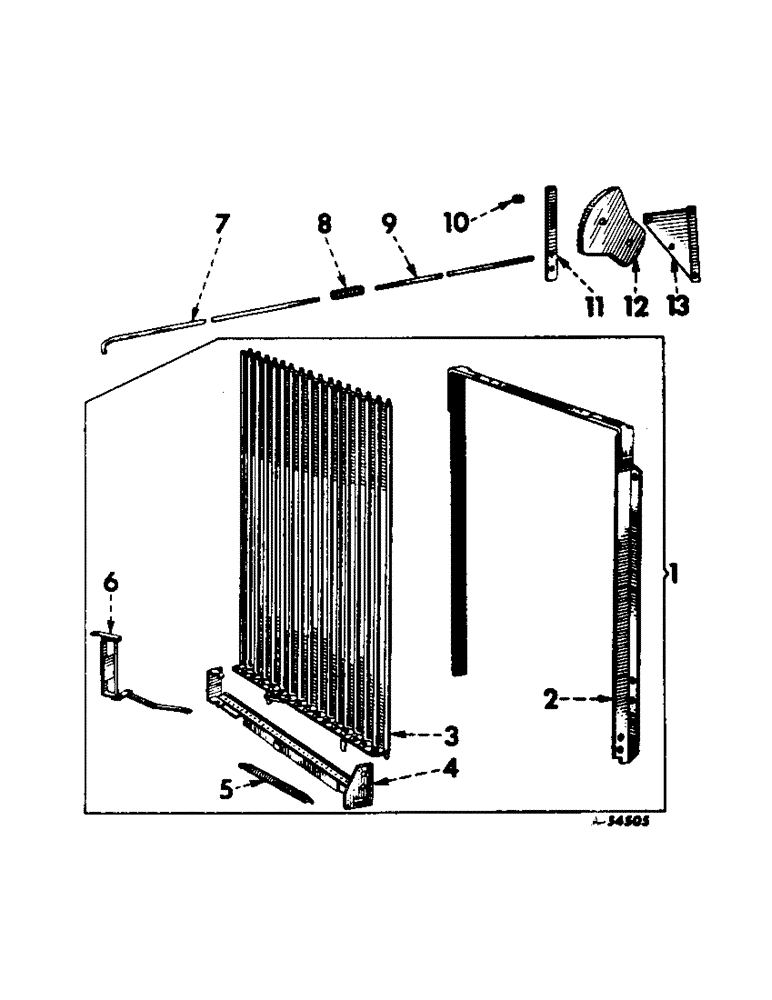

Запчасти Case IH 340 (050) - COOLING SYSTEM, RADIATOR SHUTTER, 340 SERIES COOLING SYSTEM

1

372690R91

SHUTTER ASSEMBLY, radiator

1шт.

BOLT, 1/4 x 5" sq-hd. mach.

2шт.

NUT, 1/4"

2шт.

2

373127R91

FRAME AND BEARING BAR ASSEMBLY, shutter

1шт.

NUT, 1/4"

4шт.

SCREW, 1/4 x 1/2" rd-hd. mach.

2шт.

SCREW, 1/4 x 5/8" rd-hd. mach.

2шт.

WASHER, 1/4" lock

4шт.

3

373128R91

SHUTTER W/OPERATING BAR ASSEMBLY

1шт.

4

373129R91

TIE BAR ASSEMBLY, bottom

1шт.

5

37730D

SPRING, bellcrank and operating link

1шт.

6

372691R91

BELLCRANK ASSEMBLY, bracket and links

1шт.

PIN, 1/16 x 5/8" cotter

1шт.

WASHER, 17/64 x 9/16" x .049 ga.

1шт.

7

372306R1

ROD, radiator shutter control front

1шт.

PIN, 3/32 x 3/4" cotter

1шт.

8

69579DA

COUPLING, radiator shutter control rod

1шт.

9

372308R1

ROD, radiator shutter control rear

1шт.

NUT, 5/16"

1шт.

PIN, 3/32 x 3/4" cotter

1шт.

10

69589D

SPRING, radiator shutter control lever

1шт.

PIN, 3/32 x 3/4" cotter

1шт.

WASHER, 11/32 x 11/16" x 16 ga.

1шт.

11

372309R1

LEVER, radiator shutter control

1шт.

12

351412R11

SECTOR ASSEMBLY, radiator shutter control

1шт.

NUT, 5/16"

2шт.

screw, 5/16 x 9/16" hex-hd. cap

2шт.

13

372310R1

SUPPORT, radiator shutter control sector

1шт.

372311R1

SCREW, radiator shutter sector support

2шт.
