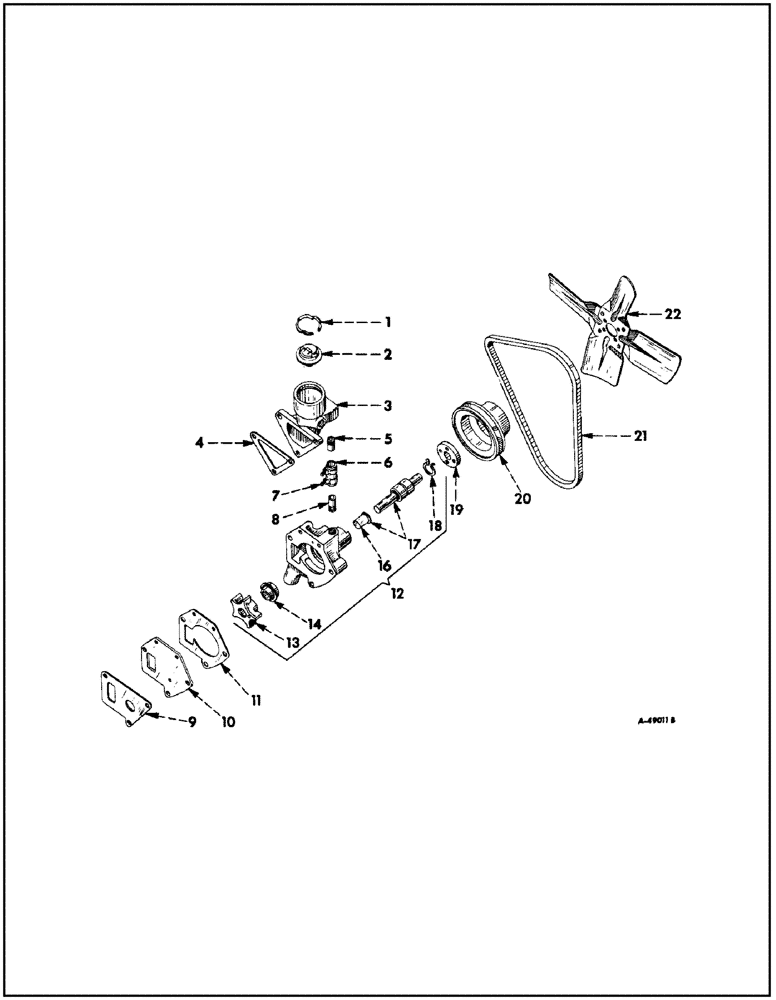

Запчасти Case IH 340 (047) - COOLING SYSTEM, FAN, THERMOSTAT AND WATER PUMP, CARBURETED ENGINE TRACTORS COOLING SYSTEM

1

257441R2

SEGMENT

RING, thermostat retainer

1шт.

2

369322R91

THERMOSTAT

(170deg.)

1шт.

3

367679R1

ELBOW

water outlet

1шт.

*

SCREW, 3/8 x 1" hex-hd cap

3шт.

*

WASHER, 3/8" lock

3шт.

4

43294D

GASKET

water outlet elbow

1шт.

5

367680R1

FITTING

PIPE, upper by-pass

1шт.

6

367681R1

HOSE

by-pass pipe

1шт.

7

375061R91

CLAMP

by-pass pipe hose

2шт.

8

368556R1

FITTING

PIPE, lower by-pass

1шт.

9

375745R1

GASKET

water pump plate

1шт.

10

368559R1

SUPPORT

PLATE, water pump

1шт.

*

SCREW, 5/16 x 3/4" hex-hd. cap

2шт.

*

WASHER, 5/16" lock

2шт.

11

367687R1

GASKET

water pump body

1шт.

12

367683R91

PUMP

ASSEMBLY, water

1шт.

*

375793R92R

REMAN-WATER PUMP

340 INTERNATIONAL UTILITY GAS TRACTOR, 340 FARMALL GAS TRACTOR Both (1/58-12/63), 330 (1/57-12/58), Reman For New P/N 367683R91

1шт.

*

375793R92C

CORE-WATER PUMP

Return Number

1шт.

*

SCREW, 3/8 x 1-3/8" hex-hd. cap

1шт.

*

SCREW, 3/8 x 2" hex-hd. cap

1шт.

*

SCREW, 3/8 x 2-5/8 hex-hd. cap

1шт.

*

WASHER, 3/8" lock

3шт.

13

367689R1

IMPELLER

water pump

1шт.

14

73296R92

SEAL

ASSEMBLY, water pump

1шт.

16

71351R1

SLINGER

water pump

1шт.

17

ST644

SHAFT

BEARING WITH SHAFT ASSEMBLY, water pump

1шт.

18

102069H

RING

front snap

1шт.

19

368501R2

HUB CAP

HUB, pulley

1шт.

20

367688R1

PULLEY

water pump

1шт.

21

367697R1

V-BELT,0.38" W x 42.00" L

Fan and generator 0.38" W x 42.00" L

1шт.

22

367682R91

FAN

BLADE ASSEMBLY, fan

1шт.

*

SCREW, 1/4 x 1/2" hex-hd. cap

4шт.

*

WASHER, 1/4" lock

4шт.

*

367708R91

PUMP

PACKAGE, water pump service (consists of, (1) gasket 367687R1, (1) gasket 375745R1, (1) impeller 367689R1, (1) ring 102069H, (1) seal 73296R92, (1) shaft ST644)

1шт.
