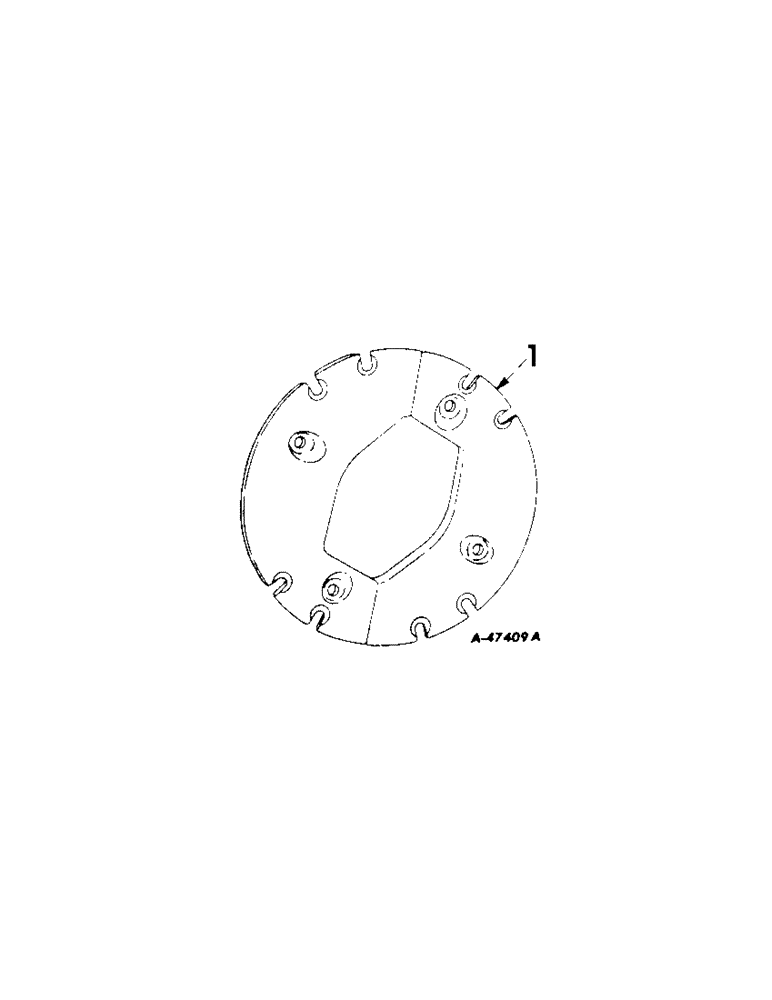

Запчасти Case IH 340 (189[B]) - WHEELS, REAR WHEEL WEIGHTS, SPLIT TYPE, FARMALL 340 SERIES (11) - WHEELS
![Схема запчастей Case IH 340 - (189[B]) - WHEELS, REAR WHEEL WEIGHTS, SPLIT TYPE, FARMALL 340 SERIES (11) - WHEELS](https://partsell.ru/storage/images/caseih/573475.png)
1
№
Артикул
Название
Примечание
Количество
1
366109R1
WEIGHT
rear wheel-half (approx. 63 lbs.) (4 for unit A)
1шт.
366110R1
BOLT,Sq Hd, 3/4" - 10 x 4 3/4"
rear wheel weight
8шт.
NUT, 3/4" cd-pltd.
8шт.
NUT, 3/4" cd-pltd. jam
8шт.
WASHER, 3/4" cd-pltd. lock
8шт.
1
366109R1
WEIGHT
rear wheel-half (approx. 63 lbs.) (4 for unit B)
1шт.
366111R1
BOLT,Sq Hd, 3/4" - 10 x 3 1/4"
rear wheel weight
8шт.
NUT, 3/4" cd-pltd.
8шт.
NUT, 3/4" cd-pltd. jam
8шт.
366112R1
WASHER
rear wheel weight bolt
16шт.
Выбрано товаров: 10
