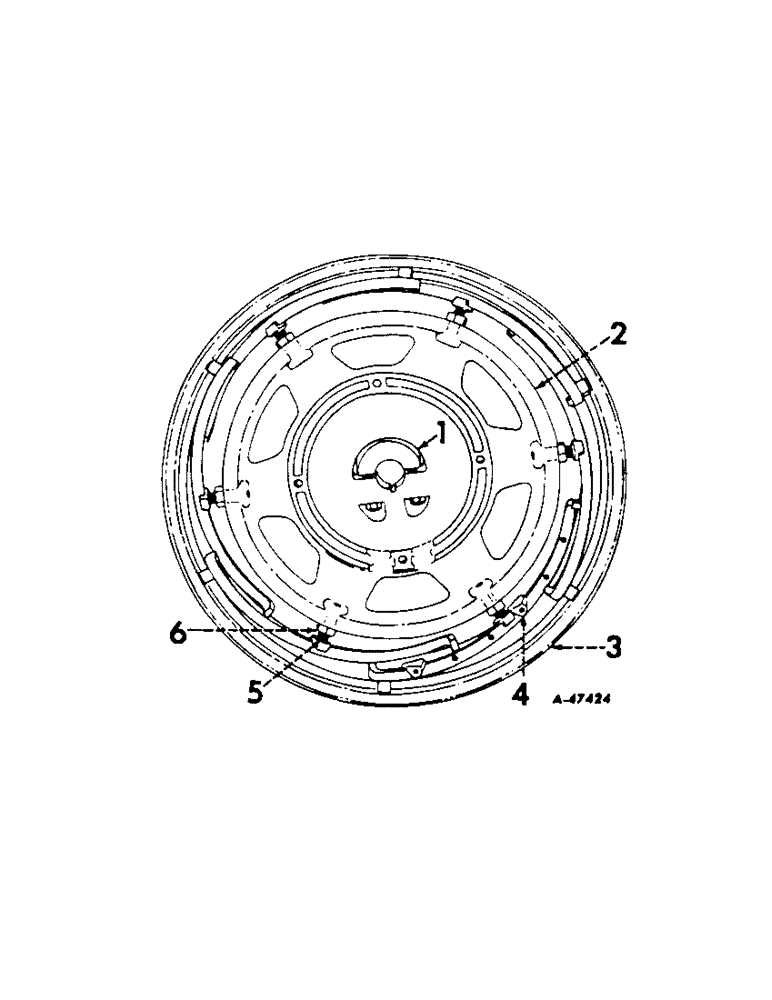

Запчасти Case IH 340 (187) - WHEELS, POWER ADJUSTED REAR WHEELS, FARMALL 340 SERIES (11) - WHEELS

1

363020R1

CLAMP

rear wheel hub

4шт.

375464R1

BOLT,Spcl, Hex, 3/4" - 16 x 4"

SCREW, 3/4NF x 4" hex-hd. cap

8шт.

WASHER, 25/32 x 1-1/4" x 11 ga.

8шт.

2

370864R12

WHEEL, w/key, 364699R1 assembly, rear

2шт.

364699R2

KEY

rear wheel drive

2шт.

3

370865R91

RIM, rear wheel (W-10-36 rim for 11.2/10-36 or 12.4/11-36 tire)

2шт.

3

372318R91

RIM, rear wheel (W-12-36 rim for 13.9-36 tire)

2шт.

4

365327R2

STOP

BODY, rear wheel stop

4шт.

365326R1

SCREW

body rear wheel stop

4шт.

5

365326R1

SCREW

rear wheel jack

12шт.

6

366105R1

WHEEL NUT,Hex, 1" - 16

rear wheel jackscrew

12шт.

366106R1

WRENCH, jackscrew (1-11/16") (illustrated with "Tools")

1шт.
