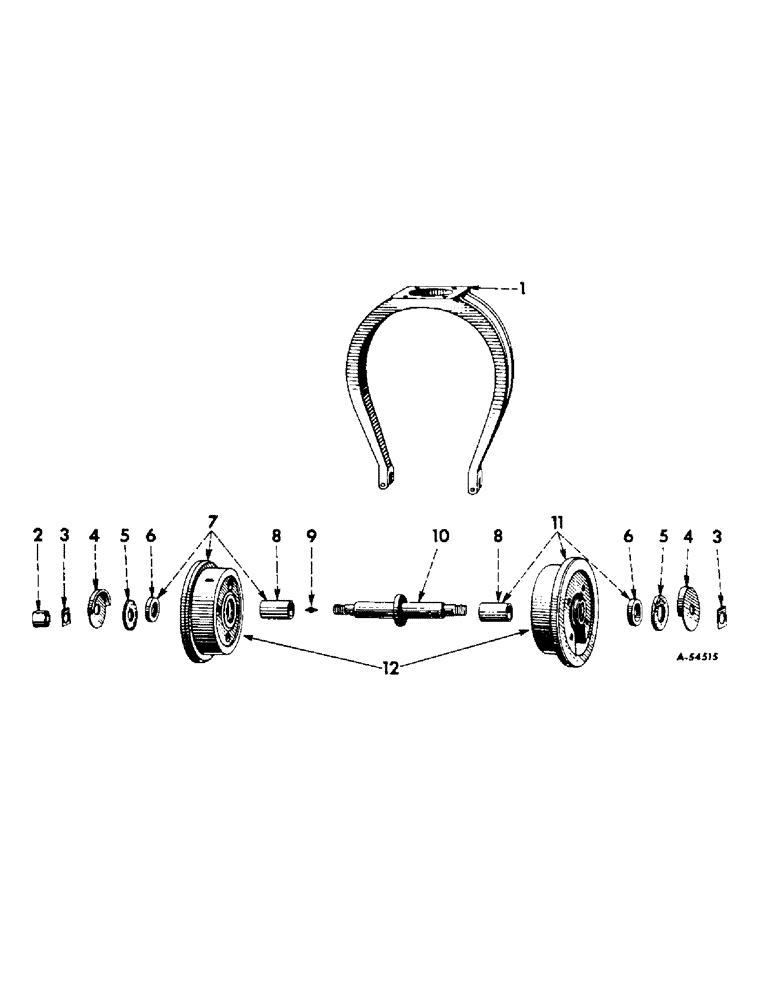

Запчасти Case IH 340 (185) - WHEELS, SINGLE FRONT WHEEL, FARMALL 340 SERIES (11) - WHEELS

57894DA

PARTS ACCESSORY, single front wheel (tire size, 7.50-10)

1шт.

1

57895D

FORK, front wheel

1шт.

NUT, 3/8"

2шт.

NUT, 1/2NF

4шт.

SCREW, 3/8 x 2-1/2" hex-hd. cap

2шт.

WASHER, 3/8" lock

2шт.

WASHER, 1/2" lock

4шт.

2

23742D

NUT, front axle

1шт.

3

23743D

LOCK WASHER

LOCK, front axle nut

2шт.

4

23762DX

SHIELD

ASSEMBLY, front wheel hub

2шт.

5

23760D

SEALING WASHER

WASHER, front wheel felt

2шт.

6

364469R91

SEAL

OIL SEAL, front wheel bearing

2шт.

7

5630DAX

WHEEL ASSEMBLY, front, male half

1шт.

8

359340R1

BUSHING

single front wheel

2шт.

9

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF (Optional with 138322H) 1/8"-27 x .66 lg

1шт.

9

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, (Optional with 109461) 1/8"-27 x .66 lg

1шт.

10

23740DA

SHAFT

AXLE, front

1шт.

NUT, 7/8NF

1шт.

11

5631DAX

WHEEL ASSEMBLY, front, female half

1шт.

12

40833DA

WHEEL ASSEMBLY, single

1шт.

NUT, 5/8"

4шт.

SCREW, 5/8 x 7" hex-hd. cap

4шт.

WASHER, 5/8" lock

4шт.
