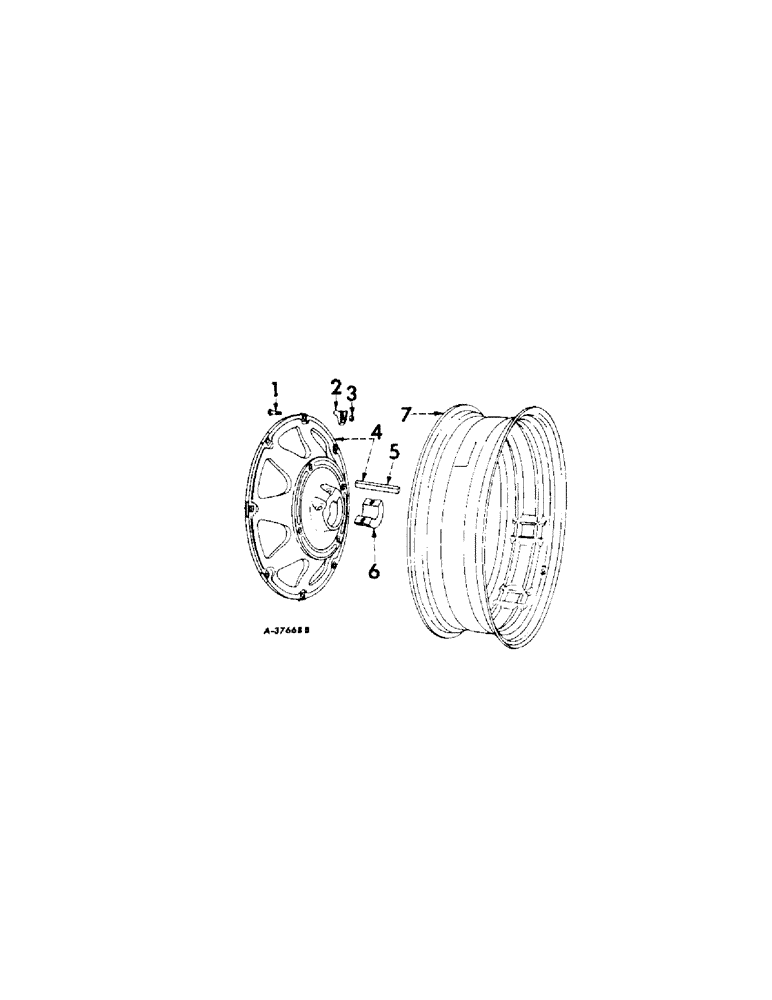

Запчасти Case IH 340 (185[A]) - WHEELS, REAR WHEELS, FARMALL 340 SERIES (11) - WHEELS

1

363017R1

BOLT,5/8" - 18 x 2 1/4"

rear wheel rim clamp

16шт.

2

363016R1

CLAMP

rear wheel rim, adjustable

12шт.

2

373926R1

CLAMP

rear wheel rim, fixed

4шт.

3

363018R1

NUT

rim clamp

16шт.

4

370614R12

WHEEL ASSEMBLY, rear (see note A)

2шт.

4

364698R22

WHEEL ASSEMBLY, rear (see note B)

2шт.

375462R1

BOLT,Hex, 3/4" - 16 x 4 3/4", Gr 4

SCREW, 3/4NF x 4-3/4" hex-hd. cap (see note A)

8шт.

375464R1

BOLT,Spcl, Hex, 3/4" - 16 x 4"

SCREW, 3/4NF x 4" hex-hd. cap (see note B)

8шт.

575813R1

WASHER

25/32 x 1-1/4" x 11 ga.

8шт.

5

364699R2

KEY

rear wheel

2шт.

6

363020R1

CLAMP

rear wheel hub

4шт.

7

370615R91

RIM, rear wheel (W 10-36 rim for 11.2/10-36 or 12.4/11-36 tire)

2шт.

7

372319R91

RIM, rear wheel (W 12-36 rim for 13.9-36 tire)

2шт.

7

363022R2

RIM

rear wheel (W 11-38 for 12.4/11-38 or 13.6/12-38 tire)

2шт.
