(184) - WHEELS, FRONT WHEEL, AXLE AND BOLSTER, FARMALL 340 SERIES

Запчасти Case IH 340 (184) - WHEELS, FRONT WHEEL, AXLE AND BOLSTER, FARMALL 340 SERIES (11) - WHEELS

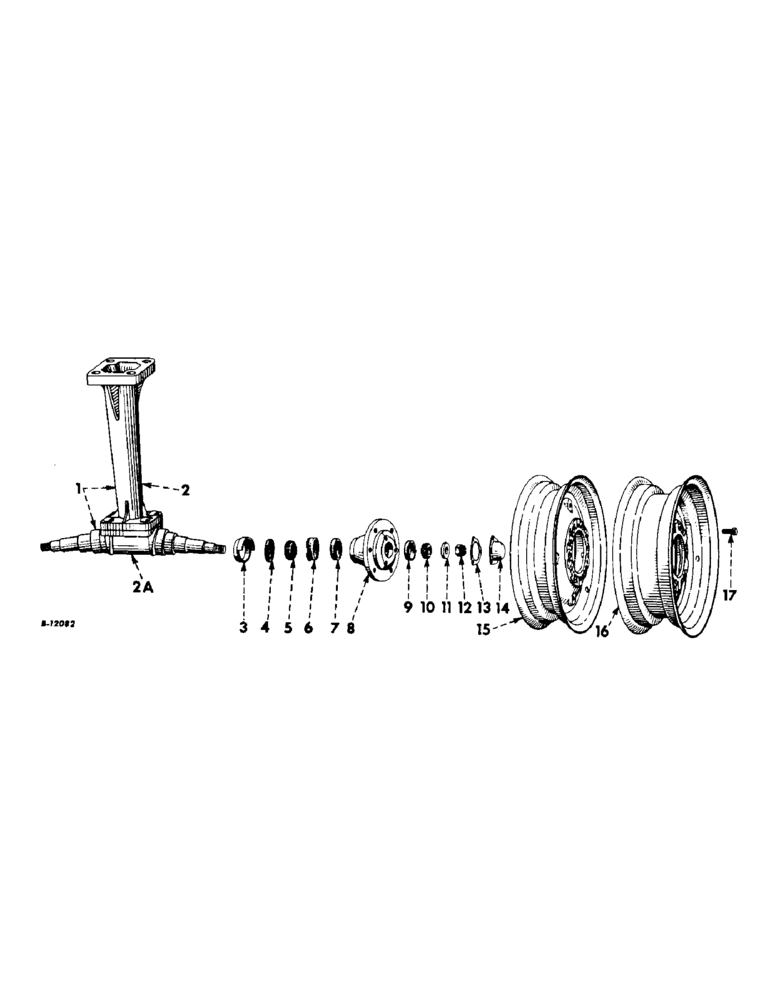

Схема запчастей Case IH 340 - (184) - WHEELS, FRONT WHEEL, AXLE AND BOLSTER, FARMALL 340 SERIES (11) - WHEELS
11
15
10
3
2
13
8
17
14
12
4
6
16
5
7
9
2a
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

370287R91

AXLE and BOLSTER ASSEMBLY, front, composed of (1) axle 370288R1 (NSS), (1) bolster 8624DC (NSS), (2) deflector 43462D, (4) rivet 357126R1, (2) seal 368629R91

1шт.

2

8624DCX

BOLSTER w/FOUR RIVETS, 357126R1 assembly, front wheel

1шт.

2a

370288R11

AXLE

w/FOUR RIVETS, 357126R1 assembly, front

1шт.

.

357126R1

RIVET, front axle and bolster

1шт.

3

43462D

DEFLECTOR

SHIELD, front wheel dust

2шт.

4

368629R91

SEAL

OIL SEAL, front wheel

2шт.

5

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, front wheel inner bearing

2шт.

6

49117D

CUP ASSY.

RING, front wheel oil seal wear

2шт.

7

651817R1

BEARING CUP

CUP, front wheel inner bearing

2шт.

7

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

8

370289R11

HUB

ASSEMBLY, front wheel, composed of (1) cup 651814R1, (1) cup 651817R1, (1) hub 370289R1 (NSS), (1) ring 49117D

1шт.

9

651814R1

BEARING CUP

CUP, front wheel outer bearing

2шт.

10

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE, front wheel outer bearing

2шт.

10

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

11

369936R1

WASHER

front wheel outer bearing retainer

2шт.

12

102649

SLOTTED NUT,5/8"-18, G5

NUT, , Front wheel outer bearing retainer 5/8"-18, G5

2шт.

.

PIN, 1/8 x 1-1/4" cotter

2шт.

13

49116D

GASKET,0.79mm Thk

front wheel hub cap

2шт.

14

49115D

CYLINDER END CAP

CAP, front wheel hub

2шт.

.

SCREW, 5/16 x 5/8" hex-hd. cap

6шт.

.

WASHER, 5/16" lock

6шт.

15

370604R91

WHEEL ASSY.

WHEEL ASSEMBLY, front (disc type w/3.00-15 rim for 5.00-15 tire)

2шт.

16

370603R91

WHEEL ASSEMBLY, front (disc type w/4.00-16 rim for 5.50-16 or 6.00-16 or 6.50-16 tire)

2шт.

17

51485D

BOLT,9/16" - 18 x 1 7/32"

front wheel mounting

12шт.

.

375128R91

KIT

PACKAGE, front wheel bearing overhaul, consists of (1) cone 651815R91, (1) cone 651818R91, (1) cup 651814R1, (1) cup 651817R1, (1) gasket 49116D, (1) ring 49117D, (1) seal 368629R91

2шт.
