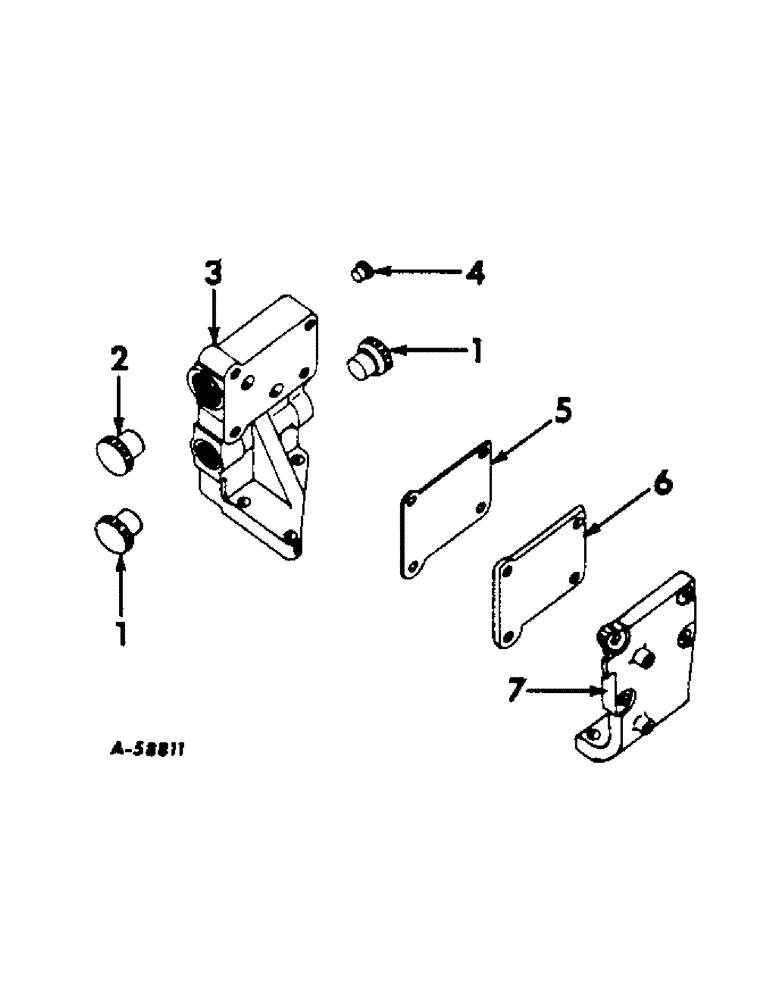

Запчасти Case IH 340 (200) - HYDRAULIC SYSTEM, HYDRA-TOUCH VALVE COLUMNS AND COVERS, 340 SERIES (07) - HYDRAULIC SYSTEM

1

370637R1

PLUG, 7/8" OD tubing pressure port, al.

2шт.

2

369911R1

PLUG, 1" OD tubing return port, al.

1шт.

3

369899R11

COLUMN ASSEMBLY, LH valve mounting, composed of (1) column 369899R1 (NSS), (1) plug 360623R1 (NSS), (1) plug 369911R1, (2) plug 370637R1, (1) plug 374239R1

1шт.

SCREW, 3/8 x 1-5/8" hex-hd. cap

3шт.

4

374239R1

PLUG, 3/8" OD tubing return port, al.

1шт.

5

369910R1

GASKET, mounting column cover

1шт.

6

363089R1

PLATE, LH mounting column cover

1шт.

SCREW, 7/16 x 1/2" hex-hd. cap

4шт.

7

369900R1

COLUMN, RH valve mounting (not used on International 340 Series Grove tractors)

1шт.

SCREW, 3/8 x 1-5/8" hex-hd. cap

2шт.
