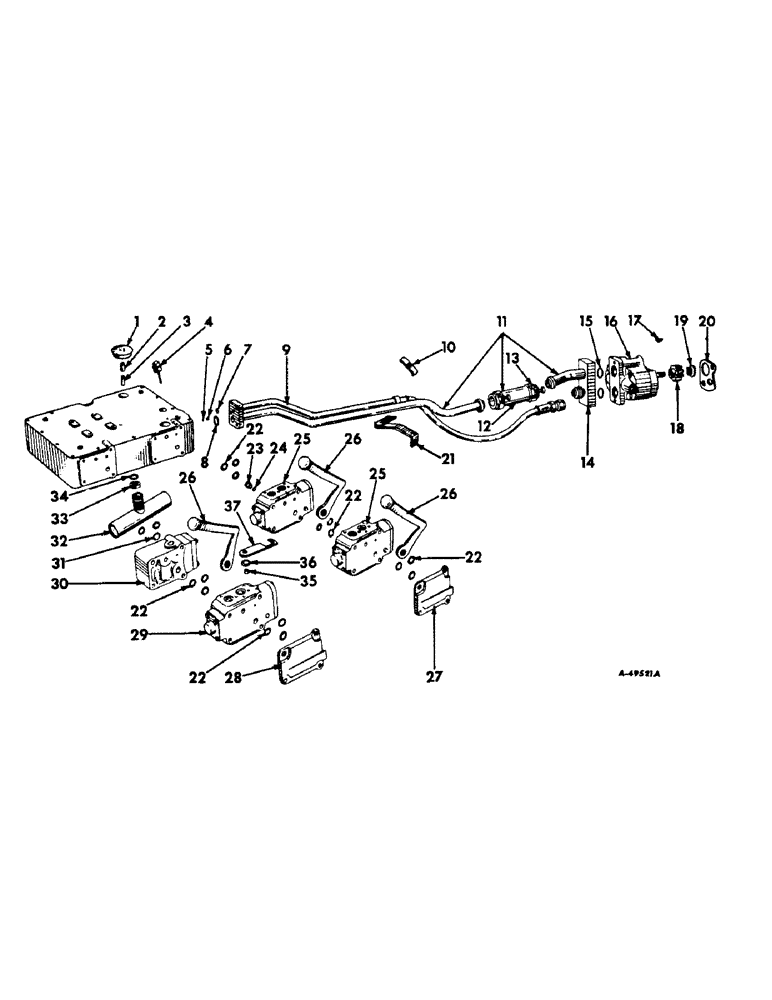

Запчасти Case IH 340 (197) - HYDRAULIC SYSTEM, HYDRA-TOUCH SYSTEM, HYDRAULIC PUMP, MANIFOLD TUBES, VALVES & CONTROLS, INTL 330 (07) - HYDRAULIC SYSTEM

1

364679R91

BREATHER

ASSEMBLY, hydraulic reservoir (A, B, C, D only)

1шт.

2

192086

COUPLING,1/8" NPT, Fem

1/8" pipe-sinc dull (reservoir breather pipe) (A, B, C, D only)

1шт.

3

219601

NIPPLE, 1/8 x 1-1/8" cd-pltd pipe (reservoir breather pipe) (A, B, C, D only)

1шт.

4

361867R11

PLUG ASSEMBLY, hydraulic reservoir filler (A, B, C, D only)

1шт.

5

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

regulator port plug, 1/4 x 3/8 x 1/16") (A, B, C, D only)

1шт.

6

363498R1

PLUG, regulator port (A, B, C, D only)

1шт.

7

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

hydraulic reservoir flange small (11/16 x 7/8 x 3/32) (A, B, C, D only)

1шт.

8

350818R1

O-RING,0.984" ID x 0.139" Width

hydraulic reservoir flange large (1 x 1-1/4 x 1/8") (A, B, C, D only)

1шт.

9

369790R91

HOSE AND TUBE ASSEMBLY, hydraulic reservoir (A, B, C, D only)

1шт.

SCREW, 3/8 x 1-3/8" hex-hd cap (A, B, C, D only)

3шт.

WASHER, 3/8" lock (A, B, C, D only)

3шт.

10

365442R1

CLAMP, hydraulic manifold tube support (A, B, C, D only)

1шт.

NUT, 1/4" (A, B, C, D only)

1шт.

SCREW, 1/4 x 2" hex-hd cap (A, B, C, D only)

1шт.

WASHER, 1/4" lock (A, B, C, D only)

1шт.

WASHER, 9/32 x 5/8 x .065" (A, B, C, D only)

2шт.

11

368636R91

HOSE AND TUBE ASSEMBLY, hydraulic pump manifold (composed of (2) clamp 39128H, (1) flange 369789R91, (1) hose 369428R1, (1) hose and tube assembly 369790R91) (A, B, C, D only)

1шт.

12

369428R1

HOSE

hydraulic pump suction (A, B, C, D only)

1шт.

13

39128H

CLAMP

hydraulic pump suction hose (A, B, C, D only)

2шт.

14

369789R91

FLANGE ASSEMBLY, hydraulic pump (A, B, C, D only)

1шт.

NUT, 3/8-NF hex (A, B, C, D only)

2шт.

SCREW, 3/8-NF x 3-1/2 hex-hd cap (for mounting flange to Thompson pump) (A, B, C, D only)

2шт.

SCREW, 3/8-NF x 4" hex-hd cap (for mounting flange to Pesco pump (A, B, C, D only)

2шт.

WASHER, 3/8" lock (A, B, C, D only)

2шт.

15

355965R1

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

hydraulic pump flange (15/16 x 1-3/16 x 1/8") (A, B, C, D only)

2шт.

16

368633R91

PUMP

ASSEMBLY, hydraulic (Thompson) (for components see list of parts under details of "Hydraulic Pump") (optional with 368894R92) (A, B, C, D only)

1шт.

16

3698894R92

PUMP ASSEMBLY, hydraulic (Pesco) (for components see list of parts under details of "hydraulic pump") (optional with 368633R91) (A, B, C, D only)

1шт.

SCREW, 3/8 x 3-1/4" hex-hd cap (for mounting pump, 368633R91) (A, B, C, D only)

2шт.

SCREW, 3/8 x 3-1/2" hex-hd cap (for mounting pump, 368894R92) (A, B, C, D only)

2шт.

WASHER, 3/8" lock (A, B, C, D only)

2шт.

17

124543

WOODRUFF KEY,#3, 1/8" x 1/2", HT

(A, B, C, D only) #3, 1/8" x 1/2", HT

1шт.

18

350709R1

GEAR

hydraulic pump drive (16 teeth) (A, B, C, D only)

1шт.

NUT, 3/8-NF jam (A, B, C, D only)

1шт.

19

351818R1

WASHER

hydraulic pump drive gear (A, B, C, D only)

1шт.

20

350708R2

GASKET

hydraulic pump (A, B, C, D only)

1шт.

21

R11

BRACKET ASSEMBLY, hydraulic manifold tube support (will work for 368951R11) (A, B, C, D only)

1шт.

SCREW, 7/16 x 7/8" hex-hd cap (A, B, C, D only)

1шт.

22

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

hydra-touch control valve (11/16 x 7/8 x 3/32")

1шт.

22

(A, E only)

6шт.

22

(B only)

12шт.

22

(C only)

15шт.

22

(D, G only)

3шт.

22

(F only)

9шт.

23

364880R1

PLUG

lift circuit (for tractors with power steering) (B, C only)

1шт.

24

355967R1

O-RING,0.364" ID x 0.003" Width

lift circuit plug (3/8 x 1/2 x 1/16") (for tractors with power steering) (B, C only)

1шт.

25

365981R92

VALVE ASSEMBLY - hydra-touch control (for components see list of parts under details of "hydra-touch control valve") (B, E, G only)

1шт.

25

(C, F only)

2шт.

362356R3

PLUG, 1/2" stl. sq. socket pipe (optional with 365240R1) (B, E, G only)

4шт.

(C, F only)

8шт.

365240R1

PLUG, 1/2" stl. sq. socket pipe (optional with 362356R3) (B, E, G only)

4шт.

(C, F only)

8шт.

26

366023R11

LEVER

ASSEMBLY, control valve hand (A, E, G only)

1шт.

(B, F only)

2шт.

(C only)

3шт.

27

361456R1

COVER, control valve (for tractors without power steering) (B, C, F, G only)

1шт.

27

364878R1

COVER, control valve (for tractors with power steering) (B, C only)

1шт.

SCREW, 7/16 x 3-3/4" hex-hd cap (B, E only)

4шт.

451309

SCREW, 7/16 x 6-1/4" hex-hd cap (C, F, G only)

4шт.

WASHER, 7/16" lock (B, C, E, F only)

4шт.

28

361457R1

COVER, control valve (A, D only)

1шт.

28

361457R1

COVER, control valve (for tractors without power steering) (B, C only)

1шт.

28

364878R1

COVER, control valve (for tractors with power steering) (B, C only)

1шт.

SCREW, 7/16 x 4" hex-hd. (D only)

4шт.

273163

KIT

SCREW, 7/16 x 6-1/2" hex-hd. cap (A, B, C only)

4шт.

WASHER, 7/16" medium lock (A, B, C only)

4шт.

WASHER, 7/16" external tooth lock (D only)

4шт.

29

365985R92

VALVE ASSEMBLY, hydra-touch control (for components see list of parts under details of "hydra-touch control valve") (A, B, C only)

1шт.

362356R3

PLUG, 1/2" stl. sq. socket pipe (optional with 365240R1) (A, B, C only)

4шт.

365240R1

PLUG, 1/2" stl. sq. socket pipe (optional with 362356R3) (A, B, C only)

4шт.

30

360621R94

VALVE

ASSEMBLY, regulator and safety (for components see list of parts under details of "regulator and safety valve") (for tractors without power steering) (A, B, C, D only)

1шт.

30

364841R96

VALVE ASSEMBLY, regulator, safety and flow control (for components see list of parts under details of "regulator safety and flow control valve") (for tractors with power steering) (A, B, C, D only)

1шт.

31

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

regulator and safety valve (11/16 x 7/8 x 3/32") (A, B, C, D only)

3шт.

32

364687R91

FILTER

STRAINER ASSEMBLY, oil (A, B, C, D only)

1шт.

33

219776

RING

1-1/8 jam (oil strainer tube) (A, B, C, D only)

1шт.

34

254954R1

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

oil strainer tube (1-1/16 x 1-5/16 x 1/8") (A, B, C, D only)

1шт.

35

366612R1

SPACER, hydra-touch valve lever lock (see note A) (A, B, C only)

1шт.

36

366613R1

SPRING

hydra-touch valve lever lock tension (see note A) (A, B, C only)

1шт.

37

366614R1

LOCK, hydra-touch valve lever (see note A) (A, B, C only)

1шт.

SCREW, 3/8 x 1" hex-hd. cap (A, B, C only)

1шт.

Q1504

WASHER

13/32 x 7/8" x 16 ga. (upper washer) (A, B, C only)

1шт.

Q5035

WASHER

17/32 x 1" x 16 ga. (lower washer) (A, B, C only)

1шт.

372703R1

FLUID, "Hy-Tran" (quart can) (A, B, C, D only)

1шт.

372704R1

TRANSMISSION OIL

FLUID, "Hy-Tran" (gallon can) (A, B, C, D only)

1шт.

372705R1

FLUID

"Hy-Tran" (five gallon can) (A, B, C, D only)

1шт.
