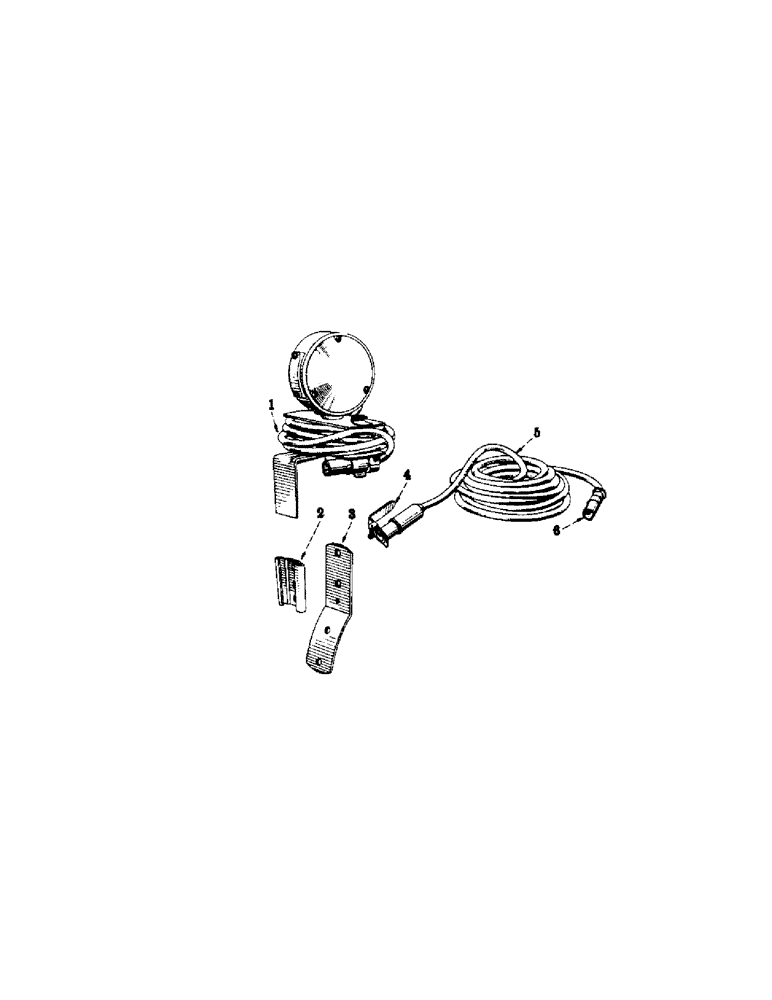

Запчасти Case IH 340 (086[A]) - ELECTRICAL SYSTEM, SAFETY LIGHT AND EXTENSION CABLE (06) - ELECTRICAL SYSTEMS

1

367813R91

LIGHT ASSEMBLY, safety (6 volt) for components see list of parts under details of "safety light") (unit A)

1шт.

1

367814R91

LIGHT ASSEMBLY, safety (12 volt) (for components see list of parts under details of "safety light") (unit B)

1шт.

2

363919R1

SOCKET

safety light bracket

1шт.

BOLT, 5/16 x 5/8" crg.

2шт.

NUT, 5/16" cd-pltd. lock

2шт.

WASHER, 5/16" cd-pltd. lock

2шт.

3

363920R1

BRACKET, safety light

1шт.

NUT, 5/16" cd-pltd.

2шт.

SCREW, 5/16 x 1-1/4" cd-pltd. slt-truss-hd. mach.

2шт.

WASHER, 5/16" cd-pltd. lock

2шт.

4

365446R91

SOCKET/RECEPTACLE

SOCKET ASSEMBLY, break-away connector (used with the extension cable) (see note)

1шт.

5

365444R91

CABLE W/PLUG AND SOCKET ASSEMBLY, twenty-four ft. extension (for tractors equipped with electrical break-away connector socket (see note)

1шт.

6

364559R91

PLUG

break-away connector socket (for use with 21/64" OD cable) (used with the extension cable) (see note)

1шт.
