(084[A]) - ELECTRICAL SYSTEM, BATTERY HOLDER FARMALL AND INTERNATIONAL 340

Запчасти Case IH 340 (084[A]) - ELECTRICAL SYSTEM, BATTERY HOLDER FARMALL AND INTERNATIONAL 340 (06) - ELECTRICAL SYSTEMS

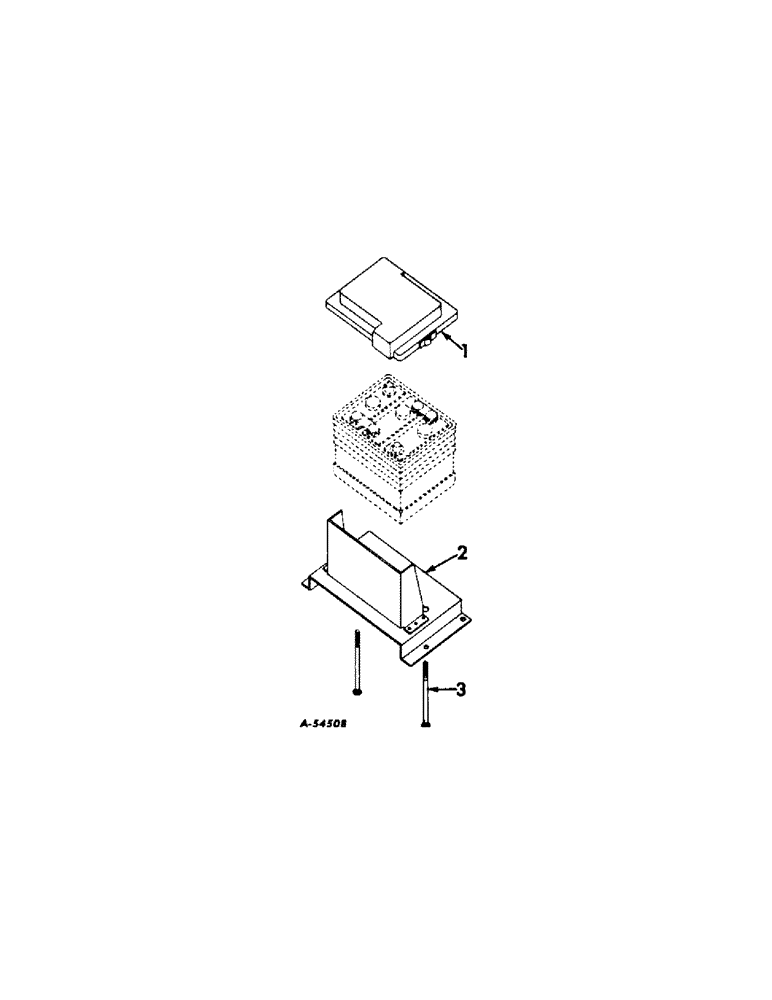

Схема запчастей Case IH 340 - (084[A]) - ELECTRICAL SYSTEM, BATTERY HOLDER FARMALL AND INTERNATIONAL 340 (06) - ELECTRICAL SYSTEMS
1
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

370553R11

COVER ASSEMBLY, battery hold down

1шт.

2

370555R11

SHIELD ASSEMBLY, battery support

1шт.

3

911248R1

BOLT, battery hold down

2шт.

NUT, 1/4" type A wing

2шт.

WASHER, 9/32 x 5/8" x 16 ga.

2шт.

Выбрано товаров: 5
