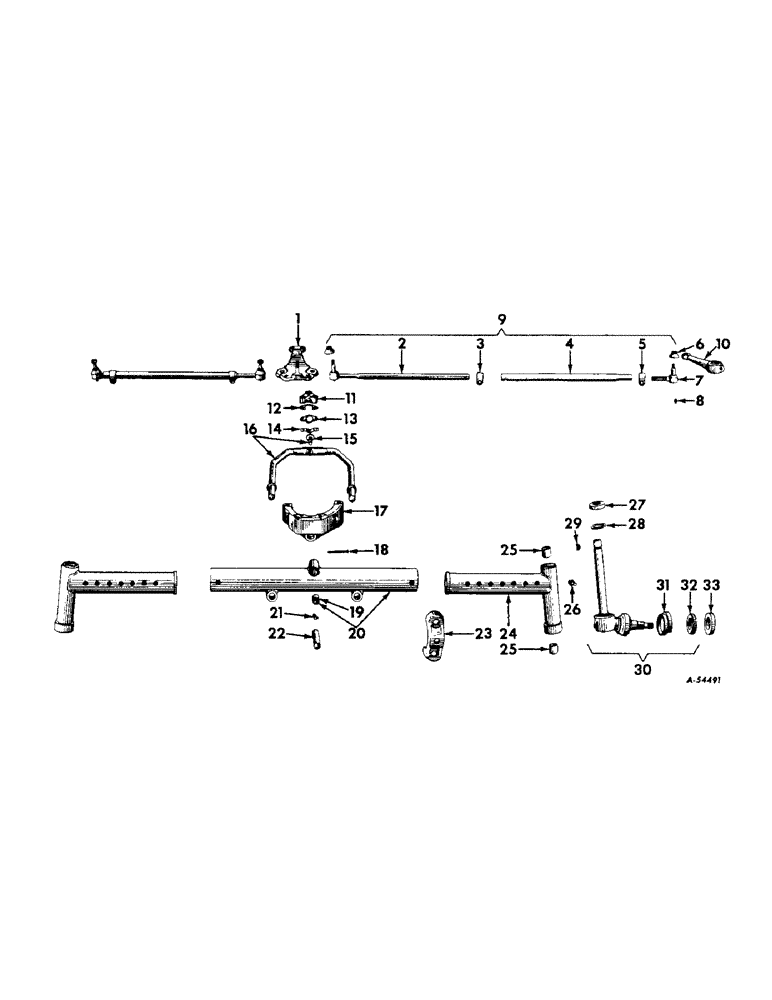

Запчасти Case IH 340 (179) - FRONT AXLE, ADJUSTABLE WIDE TREAD FRONT AXLE, FARMALL 340 SERIES (04) - FRONT AXLE

1

371018R1

ARM, steering gear

1шт.

NUT, 1/2" NF

2шт.

NUT, 5/8"

2шт.

SCREW, 5/8 x 1-1/2" hex-hd. cap

2шт.

WASHER, 17/32 x 1-1/16" x .095

2шт.

2

371021R11

ROD

TIE ROD w/COVER, 358209R1, nut, 102647 and pin, 103385 assembly

2шт.

NUT, 1/2" NF slt.

2шт.

PIN, 1/8 x 1" cotter

2шт.

3

43747D

CLAMP

tie rod

2шт.

NUT, 7/16"

2шт.

SCREW, 7/16 x 1-3/4" hex-hd. cap

2шт.

4

371020R1

TUBE,0.766" ID, 1.005" OD, 16.11" Length

tie rod (2 for unit A)

1шт.

4

371023R1

TUBE,0.766" ID, 1.005" OD, 20.11" Length

tie rod (2 for unit B)

1шт.

5

356543R1

CLAMP

tie rod

2шт.

NUT, 3/8"

2шт.

SCREW, 3/8 x 1-1/2" hex-hd. cap

2шт.

6

358209R1

COVER

tie rod end dust

4шт.

7

356540R91

END

w/COVER, 358209R1, nut, 102647 and pin, 103385 assembly, tie rod

1шт.

NUT, 1/2" NF slt.

2шт.

PIN, 1/2 x 1" cotter

2шт.

8

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Straight (Optional with 271287) 1/4"-28 NPT x .54" lg

1шт.

8

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Straight (Optional with 109454) 1/4"-28 NPT x .54" lg

1шт.

9

370019R91

PULLEY

TIE ROD ASSEMBLY, adjustable (2 for unit A)

1шт.

9

371022R91

ROD

TIE ROD ASSEMBLY, adjustable (2 for unit B)

1шт.

10

371014R1

ARM, steering knuckle, LH

1шт.

10

371015R1

ARM, steering knuckle, RH

1шт.

SCREW, 1/2 x 2-1/2" hex-hd. cap

2шт.

11

371004R1

SOCKET

stay rod ball

1шт.

SCREW, 5/8 x 1-1/2" hex-hd. cap

1шт.

SCREW, 5/8 x 3-3/4" hex-hd. cap

2шт.

12

371006R1

SHIM

stay rod ball socket cap

3шт.

13

371005R1

SOCKET

CAP, stay rod ball socket

1шт.

14

37107R1

PLATE, stay rod ball socket cap lock

1шт.

15

365453R1

BALL

stay rod socket

1шт.

NUT, 5/8NF slt.

1шт.

PIN, 1/8 x 1-1/2" cotter

1шт.

16

371002R11

STAY ROD ASSEMBLY

1шт.

NUT, 1-3/8NF jam

2шт.

17

370996R1

BRACKET, front axle pivot

1шт.

SCREW, 5/8 x 1-3/4" hex-hd. cap

2шт.

SCREW, 5/8 x 4" hex-hd. cap

2шт.

18

Q1436

PIN,3/8" x 2 9/16"

front axle pivot bracket (3/8 x 2-9/16")

1шт.

PIN, 1/8 x 3/4" cotter

1шт.

19

368608R1

BUSHING,31.76mm ID x 34.95mm OD x 53.34mm L

front axle pivot

1шт.

20

370998R11

AXLE ASSEMBLY, front (unit A)

1шт.

20

371001R11

AXLE ASSEMBLY, front (unit B)

1шт.

21

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 x 45deg. lubrication (optional with 271283)

1шт.

21

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, 1/8-27 x 45deg. lubrication (optional with 126152)

1шт.

22

370997R1

PIN

front axle pivot

1шт.

23

368615R1

CLAMP, front axle extension

4шт.

NUT, 5/8"

6шт.

SCREW, 5/8 x 3-1/2" hex-hd. cap

4шт.

SCREW, 5/8 x 5" hex-hd. cap

2шт.

24

371008R11

EXTENSION w/TWO BUSHINGS, 368621R1 assembly, front axle (2 for unit A)

1шт.

24

371010R11

EXTENSION w/TWO BUSHINGS, 368621R1 assembly, front axle (2 for unit B)

1шт.

25

368621R1

BUSHING,36.2mm ID x 39.47mm OD x 38.35mm L

steering knuckle post

4шт.

26

110161

FITTING, 3/16" straight drive type lubrication (optional with 125617)

2шт.

26

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16" straight drive type lubrication (optional with 110161)

2шт.

27

365317R91

THRUST BEARING,36.51mm ID x 2.48mm OD x 16.51mm W

steering knuckle thrust

2шт.

28

368627R1

WASHER

steering knuckle felt

2шт.

29

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

2шт.

30

371429R91

KNUCKLE

ASSEMBLY, steering

2шт.

NUT, 5/8NF slt.

2шт.

PIN, 1/8 x 1-1/4" cotter

2шт.

31

43462D

DEFLECTOR

steering knuckle dust

2шт.

32

368629R91

SEAL

front wheel dust

2шт.

33

369936R1

WASHER

front wheel outer bearing retainer

2шт.
