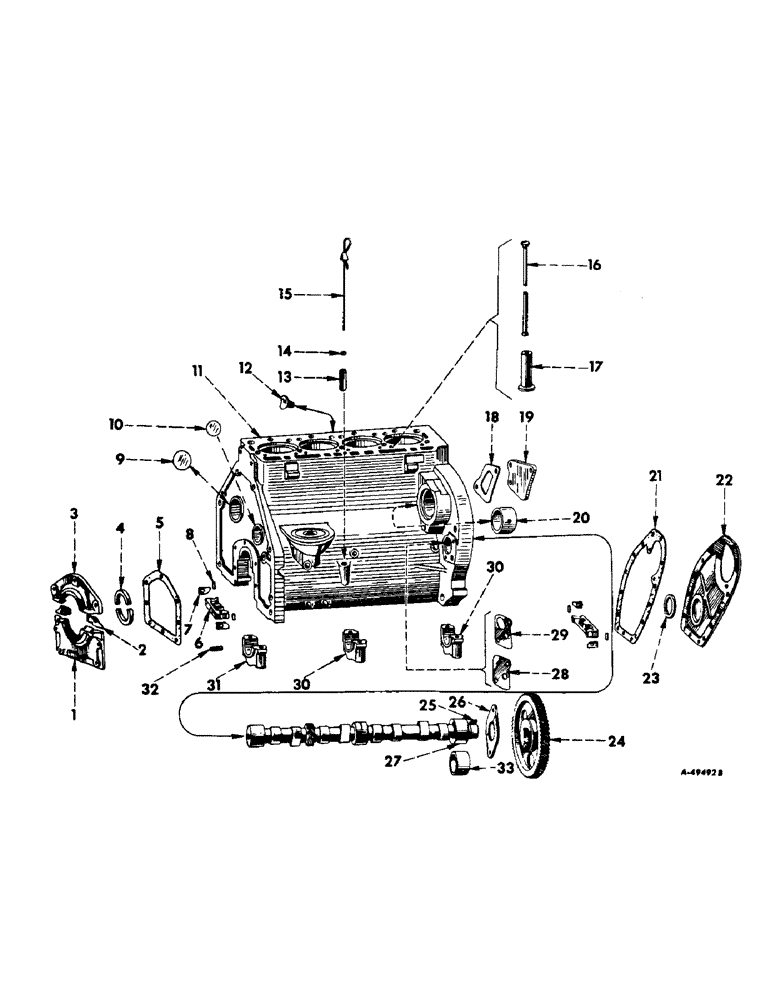

Запчасти Case IH 340 (015) - CARBURETED ENGINE, CRANKCASE, FRONT COVER AND CAMSHAFT (01) - ENGINE

1

6102D

RETAINER

crankshaft lower real oil seal

1шт.

*

SCREW, 5/16 x 7/8" hex-hd cap

5шт.

*

SCREW, 1/4 x 7/8" hex-hd cap

2шт.

*

WASHER, 5/16" lock

5шт.

*

WASHER, 1/4" lock

2шт.

2

43447D

GASKET

crankshaft rear oil seal retainer center

2шт.

3

6101D

RETAINER

crankshaft upper rear oil seal

1шт.

*

SCREW, 5/16 x 7/8" hex-hd cap

3шт.

*

WASHER, 5/16" lock

3шт.

4

24425D

OIL SEAL,24.61mm ID x 50.01mm OD x 4.76mm Thk

OIL SEAL, crankshaft felt

2шт.

5

43448D

GASKET

crankshaft rear oil seal retainer

1шт.

6

6100DA

SUPPORT ASSY.

PLATE, crankshaft front and rear oil seal retainer

2шт.

7

43446DA

GASKET,1.29mm Thk

crankshaft oil seal retainer plate

4шт.

8

43445DA

PAD

PLUG, crankshaft oil seal retainer plate felt

4шт.

9

63556R1

PLUG

2" dia. expansion (crankshaft core)

1шт.

10

172576

PLUG,Exp, 1 5/8"

1-5/8" dia. expansion (camshaft rear)

1шт.

11

367727R21

1шт.

CRANKCASE ASSEMBLY, (Composed of (1) bushing 43439DBR, (1) bushing 375747R1, (2) cap 367729R1 (NSS), (1) cap 367730R1 (NSS), (1) crankcase 367727R2 (NSS), (2) dowel 368568R1, (1) plug 103866, (2) plug 143997, (1) plug 172576, (1) plug 172592, (3) plug 365101R1, (1) sleeve 365936R1, (6) washer 58516H)

1шт.

*

PLUG, 1/4" sq. socket stl. pipe

2шт.

*

PLUG, 1/4" CI sq-hd pipe

1шт.

*

365101R1

PLUG

oil header

3шт.

*

SCREW, 5/8 x 2" hex-hd cap

5шт.

*

SCREW, 5/8 x 2-3/4" hex-hd cap

1шт.

12

45314DC

PLUG

water drain

1шт.

13

365936R1

SLEEVE, oil level gage

1шт.

14

34259H

WASHER, oil level gage felt

1шт.

15

362611R21

GAUGE

GAGE ASSEMBLY, oil lever

1шт.

16

47386D

ROD

valve push (optional with 357548R1 and 360213R91)

8шт.

16

357548R1

ROD

valve push (optional with 47386D and 360213R91)

8шт.

16

360213R91

ROD

valve push (optional with 47386D and 657548R1)

8шт.

17

47384D

TAPPET

valve (optional with 356979R1)

8шт.

17

356979R1

TAPPET

valve (optional with 47384D)

8шт.

18

46871D

GASKET

water passage cover

1шт.

19

367733R1

COVER, water passage (optional with 367735R11)

1шт.

19

367735R11

COVER ASSEMBLY, water passage (optional with 367733R1)

1шт.

*

SCREW, 3/8 x 1" hex-hd cap

2шт.

*

WASHER, 3/8" lock

2шт.

20

43439DBR

BUSHING,50.77mm ID x 54.15mm OD x 33.34mm L

distributor gear

1шт.

21

46179DD

GASKET

GASKET, crankcase front cover

1шт.

22

46122DDX

COVER

ASSEMBLY, crankcase front (also order package 378193R91 on C-135 engines, 501 to )

1шт.

*

SCREW, 5/16 x 5/8" hex-hd cap

11шт.

*

SCREW, 3/8 x 3/4" hex-hd cap

1шт.

*

WASHER, 5/16" lock

11шт.

*

WASHER, 3/8" lock

1шт.

*

WASHER, 11/32 x 11/16" x 16 ga.

11шт.

*

WASHER, 13/32 x 13/16 x 16 ga.

1шт.

23

49177D

SEAL

OIL SEAL, crankcase front (order Oil Seal Assembly, 378193R91), Start Serial: C-135501

1шт.

23

378193R91

SEAL

OIL SEAL W/RING ASSEMBLY, crankcase front cover C-135 up

1шт.

24

6779DB

GEAR

camshaft (66 teeth)

1шт.

25

127559

TAPE

no. 91 woodruff

1шт.

26

43249D

PLATE

camshaft thrust (optional with 374704R1)

1шт.

26

374704R1

PLATE ASSY.

PLATE, camshaft thrust (optional with 43249D)

1шт.

*

SCREW, 3/8 x 3/4" hex-hd cap

2шт.

*

WASHER, 3/8" lock

1шт.

27

353609R3

PACKAGE

CAMSHAFT

1шт.

28

251067R1

COVER

hydraulic pump pad (for tractors not equipped with hydra- touch system)

1шт.

*

SCREW, 3/8 x 3/4" hex-hd cap

2шт.

*

WASHER, 3/8" lock

2шт.

29

350708R1

GASKET

hydraulic pump pad cover (for tractors not equipped with hydra-touch system)

1шт.

30

CAP, crankshaft front and center bearing (not service separately - order crankcase assembly)

2шт.

*

BOLT, 1/2 x 3" hex-hd lock

4шт.

*

58516H

WASHER,17/32" x 1 1/16" x .095", HDN

crankshaft bearing cap bolt

4шт.

31

CAP, crankshaft rear bearing (Not Serviced Separately - order crankcase assembly)

1шт.

*

BOLT, 1/2 x 3" hex-hd lock

2шт.

*

58516H

WASHER,17/32" x 1 1/16" x .095", HDN

crankshaft bearing cap bolt

2шт.

32

368568R1

DOWEL, clutch housing

1шт.

33

375747R1

BUSHING,46.19mm ID x 49.45mm OD x 30.43mm L

camshaft front (used only with crankcase, 367727R2)

1шт.
