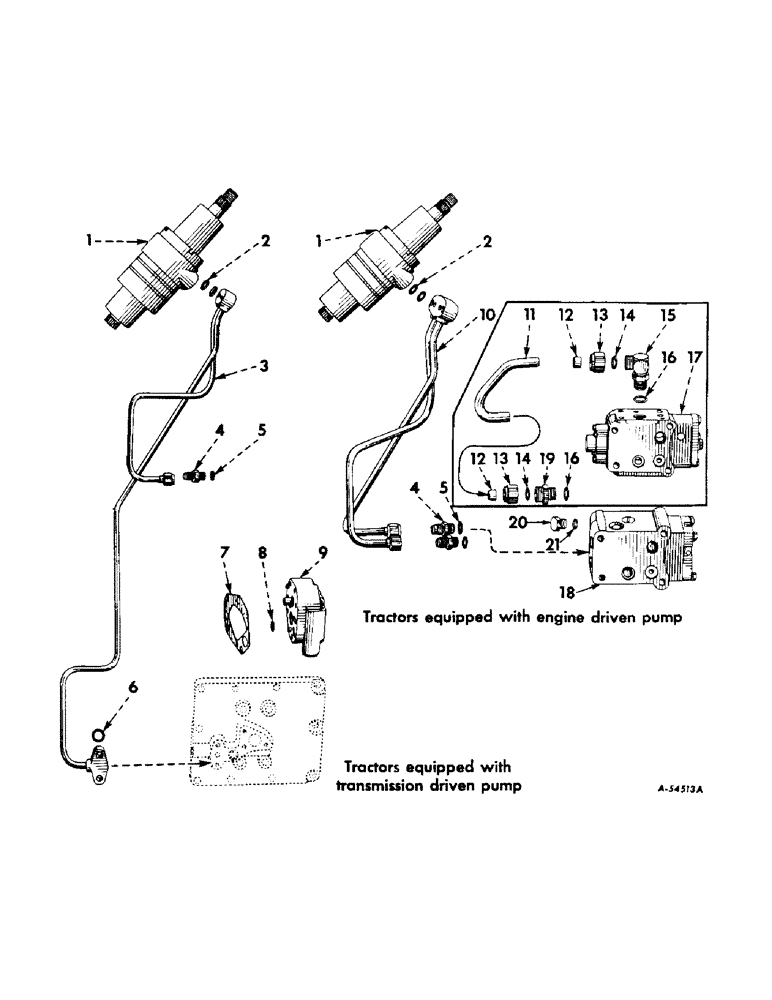

Запчасти Case IH 340 (171) - STEERING MECHANISM, POWER STEERING, FARMALL 340 SERIES Steering Mechanism

1

373069R92

UNIT, hydraulic power steering (for components see "Power Steering Unit")

1шт.

373090R1

SCREW, 5/16 x 1" hex-soc-hd

3шт.

2

355966R1

O-RING,0.424" ID x 0.103" Width

power steering flange (7/16 x 5/8 x 3/32")

2шт.

3

373252R93

TUBES ASSEMBLY, power steering (unit A)

1шт.

*

SCREW, 5/16 x 1-1/4" hex-hd cap (2 for unit A)

1шт.

*

SCREW, 5/16 x 1-3/4" hex-hd cap (2 for unit A)

1шт.

*

WASHER, 5/16" lock (4 for unit A)

1шт.

4

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8" tubing (o-ring type) (unit A; 2 for units B and C)

1шт.

5

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8" tube fitting (unit A; 2 for units B and C)

1шт.

6

252738R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

power steering tube flange (3/8 x 9/16 x 3/32") (unit A)

1шт.

7

371543R1

GASKET

power steering pump (unit A)

1шт.

8

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

power steering pump (9/16 x 11/16 x 1/16") (unit A)

1шт.

9

371135R92

PUMP

ASSEMBLY, power steering (Cessna) (unit A) (for components see list of parts under details of "Power Steering Pump") (optional with 370924R92)

1шт.

9

1949250C1

REMAN-HYD PUMP

340 FARMALL DIESEL, 340 FARMALL GAS, Both TRACTOR, ASSEMBLY, power steering (Cessna), 340 SERIES (1/58-12/63)

1шт.

9

1949251C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

371802R1

BOLT, power steering pump short (3 for unit A)

1шт.

371803R1

BOLT,Hex, 3/8" - 16 x 2 1/2"

power steering pump long (unit A)

1шт.

9

370924R92

PUMP

ASSEMBLY, power steering (Thompson) (unit A) (for components see list of parts under details of "Power Steering Pump") (optional with 371135R92)

1шт.

9

1949250C1

REMAN-HYD PUMP

Reman for New P/N 370924R92

1шт.

9

1949251C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

371803R1

BOLT,Hex, 3/8" - 16 x 2 1/2"

power steering pump (4 for unit A)

1шт.

10

373302R92

TUBES ASSEMBLY, power steering (unit B)

1шт.

*

SCREW, 5/16 x 1-1/4" hex-hd cap (2 for unit B)

1шт.

*

WASHER, 5/16" lock (2 for unit B)

1шт.

11

371178R1

TUBE, regulator to valve (unit B) (see note A and B)

1шт.

12

364646R1

SPACER

SLEEVE, 5/8" OD tubing (2 for unit B) (see note A and B)

1шт.

13

364645R1

NUT, 5/8" OD tubing (2 for unit B) (see note A and B)

1шт.

14

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

connector or elbow (5/8 x 13/16 x 3/32") (2 for unit B) (see note A and B)

1шт.

15

371948R91

ELBOW ASSEMBLY, 5/8" tubing, 90deg. (unit B) (see notes A and B)

1шт.

16

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8" OD tubing (3/4 x 15/16 x 3/32") (2 for unit B) (see notes A and B)

1шт.

17

371067R92

VALVE ASSEMBLY, hydra-touch control (unit B) (for components see list of parts under details of "Hydra-Touch Control Valve") (see notes A and B)

1шт.

18

364841R96

VALVE ASSEMBLY, regulator, safety and flow control (unit B) (for components see list of parts under details of "Regulator Safety and Flow Control Valve")

1шт.

19

371970R1

CONNECTOR, 5/8" OD tubing (unit B) (see notes A and B)

1шт.

20

9410360

PLUG

valve (unit C) (see note C)

1шт.

21

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

valve plug (3/4 x 15/16 x 3/32") (unit C) (see note C)

1шт.

366566R1

CAP

steering wheel monogrammed (illustrated with "Steering Mechanism")

1шт.

373236R91

JOINT ASSEMBLY, center steering shaft universal (illustrated with "Steering Mechanism")

1шт.

373235R1

SHAFT, front steering (less yoke) (illustrated with "Steering Mechanism")

1шт.

369657R1

YOKE

front steering shaft (adjustable) (illustrated with "Steering Mechanism")

1шт.

*

NUT, 3/8"

1шт.

*

SCREW, 3/8 x 1-3/4" hex-hd

1шт.

*

WASHER, 3/8" lock

1шт.
