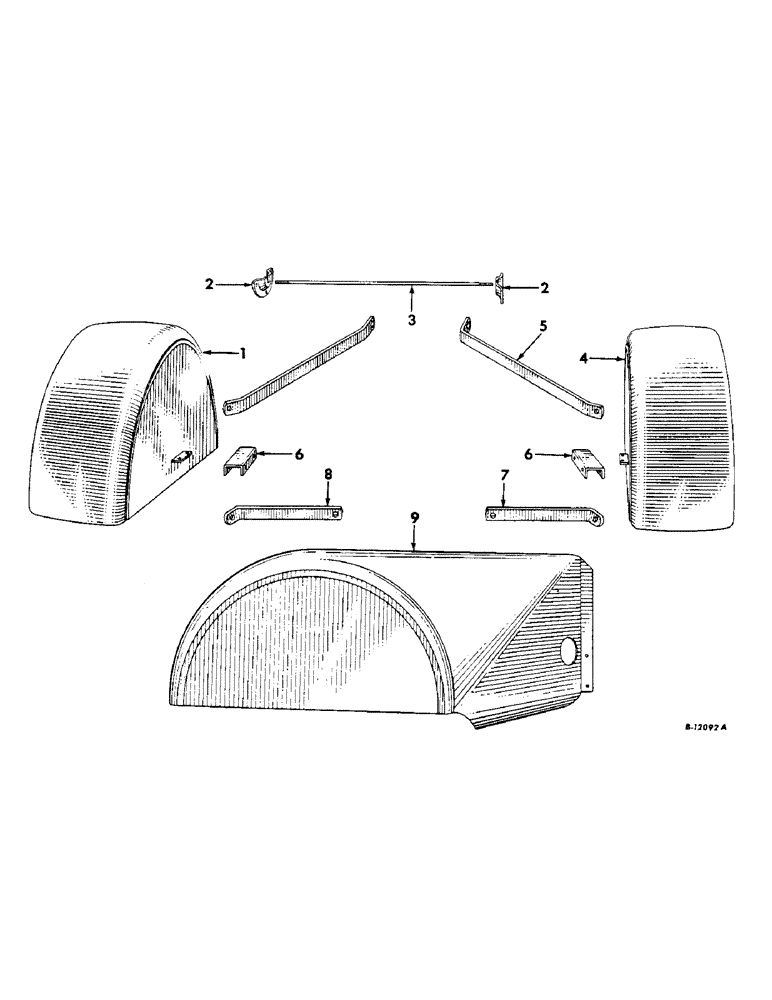

Запчасти Case IH 340 (288) - SHEET METAL, GRILLES, AND FENDERS, ORCHARD FENDERS, INTERNATIONAL 330 Sheet Metal, Grilles & Fenders

1

366227R92

FENDER w/BRACKET, 366232R1 assembly, LH (unit B)

1шт.

1

366238R92

FENDER w/BRACKET, 366232R1, assembly, LH (unit C)

1шт.

SCREW, 1/2 x 1-1/4" hex-hd. cap (4 for units B and C)

1шт.

2

366232R1

BRACKET, fender tie rod

2шт.

NUT, 3/8"

6шт.

SCREW, 3/8 x 1-1/8" hex-hd. cap

6шт.

WASHER, 3/8" lock

6шт.

3

366251R1

TIE ROD, fender (units A and B)

1шт.

3

366264R1

TIE ROD, fender (unit C)

1шт.

NUT, 5/8" jam

4шт.

WASHER, 21/32 x 1-5/16" x .095

4шт.

4

366228R92

FENDER w/BRACKET, 366232R1 assembly, RH (unit B)

1шт.

4

366239R92

FENDER w/BRACKET, 366232R1 assembly, RH (unit C)

1шт.

SCREW, 1/2 x 1-1/4" hex-hd. cap (4 for units B and C)

1шт.

5

373225R1

BRACE, fender front (2 for unit B)

1шт.

5

373230R1

BRACE, fender front (2 for unit C)

1шт.

NUT, 1/2" (2 for units B and C)

1шт.

SCREW, 1/2 x 1" hex-hd. cap (2 for units B and C)

1шт.

SCREW, 3/4 x 1-1/4" hex-hd. cap (2 for units B and C)

1шт.

6

366252R1

BRACKET, fender front (2 for unit B)

1шт.

6

366265R1

BRACKET, fender front (2 for unit C)

1шт.

NUT, 3/8" (4 for units B and C)

1шт.

SCREW, 3/8 x 3/4" hex-hd. cap (8 for units B and C)

1шт.

7

373224R1

BRACE, fender RH rear (units A and B)

1шт.

7

373229R1

BRACE, fender RH rear (unit C)

1шт.

NUT, 1/2"

1шт.

SCREW, 1/2 x 1-1/2" hex-hd. cap

1шт.

SCREW, 5/8 x 1-1/2" hex-hd. cap

1шт.

8

373223R1

BRACE, fender LH rear (units A and B)

1шт.

8

373228R1

BRACE, fender LH rear (unit C)

1шт.

NUT, 1/2"

1шт.

SCREW, 1/2 x 1-1/2" hex-hd. cap

1шт.

9

366226R92

FENDER and COWLING w/BRACKET, 366232R1 assembly, RH (unit A)

1шт.

9

366225R92

FENDER and COWLING w/BRACKET, 366232R1 assembly, LH (unit A)

1шт.

SCREW, 1/2 x 1-1/4" hex-hd. cap (8 for unit A)

1шт.

SCREW, 3/4 x 1-3/8" hex-hd. cap (4 for unit A)

1шт.

WASHER, 3/4" lock (4 for unit A)

1шт.

366253R1

SPACER, independent power take-off operating handle mounting bracket (21/32" long)

2шт.

368133R1

SPACER

independent power take-off bracket (.38" long)

1шт.
