Запчасти Case IH 340 (280) - SHEET METAL, GRILLES, AND FENDERS, HOOD AND RADIATOR GRILLE, 340 SERIES Sheet Metal, Grilles & Fenders

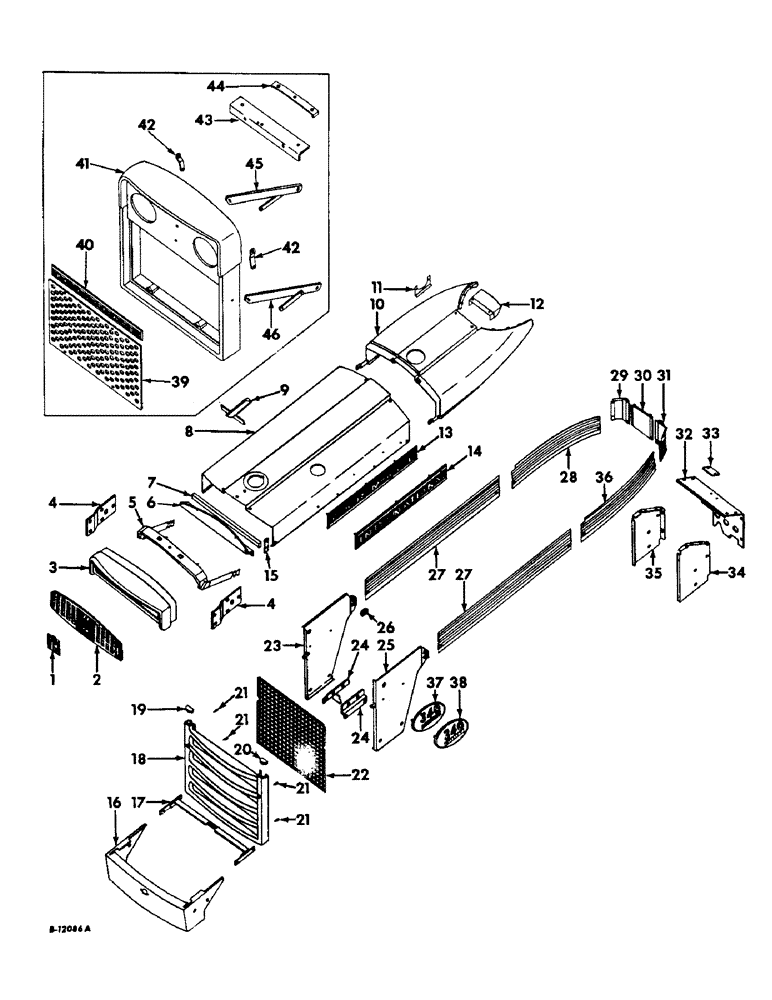

Схема запчастей Case IH 340 - (280) - SHEET METAL, GRILLES, AND FENDERS, HOOD AND RADIATOR GRILLE, 340 SERIES Sheet Metal, Grilles & Fenders
29
42
24
5
25
36
26
1
8
27
24
21
21
14
46
44
43
12
34
20
19
4
2
3
13
27
32
28
37
18
45
42
23
10
6
38
4
15
9
21
22
11
39
7
21
35
33
30
16
31
41
40
17

Артикул

Название

Примечание

Количество

1

368523R4

PRODUCT GRAPHIC

EMBLEM, IH hood

1шт.

.

SCREW, no. 10 x 5/16" rd-hd. cr-rec. mach.

2шт.

2

369260R1

GRILLE, hood

1шт.

.

369917R1

SCREW,Hex Wshr Hd, 1/4" - 20 x 5/8"

hood grille

3шт.

3

369256R11

HOUSING ASSEMBLY, hood grille

1шт.

.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16" floating case

4шт.

.

SCREW, 5/16 x 3/8" hex-hd. cap

3шт.

4

369340R1

PLATE, radiator and side sheet support

2шт.

.

SCREW, 3/8 x 5/8" hex-hd. cap

4шт.

5

369257R11

SUPPORT ASSEMBLY, hood grille housing

1шт.

6

370089R1

BAFFLE, radiator

1шт.

.

NUT, no. 10

4шт.

7

370181R1

GASKET

radiator top baffle

1шт.

8

369869R11

HOOD ASSEMBLY, (tractors with vertical exhaust) (gasoline)

1шт.

8

375106R11

HOOD ASSEMBLY, (tractors with vertical exhaust) (diesel)

1шт.

8

375230R11

HOOD ASSEMBLY, (industrial tractors with vertical exhaust) (gasoline)

1шт.

8

375301R11

HOOD ASSEMBLY, (industrial tractors with vertical exhaust) (diesel)

1шт.

8

369325R11

HOOD ASSEMBLY, (tractors with underslung exhaust) (gasoline)

1шт.

8

375107R11

HOOD ASSEMBLY, (tractors with underslung exhaust) (diesel)

1шт.

8

375232R11

HOOD ASSEMBLY, (industrial tractors with underslung exhaust) (gasoline)

1шт.

8

375300R11

HOOD ASSEMBLY, (industrial tractors with underslung exhaust) (diesel)

1шт.

.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16 x 5/8" hex-hd. cap

8шт.

9

369180R1

PRODUCT GRAPHIC

ORNAMENT, hood

1шт.

9

369180R1GV

DECAL

Value, Ornament, Hood

1шт.

.

SCREW w/WASHER, no. 10 x 7/16" hex-hd. mach.

2шт.

10

369683R11

HOUSING ASSEMBLY, instrument panel (Farmall 340 Series)

1шт.

10

369267R11

HOUSING ASSEMBLY, instrument panel (International 340 Series)

1шт.

.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16" floating cage

2шт.

.

369916R2

SCREW,Hex Wshr Hd, #10 - 24 x 7/16"

instrument panel housing (no. 10 x 7/16")

8шт.

.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, instrument panel housing (5/16 x 5/8")

6шт.

11

369269R1

GASKET

PLATE, instrument panel housing closure (tractors w/o Hydra-Touch System)

1шт.

11

370182R1

PLATE, instrument panel housing closure (tractors w/Hydra-Touch System)

1шт.

.

166637

HANDLE

SCREW, no. 10 x 1/4" rd-hd. cr-rec. self tapping

2шт.

12

369268R11

CHANNEL ASSEMBLY, instrument panel housing

1шт.

13

369058R1

PLATE, McCormick Farmall name

2шт.

.

370786R1

FASTENER

tubular clip

12шт.

14

369059R1

PRODUCT GRAPHIC

PLATE, International name

2шт.

14

375225R1

PLATE, International name (for industrial tractors)

2шт.

14

375439R1

PLATE, International name (for International 340 Series tractors painted yellow)

2шт.

.

370786R1

FASTENER

tubular clip

12шт.

15

369173R1

SPRING

hood

6шт.

16

369329R11

PAN ASSEMBLY, radiator grille (Farmall 340 Series)

1шт.

.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, radiator grilled pan

4шт.

17

369330R91

BRACKET ASSEMBLY, grille pan (Farmall 340 Series)

1шт.

.

SCREW, 5/16 x 3/4" hex-hd. cap

2шт.

.

48712D

SPACER, grille pan mounting bracket

2шт.

18

368718R11

GRILLE ASSEMBLY, radiator

1шт.

.

369866R1

NUT

1/4" quick release fastener

2шт.

.

372784R1

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

radiator grille

2шт.

19

369956R1

CAP, radiator grille RH

1шт.

.

9404121

SCREW, no. 4 pan-hd. slt. tapping type D

1шт.

20

369955R1

CAP, radiator grille LH

1шт.

.

9404121

SCREW, no. 4 pan-hd. slt. tapping type D

1шт.

21

368175R1

BUMPER

radiator grille flange

4шт.

22

368720R1

SCREW, radiator grille

1шт.

23

369262R11

SIDE SHEET ASSEMBLY, radiator grille RH

1шт.

23

375234R91

SIDE SHEET ASSEMBLY, radiator grille RH (industrial tractors)

1шт.

.

NUT, 5/16"

1шт.

.

NUT, 7/16"

1шт.

.

SCREW, 5/16 x 1/2" hex-hd. cap

1шт.

.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16 x 5/8" hex-washer-hd. cap

2шт.

.

369344R1

SCREW, 7/16 x 5/8" hex-washer- hd. cap

1шт.

24

369331R11

BRACKET ASSEMBLY, side sheet mounting (carbureted engine tractors)

2шт.

24

371414R91

BRACKET ASSEMBLY, side sheet mounting (diesel engine tractors)

2шт.

.

SCREW, 3/8 x 5/8" hex-hd. cap

4шт.

25

369261R11

SIDE SHEET ASSEMBLY, radiator grille LH

1шт.

25

375233R91

SIDE SHEET ASSEMBLY, radiator grille LH (industrial tractors)

1шт.

.

NUT, 5/16"

1шт.

.

NUT, 7/16"

1шт.

.

SCREW, 5/16 x 1/2" hex-hd. cap

1шт.

.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16 x 5/8" hex-washer-hd. cap

2шт.

.

369344R1

SCREW, 7/16 x 5/8" hex-washer-hd. cap

1шт.

26

369865R2

FASTENER

RECEPTACLE, quick release fastener

4шт.

.

372152R1

RIVET, .088 x 5/32" ov-hd. tubular

8шт.

27

369326R1

SKIRT, hood

2шт.

.

369866R1

NUT

1/4" quick release fastener

4шт.

.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

hood skirt

4шт.

28

369271R11

SKIRT ASSEMBLY, RH instrument panel housing

1шт.

.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, instrument panel housing skirt

1шт.

29

369274R1

SKIRT, instrument panel housing RH corner

1шт.

30

369275R11

SKIRT ASSEMBLY, instrument panel housing rear (carbureted engine tractors)

1шт.

30

369851R11

SKIRT ASSEMBLY, instrument panel housing rear (diesel engine tractors)

1шт.

.

369916R2

SCREW,Hex Wshr Hd, #10 - 24 x 7/16"

instrument panel housing rear skirt

4шт.

31

369273R1

SKIRT, instrument panel housing LH corner

1шт.

32

369278R1

COVER, valve housing front

1шт.

.

192280

HOLE PLUG BUTTON,1 1/4"

PLUG, 1-1/4" button (tractors w/o Hydra-Touch System)

3шт.

.

369916R2

SCREW,Hex Wshr Hd, #10 - 24 x 7/16"

valve housing front cover

8шт.

33

371372R1

PLATE, gear shift (tractors w/o torque amplifier)

1шт.

33

371371R1

PLATE, gear shift (tractors w/torque amplifier)

1шт.

.

9402597

RIVET, 1/16 x 3/16" mushroom hd. al.

2шт.

34

369276R11

COVER ASSEMBLY, LH valve housing

1шт.

.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, valve housing cover

2шт.

35

369277R11

COVER ASSEMBLY, RH valve housing

1шт.

.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, valve housing cover

2шт.

36

369270R11

SKIRT ASSEMBLY, LH instrument panel housing

1шт.

.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, instrument panel housing skirt

1шт.

37

369110R1

PLATE, 340 model symbol (Farmall 340)

2шт.

37

375193R1

PLATE, 340 Diesel model symbol (Farmall 340 diesel)

2шт.

37

375226R1

PLATE, 340 model symbol (for industrial tractors)

2шт.

.

370786R1

FASTENER

tubular clip

4шт.

38

369111R1

PLATE, 340 utility model symbol (International 340)

2шт.

38

375194R1

PLATE, 340 diesel utility, model symbol (International 340 diesel)

2шт.

38

375446R1

PLATE, 340 utility model symbol (for industrial 340 tractors painted yellow)

1шт.

38

375447R1

PLATE, 340 diesel utility model symbol (for International 340 diesel tractors painted yellow)

1шт.

.

370786R1

FASTENER

tubular clip

4шт.

39

375243R1

GRILLE, radiator guard

1шт.

.

SCREW, 5/16 x 1" cd-pltd. hex-hd. cap

4шт.

.

WASHER, 5/16" cd-pltd. lock

4шт.

40

375228R1

PLATE, industrial name

1шт.

.

166658

SCREW, no. 10 x 3/4" cr-rec-rd-hd. tapping

3шт.

41

375242R1

GUARD, radiator

1шт.

.

SCREW, 1/2 x 1-1/2" hex-hd. cap

2шт.

.

SCREW, 1/2 x 2-1/2" hex-hd. cap

2шт.

.

WASHER, 17/32 x 1-1/16" x 13 ga.

4шт.

42

375245R1

SUPPORT, hood side front

2шт.

.

NUT, 5/16"

2шт.

.

NUT, 7/16"

2шт.

.

WASHER, 11/32 x 11/16" x 16 ga.

2шт.

43

375246R1

BRACKET, headlight mounting

1шт.

.

SCREW, 3/8 x 1-5/8" hex-hd. cap

2шт.

44

375244R11

SUPPORT ASSEMBLY, hood top front

1шт.

.

SCREW, 5/16 x 3/8" hex-hd. cap

1шт.

45

375236R91

BRACE ASSEMBLY, radiator guard RH

1шт.

.

SCREW, 1/2 x 1-1/2" hex-hd. cap

1шт.

46

375235R91

BRACE ASSEMBLY, radiator guard LH

1шт.

.

SCREW, 1/2 x 1-1/2" hex-hd. cap

1шт.

.

375219R91

PARTS ACCESSORY, industrial tractor consists of ref. nos. 39 thru 46 including attaching parts and (14) clip 445207, (4) clip 370786R1, (2) plate 375225R1, (2) plate 375226R1

1шт.
