(094) - ELECTRICAL SYSTEM, STARTING & LIGHTING, FARMALL 340 DIESEL, IGNITION & STARTING, INTL 340 DIESEL

Запчасти Case IH 340 (094) - ELECTRICAL SYSTEM, STARTING & LIGHTING, FARMALL 340 DIESEL, IGNITION & STARTING, INTL 340 DIESEL (06) - ELECTRICAL SYSTEMS

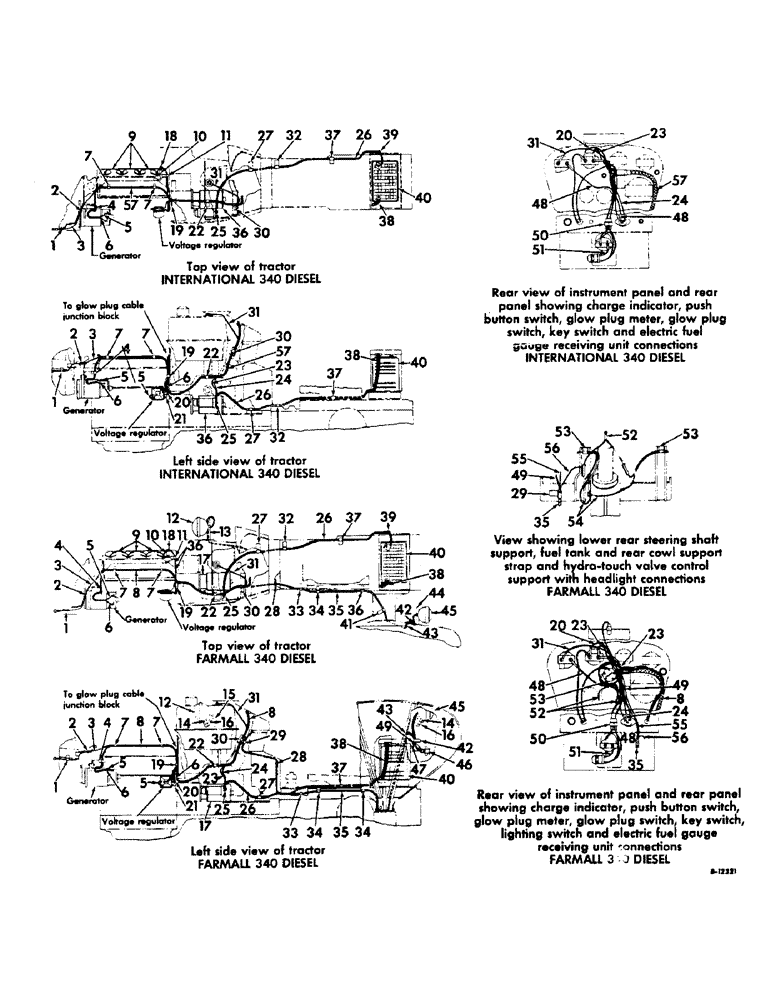

Схема запчастей Case IH 340 - (094) - ELECTRICAL SYSTEM, STARTING & LIGHTING, FARMALL 340 DIESEL, IGNITION & STARTING, INTL 340 DIESEL (06) - ELECTRICAL SYSTEMS
20
13
8
5
1
7
57
38
42
57
16
27
6
20
49
23
41
29
24
22
21
2
4
53
43
38
20
15
22
1
18
7
5
50
5
42
14
19
22
19
21
1
34
49
7
10
48
5
37
48
37
23
19
8
28
26
36
30
18
3
24
24
47
46
48
52
6
34
40
26
5
7
22
6
53
5
33
31
6
4
35
38
48
56
5
2
27
5
11
35
9
30
25
55
29
7
40
2
31
3
19
54
50
20
26
31
6
26
6
7
12
52
38
49
2
35
43
1
28
51
36
10
4
11
45
37
53
31
4
3
31
27
25
44
3
45
31
51
17
14
23
36
32
25
23
35
12
34
37
40
40
36
8
27
39
24
32
25
7
7
57
30
16
33
30
9
32
23
7
39
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

366460R1

CABLE CLIP

CLIP, horn cable (on headlight support lower front mounting bolt LH side)

1шт.

2

366460R1

CABLE CLIP

CLIP, horn cable (on radiator brace LH side)

1шт.

SCREW, 1/4 x 1/2" hex-hd. cap

1шт.

WASHER, 1/4" lock

1шт.

3

CABLE, horn (dark green) (order cable harness)

1шт.

4

370383R1

CLIP

cable (on generator bracket upper mounting bolt)

1шт.

5

CABLE, regulator "GEN" terminal to generator "A" terminal (light blue) (order cable harness)

1шт.

6

CABLE, regulator "F" terminal to generator "F" terminal (yellow) (order cable harness)

1шт.

7

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness (on valve cover bolts)

2шт.

8

375161R91

HARNESS ASSEMBLY, cable (unit A)

1шт.

9

319966R91

CABLE PULLING GRIP

HARNESS, glow plug

1шт.

10

304313R1

BRACKET

junction block mounting

1шт.

11

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, junction block cable (rear mounting bolt of manifold)

1шт.

12

374486R91

LAMP

HEADLIGHT ASSEMBLY, (12 volt) (guide) (optional with 374487R91) (for components see list of parts under details of "headlight") (2 for unit A)

1шт.

12

374487R91

LAMP

HEADLIGHT ASSEMBLY, (12 volt) (Dietz) (optional with 374486R91) (for components see list of parts under details of "headlight") (2 for unit A)

1шт.

NUT, 1/2"

2шт.

13

370560R1

PIPE, headlight support (2 for unit A)

1шт.

14

365503R1

SPACER

headlight or rear light (3 for unit A)

1шт.

15

370559R11

BRACKET ASSEMBLY, headlight support (2 for unit A)

1шт.

SCREW, 5/16 x 5/8" hex-hd. cap

8шт.

16

350920R1

CLAMP

head light or rear light (3 for unit A)

1шт.

17

375378R91

MOTOR ASSEMBLY, cranking (12 volt) (for components see list of parts under details of "cranking motor") (unit A)

1шт.

120622

NUT,#8-32

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

NUT, 3/8" cd-pltd.

1шт.

SCREW, 3/8 x 1" hex-hd. cap

3шт.

WASHER, no. 8 cd-pltd. lock

1шт.

WASHER, no. 10 cd-pltd. lock

1шт.

WASHER, 3/8" light lock

1шт.

WASHER, 3/8" lock

1шт.

18

42915D

BLOCK

junction

1шт.

NUT, no. 10 NF

1шт.

SCREW, no. 10 NF x 1/2" slt-rd-hd. mach.

1шт.

WASHER, no. 10 lock

1шт.

19

362126R1

CLIP

cable harness (on fuel tank and cowl front support)

1шт.

NUT, 3/8"

1шт.

SCREW, 3/8 x 3/4" hex-hd. cap

1шт.

WASHER, 3/8" lock

1шт.

20

CABLE, charge indicator to regulator "BAT" terminal (gray) (order cable harness)

1шт.

21

CABLE, fuse holder to regulator "L" terminal (light green) (order cable harness)

1шт.

22

362123R1

CLIP

cable harness (on fuel tank and cowl rear support bracket)

1шт.

SCREW, 3/8 NF x 3/4" hex-hd. cap

1шт.

WASHER, 3/8" lock

1шт.

23

CABLE, charge indicator to solenoid switch (red) (order cable harness)

1шт.

24

CABLE, push button switch to solenoid switch (orange) (order cable harness)

1шт.

25

364910R1

BOOT

COVER, solenoid terminal

1шт.

26

369610R91

CABLE ASSEMBLY, battery to solenoid switch (optional with 374904R91)

1шт.

26

374904R91

CABLE ASSEMBLY, battery to solenoid switch (optional with 369910R91)

1шт.

27

62511D

CLIP, cable harness (on hydra-touch valve support RH side front mounting bolt)

1шт.

28

355097R1

CLIP, rear light cable harness (on hydra-touch regulator valve cover upper LH bolt) (unit A)

1шт.

29

355097R1

CLIP, rear light cable harness (on fuel tank and rear support strap) (unit A)

1шт.

30

362123R1

CLIP

cable harness (on fuel tank and cowl support LH side)

1шт.

NUT, 3/8"

1шт.

screw, 3/8 x 3/4" hex-hd. cap

1шт.

WASHER, 3/8" lock

1шт.

31

CABLE, fuel gauge receiving unit to fuel gauge sending unit (dark blue) (order cable harness)

1шт.

32

62511D

CLIP, battery cable (on rear frame cover RH front mounting bolt)

1шт.

33

355098R1

CLIP, cable harness (on rear frame cover LH side, 2nd bolt from frame) (unit A)

1шт.

34

363842R1

CLIP, cable harness (on seat support mounting bolts) (2 for unit A)

1шт.

35

370315R91

CABLE ASSEMBLY, rear light to break-away connector socket (unit A)

1шт.

36

374583R91

MOTOR ASSEMBLY, cranking (12 volt) (for components see list of parts under details of "cranking motor") (unit B)

1шт.

NUT, no. 8 cd-pltd.

1шт.

NUT, no. 10 NF cd-pltd.

1шт.

NUT, 3/8" cd-pltd.

1шт.

SCREW, 3/8 x 1" hex-hd. cap

3шт.

WASHER, no. 8 cd-pltd.

1шт.

WASHER, no. 10 cd-pltd.

1шт.

WASHER, 3/8" light lock

1шт.

WASHER, 3/8" lock

3шт.

37

358986R1

CABLE CLIP

CLIP, battery cable (on seat support LH side, 2nd bolt from rear)

1шт.

38

369609R91

CABLE

STRAP W/BOLT ASSEMBLY, Serial Range: battery-ground

1шт.

356026R91

BOLT ASSEMBLY, terminal

1шт.

39

362123R1

CLIP

battery cable (on RH side of battery box)

1шт.

40

368537R91

BATTERY, (auto-lite 12H-70-3) (12 volt)

1шт.

41

253313R1

CLIP, cable harness (on top of LH rear axle housing from inner bolt) (unit A)

1шт.

SCREW, 1/2 x 1" hex-hd. cap

1шт.

42

362121R1

CLIP

rear light cable harness (on lower rear light mounting bracket hole) (unit A)

1шт.

NUT, 1/4"

1шт.

SCREW, 1/4 x 1/2" hex-hd. cap

1шт.

WASHER, 1/4" lock

1шт.

43

363846R1

GROMMET

rear light cable harness (unit A)

1шт.

44

66724DB

POST ASSEMBLY, combination rear light and tail light (unit A)

1шт.

NUT, 3/8"

3шт.

SCREW, 3/8 x 3/4" hex-hd. cap

3шт.

WASHER, 3/8" lock

3шт.

45

374214R91

LAMP

REAR LIGHT AND TAIL LIGHT ASSEMBLY, combination (optional with 374882R91) (for components see list of parts under details of "combination rear light and tail light") (unit A)

1шт.

45

374882R91

LAMP

REAR LIGHT AND TAIL LIGHT ASSEMBLY, combination (optional with 374214R91) (for components see list of parts under details of "combination rear light and tail light") (unit A)

1шт.

NUT, 1/2"

1шт.

46

362002R92

SOCKET

ASSEMBLY, electrical break-away connector (unit A)

1шт.

NUT, 1/4"

1шт.

SCREW, 1/4 x 1/2" hex-hd. cap

2шт.

WASHER, 1/4" lock

2шт.

47

376749R1

BODY

connector (unit A)

1шт.

48

367047R91

CABLE ASSEMBLY, fuel gauge receiving unit to push button switch

1шт.

49

CABLE, lighting switch, rear light terminal to line connector (red) (order harness, 370315R91) (unit A)

1шт.

50

375066R91

CABLE

ASSEMBLY, glow plug switch and meter

1шт.

51

375077R91

CABLE

glow plug meter to glow plug switch

1шт.

52

372545R91

CABLE ASSEMBLY, lighting switch to headlight junction (unit A)

1шт.

53

365584R1

CLIP

headlight cable (on hydra-touch control valve support) (2 for unit A)

1шт.

SCREW, 3/8 x 3/4" hex-hd. cap

2шт.

WASHER, 3/8" lock

1шт.

54

374490R91

CABLE

ASSEMBLY, headlight to ground (unit A)

1шт.

SCREW, 3/8 x 5/8" hex-hd. cap

1шт.

WASHER, 3/8" lock

1шт.

55

CABLE, lighting switch, tail light terminal to break-away connector socket (black) (order harness, 370315R91) (unit A)

1шт.

56

CABLE, break-away connector socket to ground (pink) (order harness, 370315R91) (unit A)

1шт.

57

375067R91

HARNESS ASSEMBLY, cable (unit B)

1шт.
