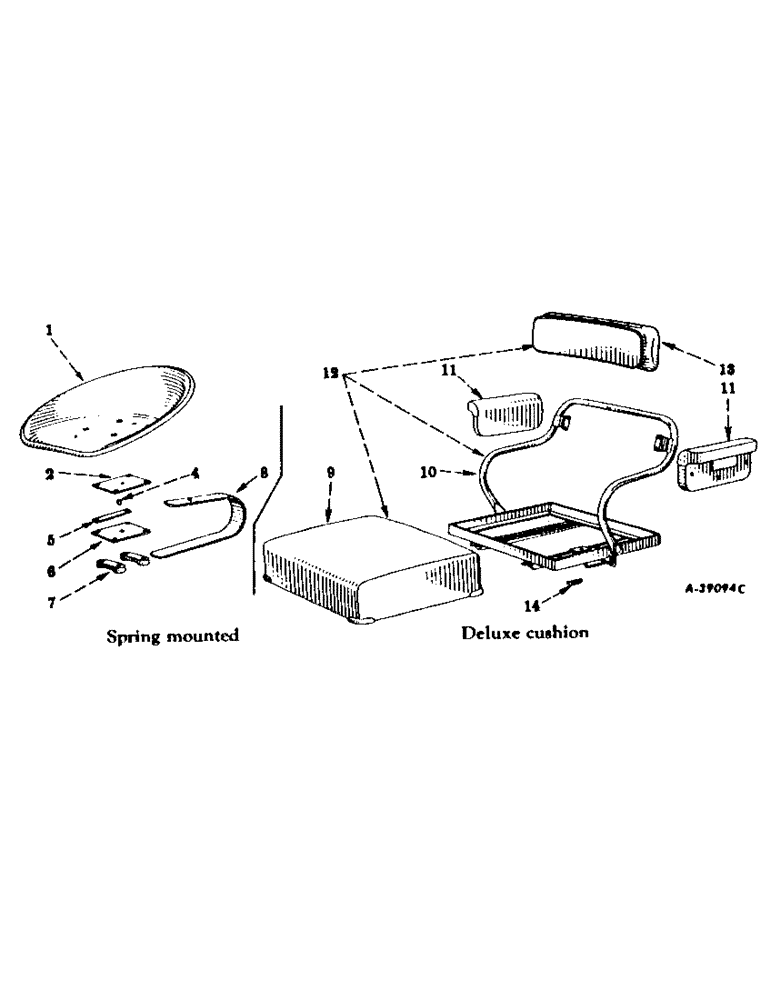

Запчасти Case IH 330 (275) - SEAT AND SUPPORTS, SEAT, INTERNATIONAL 330 Seat & Supports

1

351880R92

SEAT

ASSEMBLY, (plain)

1шт.

1

357518R91

DRIVER SEAT

SEAT ASSEMBLY, (deluxe upholstered)

1шт.

2

362553R1

BRACKET, seat adjustment upper

1шт.

4

141236

DOWEL

PIN, 3/8 x 1/2" dowel

1шт.

5

362554R1

SPACER, seat adjustment bracket

2шт.

6

362553R1

BRACKET, seat adjustment lower

1шт.

SCREW, 7/16NF x 1-1/4" hex-hd. cap

4шт.

WASHER, 7/16" lock

4шт.

7

362556R1

CLAMP, seat spring

2шт.

SCREW, 1/2 x 1-3/4" hex-hd. cap

4шт.

WASHER, 1/2" lock

4шт.

8

362555R1

SPRING, seat

1шт.

9

363220R91

CUSHION

deluxe seat

1шт.

10

363218R91

FRAME w/SPRING 273103R1 assembly, seat

1шт.

374235R1

SCREW, 5/16 x 1/2" twelve pt-hd. cap

4шт.

11

363740R91

CUSHION

PAD ASSEMBLY, arm rest

2шт.

12

361671R91

SEAT ASSEMBLY, deluxe cushion

1шт.

13

363219R91

CUSHION

REST, deluxe cushion seat back

1шт.

SCREW, 1/4 x 3/4" cd-pltd cr-rec-rd-hd mach

4шт.

WASHER, 1/4" cd-pltd. lock

4шт.

WASHER, 9/32 x 5/8" x 16 ga.

4шт.

14

273103R1

SPRING

ADJUSTER

1шт.

351438R93

PAD

detachable seat (rubber)

1шт.

359483R91

PAD

detachable seat (jute)

1шт.
