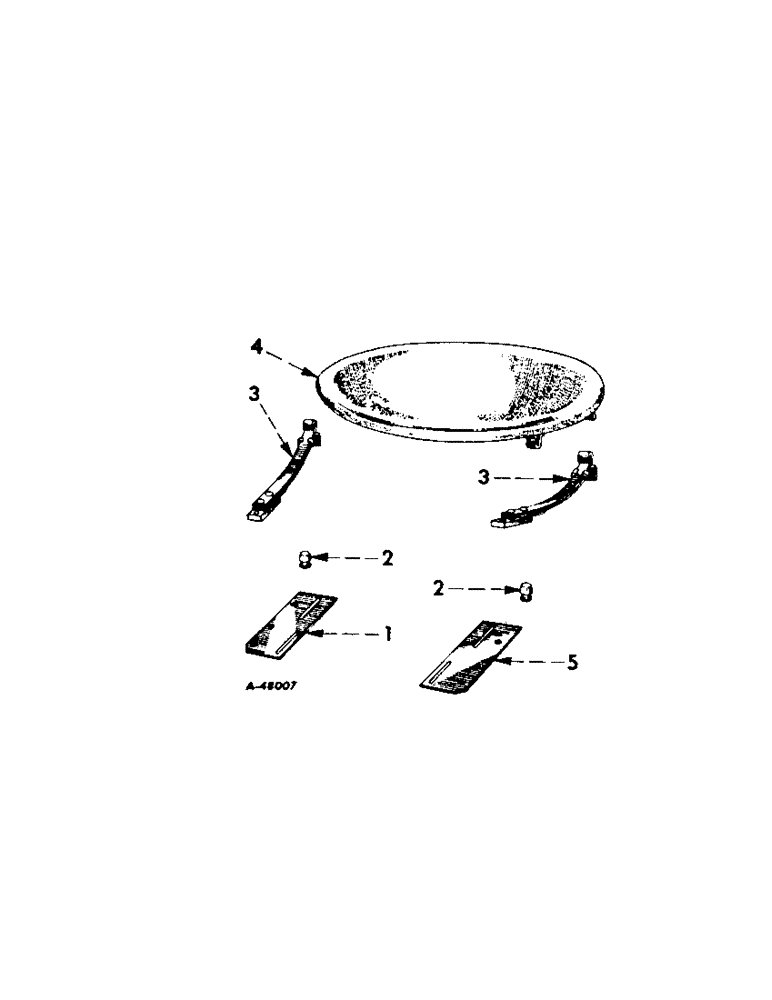

Запчасти Case IH 330 (275[A]) - SEATS AND SUPPORTS, LOW SEAT, INTERNATIONAL 330 Seat & Supports

1

365385R1

PLATE, seat mounting

1шт.

NUT, 7/16"

2шт.

365386R1

STUD, seat mounting plate short (8-13/16")

1шт.

365387R1

STUD, seat mounting plate short (9")

1шт.

WASHER, 7/16" lock

2шт.

WASHER, 15/32 x 59/64" x 16 ga.

4шт.

2

365388R1

SUPPORT, leaf spring rubber

2шт.

3

365383R91

SPRING w/MOUNTING BLOCK ASSEMBLY, seat

2шт.

RIVET, 1/4 x 3/4 x 90deg. csk-hd.

2шт.

RIVET, 5/16 x 1-3/8" rd-hd.

4шт.

SCREW, 3/8 x 7/8" hex-hd. cap

4шт.

WASHER, 3/8" lock

4шт.

4

354157R92

SEAT

ASSEMBLY, upholstered

1шт.

PIN, 1/8 x 1" cotter

2шт.

350515R1

WASHER

seat spring retainer

2шт.

5

365385R1

PLATE, seat mounting

1шт.

NUT, 7/16"

2шт.

365386R1

STUD, seat mounting plate short (8-13/16")

2шт.

WASHER, 7/16" lock

2шт.

WASHER, 15/32 x 59/64" x 16 ga.

4шт.
