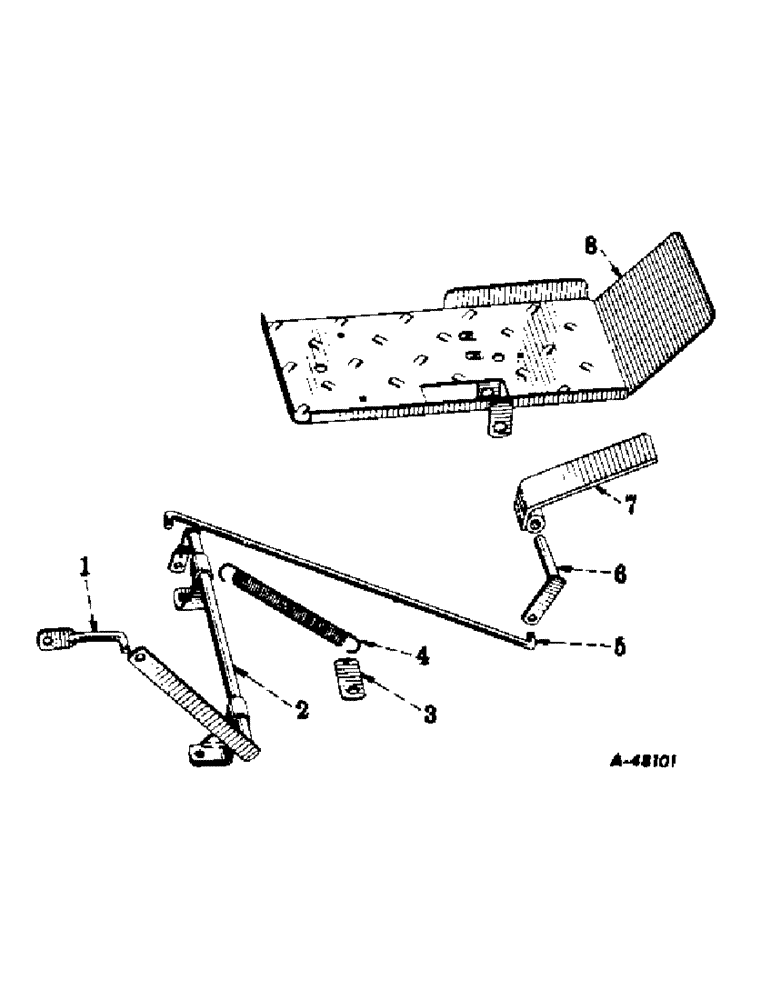

Запчасти Case IH 330 (057) - GOVERNOR, FOOT PEDAL ACCELERATOR, INTERNATIONAL 330 Governor

1

367946R1

ROD, foot pedal accelerator

1шт.

PIN, 3/32 x 5/8" cotter

1шт.

WASHER, 11/32 x 11/16 x .065"

1шт.

2

367939R11

SHAFT, foot accelerator idler

1шт.

PIN, 1/8 x 7/8" cotter

2шт.

SCREW, 3/8 x 7/8" hex-hd. cap

1шт.

SCREW, 3/8 x 1-3/4" hex-hd. cap

1шт.

WASHER, 3/8" lock

2шт.

WASHER, 13/32 x 11/16 x .065"

3шт.

3

367944R1

ANCHOR, foot accelerator return spring

1шт.

SCREW, 3/8 x 1" hex-hd. cap

1шт.

4

367945R1

SPRING, foot accelerator return

1шт.

5

367938R1

ROD, foot accelerator lower

1шт.

PIN, 3/32 x 5/8" cotter

2шт.

WASHER, 11/32 x 11/16 x .065"

2шт.

6

367936R11

SHAFT ASSEMBLY, foot accelerator

1шт.

PIN, 3/32 x 7/8" cotter

1шт.

11002VA

WASHER

17/32 x 7/8" x 16 ga.

1шт.

7

367934R11

PEDAL ASSEMBLY, foot accelerator

1шт.

618638R1

PIN,3/16" x 1 1/8", Coiled

1шт.

8

367931R31

PLATFORM ASSEMBLY, RH

1шт.

BOLT, 1/4 x 3/4" crg.

3шт.

NUT, 1/4"

3шт.

WASHER, 1/4" lock

3шт.

367947R11

ARM ASSEMBLY, governor control rear rod (illustrated with "governor controls")

1шт.

364437R1

PIN,3/16" x 7/8", Coiled

1шт.

367903R1

BRACKET, RH platform (see note A) (illustrated with "fenders and platform")

1шт.

368827R1

ROD, governor control cross shaft actuating (illustrated with "governor controls")

1шт.

NUT, 5/16 NF jam

1шт.

PIN, 3/32 x 5/8" cotter

1шт.

WASHER, 11/32 x 11/16 x .065"

1шт.
