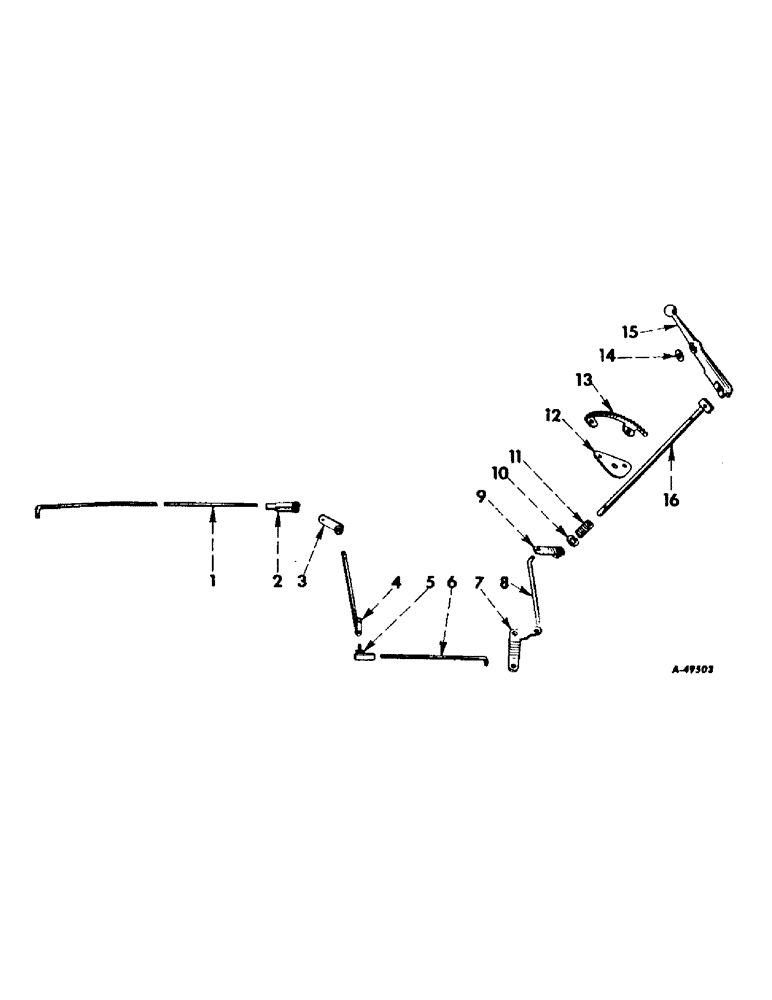

Запчасти Case IH 330 (054) - GOVERNOR, GOVERNOR CONTROLS, INTERNATIONAL 330 Governor

1

368695R1

ROD, governor control actuating

1шт.

NUT, 1/4 NF jam

1шт.

PIN, 3/32 x 1/2" cotter

1шт.

2

104036

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS, 1/4" adjustable rod end

1шт.

PIN, 1/16 x 1/2" cotter

1шт.

PIN, 3/32 x 1/2" cotter

1шт.

PIN, 1/4 x 51/64" rod end

1шт.

3

368702R11

ARM ASSEMBLY, governor control cross shaft

1шт.

PIN, 3/16 x 3/4" roll

1шт.

4

368700R11

LEVER AND SHAFT ASSEMBLY, governor control rod cross

1шт.

PIN, 3/32 x 3/4" cotter

2шт.

WASHER, 15/32 x 59/64" x 16 ga.

2шт.

5

109416

JOINT

5/16" type C ball (see note A)

1шт.

5

442720

BALL JOINT

JOINT, 5/16" type C cd. or zn-pltd. ball (see note A)

1шт.

5

365869R91

JOINT

5/16" type S ball (see note A)

1шт.

5

367265R91

JOINT, 5/16" type F ball (see note A)

1шт.

NUT, 5/16 NF

1шт.

6

368699R1

ROD, governor control cross shaft actuating (for tractors without foot accelerator)

1шт.

6

368827R1

ROD, governor control cross shaft actuating (for tractors with foot accelerator)

1шт.

NUT, 5/16 NF jam

1шт.

PIN, 3/32 x 1/2" cotter

1шт.

7

362423R11

BELLCRANK ASSEMBLY, governor control

1шт.

PIN, 1/8 x 3/4" cotter

1шт.

WASHER, 15/32 x 59/64" x 16 ga.

1шт.

8

362422R1

ROD, governor control center

1шт.

PIN, 3/32 x 5/8" cotter

2шт.

WASHER, 11/32 x 11/16" x 16 ga.

2шт.

9

364435R91

ARM ASSEMBLY, governor control rear rod (for tractors without foot accelerator)

1шт.

9

367947R11

ARM ASSEMBLY, governor control rear rod (for tractors with foot accelerator)

1шт.

364437R1

PIN,3/16" x 7/8", Coiled

1шт.

10

363665R1

WASHER, governor control rod spring

1шт.

11

354746R1

SPRING

governor control handle

1шт.

12

362419R91

BEARING ASSEMBLY, governor control rear rod

1шт.

SCREW, 1/4 NF x 1/2" slt-fil-hd. mach.

2шт.

WASHER, 1/4" lock

2шт.

13

362415R1

SECTOR, governor control

1шт.

NUT, no. 10 NF

2шт.

SCREW, no. 10 NF x 1/2" slt-rd-hd. mach.

2шт.

WASHER, no. 10 lock

2шт.

14

362066R2

KEY, engine speed control lever

1шт.

SCREW, 1/4 x 3/4" hex-hd. cap

1шт.

WASHER, 1/4" lock

1шт.

15

364433R1

LEVER, engine speed control

1шт.

364436R1

PIN,3/16" x 1", Coiled

1шт.

16

364434R1

ROD, governor control rear

1шт.

19310R1

PIN,3/32" x 5/8", Coiled

1шт.
