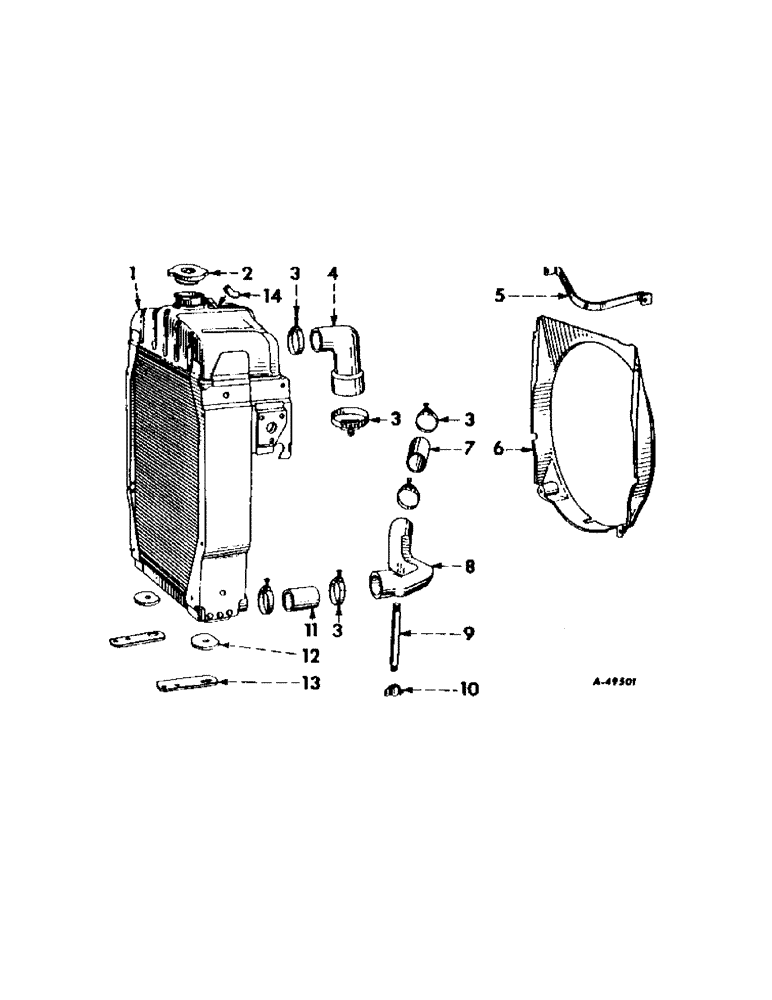

Запчасти Case IH 330 (051[A]) - COOLING SYSTEM, RADIATOR, INTERNATIONAL 330 COOLING SYSTEM

1

371235R92

RADIATOR ASSEMBLY

1шт.

BOLT, 7/16 x 1-3/8" crg.

2шт.

NUT, 7/16" elastic stop

2шт.

WASHER, 1/2 x 7/8" x 14 ga.

4шт.

2

361705R91

COVER

CAP, radiator filler

1шт.

3

357870R91

CLAMP

radiator hose (range 3/4 to 4" OD hose)

6шт.

4

368600R1

RADIATOR HOSE,1.74" ID, 2.50" ID x 5.70" , SAE 20R4

Radiator Inlet 1.74" ID, 2.50" ID x 5.70" , SAE 20R4

1шт.

5

368599R1

BRACE, radiator

1шт.

NUT, 3/8 NF lock

2шт.

SCREW, 5/16 x 3/4" hex-hd. cap

2шт.

51538D

STUD, radiator brace

1шт.

WASHER, 5/16" lock

2шт.

6

365902R1

HOUSING, fan

1шт.

BOLT, 1/4 x 4-3/4" sq-hd. mach.

2шт.

NUT, 1/4"

2шт.

SCREW, 1/4 NF x 1/2" hex-hd. cap

2шт.

WASHER, 1/4" lock

4шт.

7

48827DA

FLEXIBLE HOSE,1.50" ID x 2.50"

RADIATOR HOSE, , Outlet, Upper 1.50" ID x 2.50"

1шт.

8

368602R1

ELBOW, radiator outlet

1шт.

9

219326

LUBE NIPPLE,Nipple, 3/8" NPT x 5"

NIPPLE, 3/8 x 5" std. pipe (radiator drain)

1шт.

10

13047DA

PLUG

CAP, radiator drain pipe

1шт.

11

370400R2

HOSE, radiator outlet lower (1-3/8" ID x 2-1/2" long x 1 ply)

1шт.

12

18464DA

GASKET

PAD, radiator

2шт.

13

362382R1

BRACKET, radiator mounting

2шт.

SCREW, 3/8 x 7/8" hex-hd. cap

4шт.

WASHER, 3/8" lock

4шт.

14

274141R1

HOSE, radiator over flow pipe connecting (Used on radiators with two-piece over flow pipes)

1шт.
