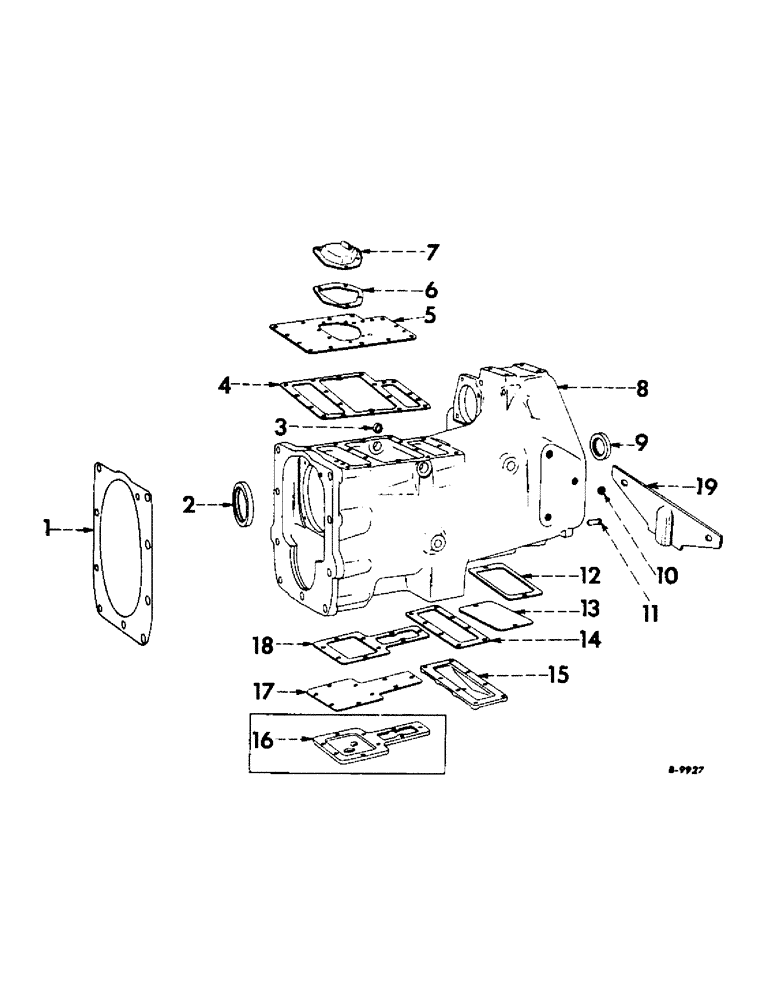

Запчасти Case IH 330 (113) - CLUTCH, CLUTCH HOUSING AND COVERS, INTERNATIONAL 330 (03.1) - CLUTCH

1

360641R1

GASKET

clutch housing (see note A)

1шт.

2

361248R92

OIL SEAL

OIL SEAL, transmission drive shaft front bearing retainer or planet carrier front bearing (see note A)

1шт.

3

359011R1

PLUG

cup (for sealing torque amplifier clutch release shaft openings on tractors not equipped with torque amplifier)

2шт.

4

360642R2

GASKET

clutch housing top cover (see note A)

1шт.

5

363361R2

COVER, clutch housing top

1шт.

SCREW, 3/8-16 x 6-5/8" hex-hd. cap

10шт.

SCREW, 3/8 x 1" hex-hd. cap

1шт.

6

364721R1

GASKET

clutch housing top cover cap

1шт.

7

364891R91

CAP

ASSEMBLY, clutch housing top cover

1шт.

SCREW, 3/8 x 3/8" hex-hd. cap

4шт.

8

368478R91

HOUSING ASSEMBLY, clutch (composed of, (1) bearing 360665R91), (1) cork 104937, (1) housing 368479R1 (NSS), (1) oil seal 361248R92, (1) oil seal 362119R93, (1) plug 103868, (1) plug 187056, (8) plug 364683R1, (2) plug 359011R1)

1шт.

104937

PLUG

CORK, no. 1-7/16 x 5/8" long taper

1шт.

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe, C.I. (Oil level plug) Sq Hd, 1/2"-14 NPTF

1шт.

187056

PLUG, 2" CI sq-hd. pipe (power take-off driven shaft opening plug) (see note A)

1шт.

SCREW, 1/2 x 7" hex-hd. cap

2шт.

SCREW, 5/8 x 2" hex-hd. cap

5шт.

SCREW, 5/8 x 2-1/4" hex-hd. cap

4шт.

WASHER, 1/2" external tooth lock

2шт.

WASHER, 5/8" lock

4шт.

WASHER, 5/8" external tooth lock

5шт.

9

362119R93

SEAL

OIL SEAL, power take-off drive gear (see note A)

1шт.

10

364683R1

PLUG, clutch housing dust seal

8шт.

11

45979D

STUD

PIN, engine rear support dowel

2шт.

12

360871R1

GASKET

clutch compartment bottom cover

1шт.

13

360872R1

COVER

clutch compartment bottom

1шт.

SCREW, 3/8 x 3/4" hex-hd. cap

2шт.

WASHER, 3/8" lock

2шт.

14

359129R2

GASKET

power take-off driven gear cover (see note A)

1шт.

15

359010R1

COVER, power take-off drive compartment (not used on tractors equipped with independent power take-off drive or torque amplifier)

1шт.

SCREW, 3/8 x 5/8" hex-hd. cap

8шт.

15

372827R11

COVER

W/PLUG ASSEMBLY, power take-off driven gear (see note A)

1шт.

PLUG, 3/8" stl. sq. socket pipe

1шт.

SCREW, 3/8 x 7/8" hex-hd. cap

8шт.

16

360870R1

COVER, seasonal disconnect (for tractors equipped with independent power take-off drive or torque amplifier with independent power take-off drive)

1шт.

SCREW, 3/8 x 1" hex-hd. cap

9шт.

17

360869R1

COVER, clutch housing rear bottom

1шт.

366494R91

SCREW, 3/8 x 3/4" hex-hd. mach., w/internal tooth lock washer assembly

9шт.

18

360667R3

GASKET

clutch housing rear bottom cover (see note A)

1шт.

19

368959R1

COVER, clutch housing dust

1шт.

SCREW, 5/8 x 5/8" hex-hd. cap

2шт.
