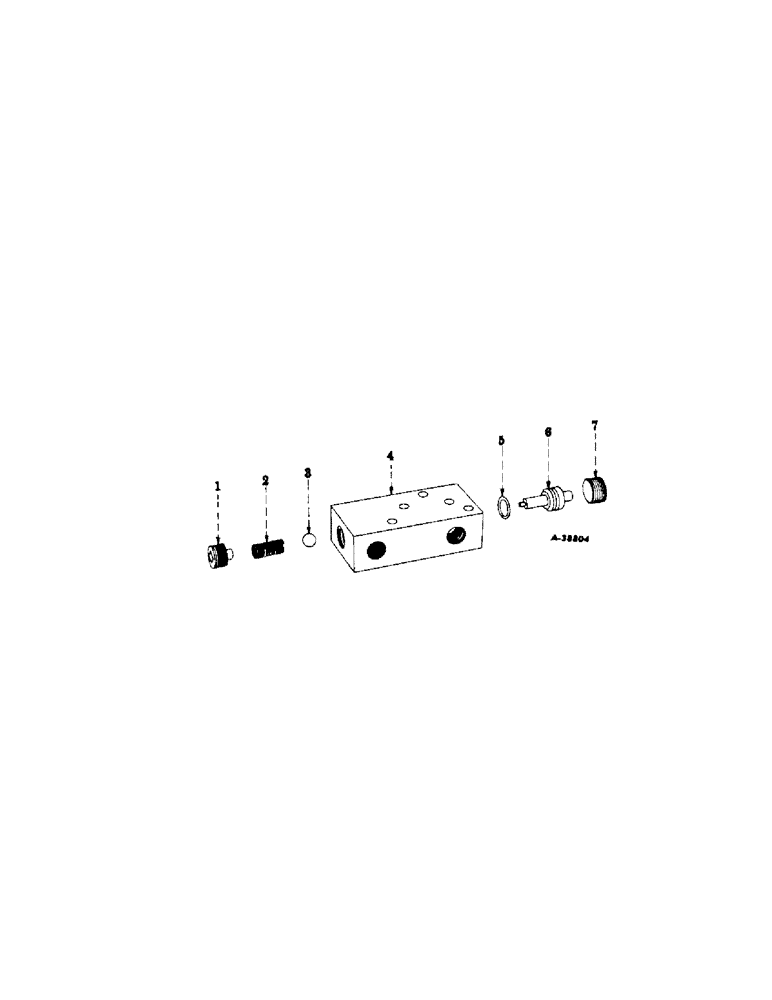

Запчасти Case IH 330 (232[A]) - HYDRAULIC SYSTEM, CHECK VALVE, FOR TRACTORS EQUIPPED WITH FAST-HITCH, INTERNATIONAL 330 (07) - HYDRAULIC SYSTEM

1

362728R1

PLUG, check valve

1шт.

2

372649R1

SPRING

check valve

1шт.

3

17016R1

BALL,1/2" Dia

1шт.

4

BLOCK, check valve (order valve assembly)

1шт.

5

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

check valve actuator piston (11/16 x 7/8 x 3/32")

1шт.

6

362707R1

PISTON

check valve actuator

1шт.

7

365858R1

PLUG, check valve pipe (optional with 364016R2)

1шт.

7

364016R2

PLUG

check valve pipe (optional with 365858R1)

1шт.
