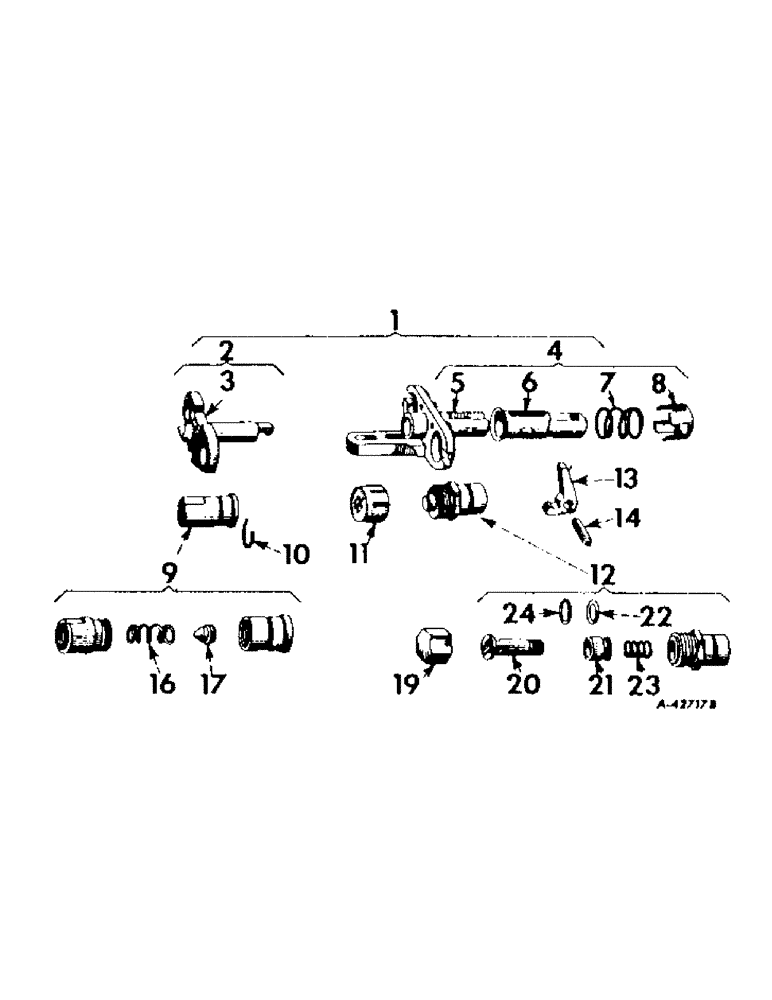

Запчасти Case IH 330 (225) - HYDRAULIC SYSTEM, HYDRAULIC EQUIPMENT, LIST OF PARTS, INTERNATIONAL 330 (07) - HYDRAULIC SYSTEM

368086R91

CONNECTOR, ELEC

ADAPTOR, 9/16-18 male x 3/8" female pipe thread union (for connecting test gauge to regulator, safety and flow control valve)

1шт.

360997R91

CYLINDER ASSEMBLY, hydraulic (3-1/2 x 8") (for components see list of parts under details of "Hydraulic Cylinders")

1шт.

368710R1

CAP

hydraulic break-away dust

1шт.

353216R91

COUPLING

ASSEMBLY, hydraulic break-away (rear section)

1шт.

362784R91

HOSE

hydraulic cylinder (1/2 ID x 112" long)

1шт.

1

364310R92

COUPLING

ASSEMBLY, break-away, hydraulic equipment self sealing international 330

1шт.

2

353216R91

COUPLING

ASSEMBLY, break-away (rear section) composed of (2) coupling 353218R91, (1) frame 353220R1, (2) ring 353228R1, hydraulic equipment self sealing international 330

1шт.

3

353220R1

FRAME, break-away rear, hydraulic equipment self sealing couplings international 330

1шт.

4

364311R92

COUPLING ASSEMBLY, break-away (front section) (consists of two couplings, 353217R92 and frame, 364312R92), hydraulic equipment self sealing international 330

1шт.

4

364312R92

FRAME ASSEMBLY, break-away, composed of (1) cover 353223R1, (1) drawbar 353222R1, (1) frame 364313R91, (1) latch 353225R1, (1) pin 353226R1, (1) spring 353224R1, hydraulic equipment self sealing couplings international 330

1шт.

5

364313R91

FRAME ASSEMBLY, front break-away, hydraulic equipment self sealing couplings international 330

1шт.

6

353222R1

DRAWBAR, break-away frame, hydraulic equipment self sealing couplings international 330

1шт.

7

353224R2

SPRING, break-away frame latch, hydraulic equipment self sealing couplings international 330

1шт.

8

353223R1

COVER, break-away frame latch spring, hydraulic equipment self sealing couplings international 330

1шт.

9

353218R91

COUPLING

ASSEMBLY, break-away rear half or hydraulic self-sealing female, hydraulic equipment self sealing international 330

1шт.

10

353228R1

SNAP RING, break-away coupling rear, hydraulic equipment self sealing international 330

2шт.

11

368710R1

CAP

coupling dust, hydraulic equipment break-away & self sealing international 330

1шт.

12

353217R92

COUPLING

ASSEMBLY, break-away front half or hydraulic self- sealing male

1шт.

13

353225R1

LATCH, break-away frame, hydraulic equipment self sealing couplings international 330

1шт.

14

353226R1

PIN, break-away frame latch, hydraulic equipment self sealing couplings international 330

1шт.

16

357128R1

SPRING

break-away or self-sealing coupling poppet valve, hydraulic equipment international 330

1шт.

17

357127R91

VALVE

ASSEMBLY, break-away or self-sealing coupling poppet, hydraulic equipment international 330

1шт.

19

357136R2

EXTRACTOR, break-away or self-sealing coupling tubular valve, hydraulic equipment international 330

1шт.

20

357132R1

VALVE

break-away or self-sealing coupling tubular, hydraulic equipment international 330

1шт.

21

364250R91

BUSHING

SLEEVE ASSEMBLY, break-away or self-sealing coupling insert, hydraulic equipment international 330

1шт.

22

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

break-away or self-sealing coupling tubular valve (9/16 x 3/4 x 3/32"), hydraulic equipment international 330

1шт.

23

357135R1

SPRING

break-away or self-sealing coupling tubular valve, hydraulic equipment international 330

1шт.

24

368396R1

SEALING RING

WASHER, o-ring back-up, hydraulic equipment break-away & self sealing couplings international 330

1шт.
