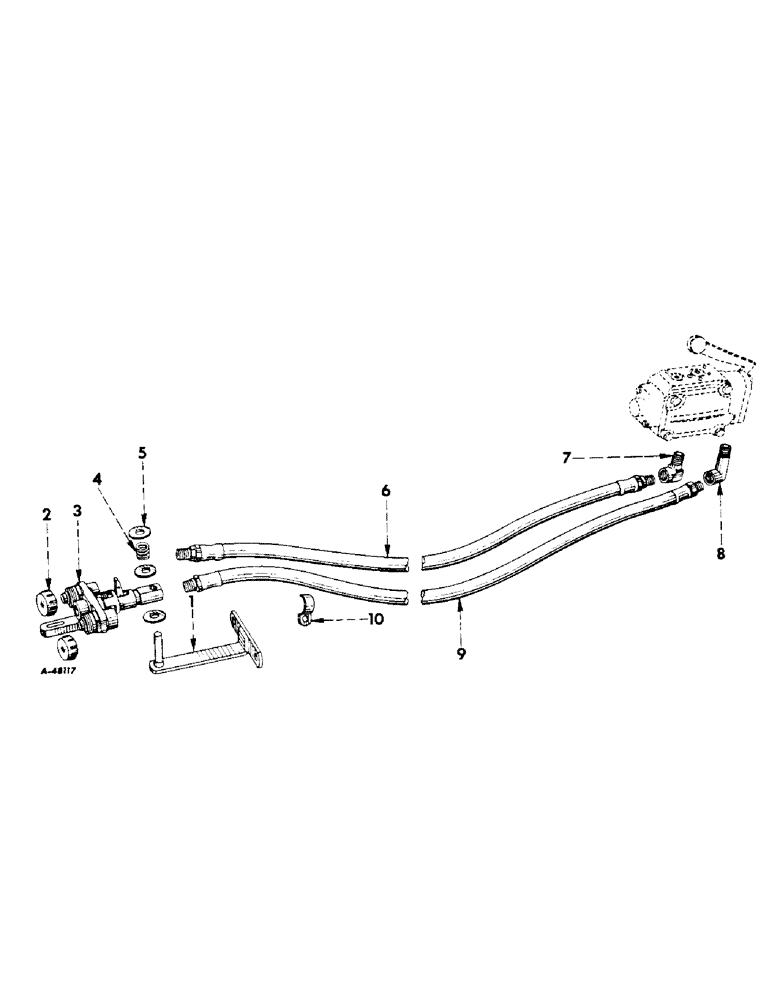

Запчасти Case IH 330 (224) - HYDRAULIC SYSTEM, REMOTE CONTROL ADAPTER, INTERNATIONAL 330 (07) - HYDRAULIC SYSTEM

1

365405R11

BRACKET ASSEMBLY, break-away coupling

1шт.

SCREW, 5/8 x 1-3/8" hex-hd. cap

2шт.

WASHER, 5/8" lock

2шт.

2

364655R1

CAP, hydraulic self-sealing and break-away coupling dust (not included in packages)

2шт.

3

364311R92

COUPLING ASSEMBLY, hydraulic break-away front section (for components see list of parts under details of "Break-Away and Self-Sealing Couplings")

1шт.

PIN, 1/8 x 1" cotter

1шт.

4

353213R2

SPRING

break-away coupling bracket

1шт.

5

PO10535

WASHER

17/32 x 1-1/4" x 11 ga.

3шт.

6

365399R92

HOSE, valve front port to LH side of break-away coupling (1/2 ID x 31" long) (unit A)

1шт.

6

368194R91

HOSE

valve front port to LH side of break-away coupling (1/2 ID x 42-1/2" long) (unit B)

1шт.

7

364148R1

ELBOW

1/2 x 90deg. street (used in the front port unit A, rear port unit B)

1шт.

8

363628R1

ELBOW, 1/2 x 90deg. street (used in the rear port unit A, front port unit B)

1шт.

9

355584R91

HOSE, valve rear port to RH side of the break-away coupling (1/2 ID to 28" long) (unit A)

1шт.

9

355543R91

HOSE

valve rear port to RH side of the break-away coupling (1/2 ID x 37-1/2" long) (unit B)

1шт.

10

368190R1

BRACKET, hose support (unit B)

1шт.

444496

ELBOW, 1/2" x 45deg. brs. automotive pipe street elbow

1шт.
