(080[A]) - ELECTRICAL SYSTEM, HEADLIGHTS INTERNATIONAL 330

Запчасти Case IH 330 (080[A]) - ELECTRICAL SYSTEM, HEADLIGHTS INTERNATIONAL 330 (06) - ELECTRICAL SYSTEMS

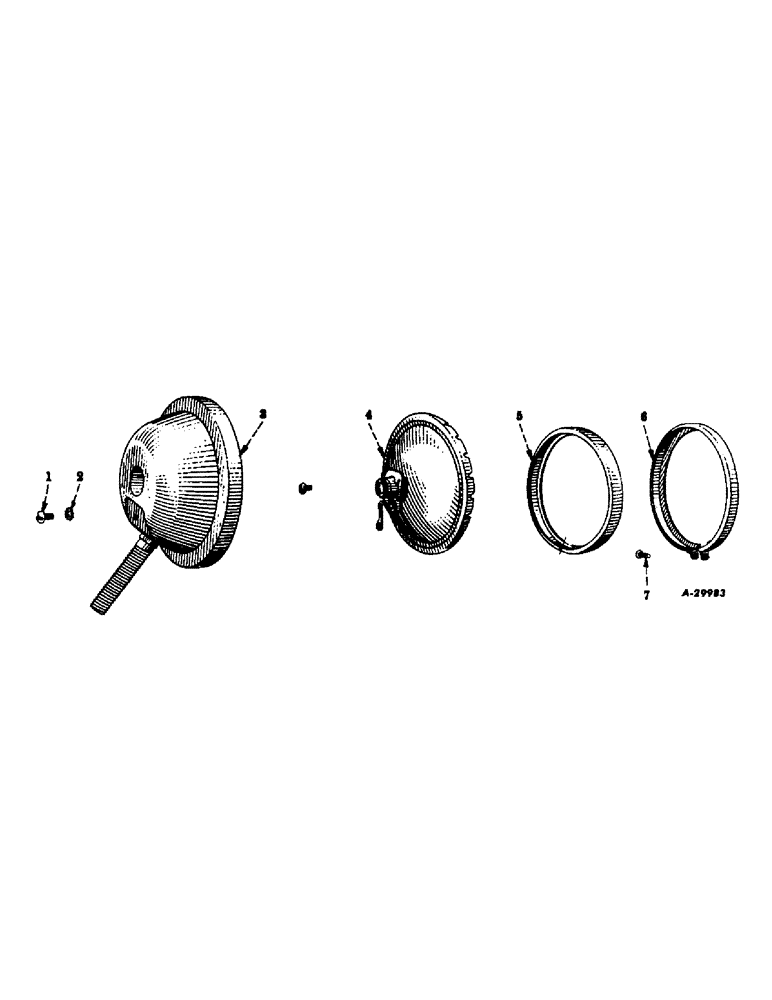

Схема запчастей Case IH 330 - (080[A]) - ELECTRICAL SYSTEM, HEADLIGHTS INTERNATIONAL 330 (06) - ELECTRICAL SYSTEMS
7
6
3
4
1
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

455347

SCREW, no. 8 x 1/4" brs. slt-pan-hd. mach.

2шт.

2

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, Int Tooth, #8

2шт.

3

BODY, (not serviced separately, order headlight assembly)

1шт.

4

358890R92

LAMP ASSEMBLY, sealed beam (6 volt)

1шт.

5

358892R91

CABLE PULLING GRIP

GASKET

1шт.

6

358891R92

MOLDING

MOULDING

1шт.

7

53526D

SCREW

moulding

1шт.
