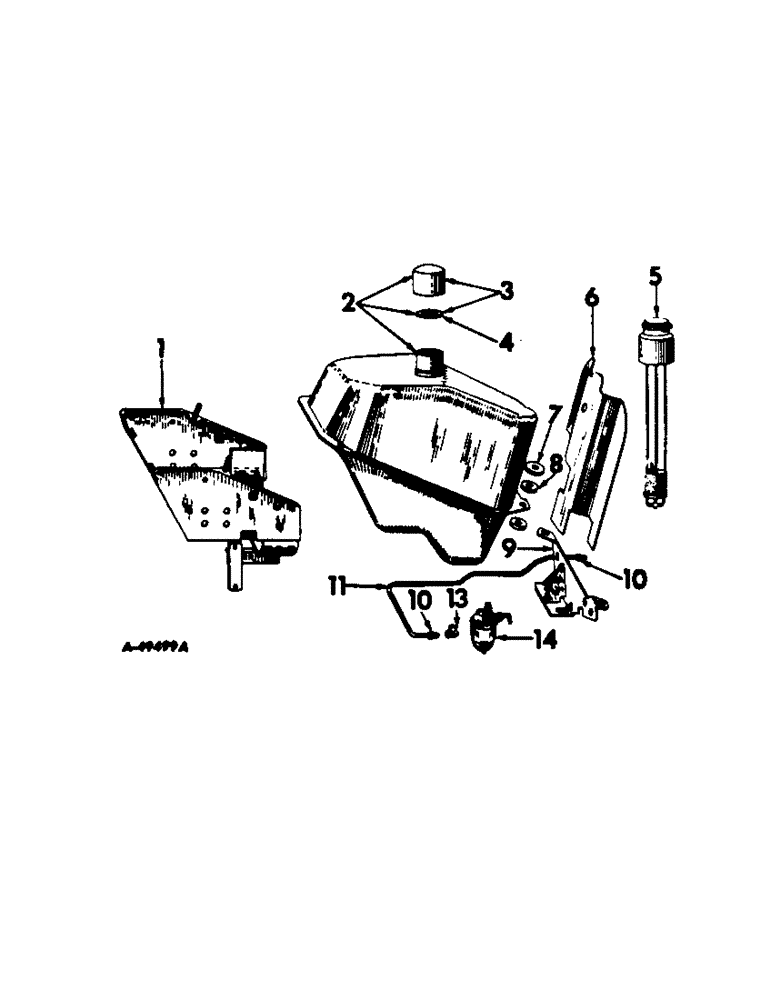

Запчасти Case IH 330 (037[A]) - FUEL SYSTEM, FUEL TANK, SUPPORTS AND PIPING, INTERNATIONAL 330 (02) - FUEL SYSTEM

1

362050R93

SUPPORT W/SIX NUTS ASSEMBLY, fuel tank and cowl rear

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16" floating cage, (instrument panel housing fastener)

6шт.

SCREW, 7/16 x 1" hex-hd. cap

4шт.

2

368588R91

TANK ASSEMBLY, fuel

1шт.

17055R1

NUT, 3/8 NF ESNA elastic stop zn-pltd. (optional with 54738R1)

4шт.

54738R1

LOCK NUT,3/8"-24, GC

NUT, 3/8 NF ESNA elastic stop cd-pltd. (optional with 17055R1)

4шт.

SCREW, 3/8 NF x 1-3/8" hex-hd. cap

1шт.

SCREW, 3/8 NF x 1-1/2" hex-hd. cap

1шт.

3

361910R91

PLUG

CAP ASSEMBLY, fuel tank filler

1шт.

4

23977DB

GASKET

fuel tank filler cap

1шт.

5

365495R92

CAP W/GASKET ASSEMBLY, fuel filler gauge

1шт.

6

368081R1

SHIELD, heat

1шт.

7

362321R1

RETAINER, fuel tank insulating pad

4шт.

8

60671D

INSULATOR BLOCK

PAD, fuel tank insulating

8шт.

9

368581R11

SUPPORT ASSEMBLY, fuel tank front

1шт.

SCREW, 7/16 x 7/8" hex-hd. cap

2шт.

WASHER, 7/16" lock

2шт.

10

369989R1

NUT

fuel pipe

2шт.

11

368968R11

PIPE ASSEMBLY, strainer to carburetor fuel

1шт.

13

24847H

ELBOW,90 Degree x 1/8" NPT x 1/2"-20

hi-duty male pipe

1шт.

14

369595R91

STRAINER ASSEMBLY, fuel (for components see list of parts under details of "fuel strainer")

1шт.
