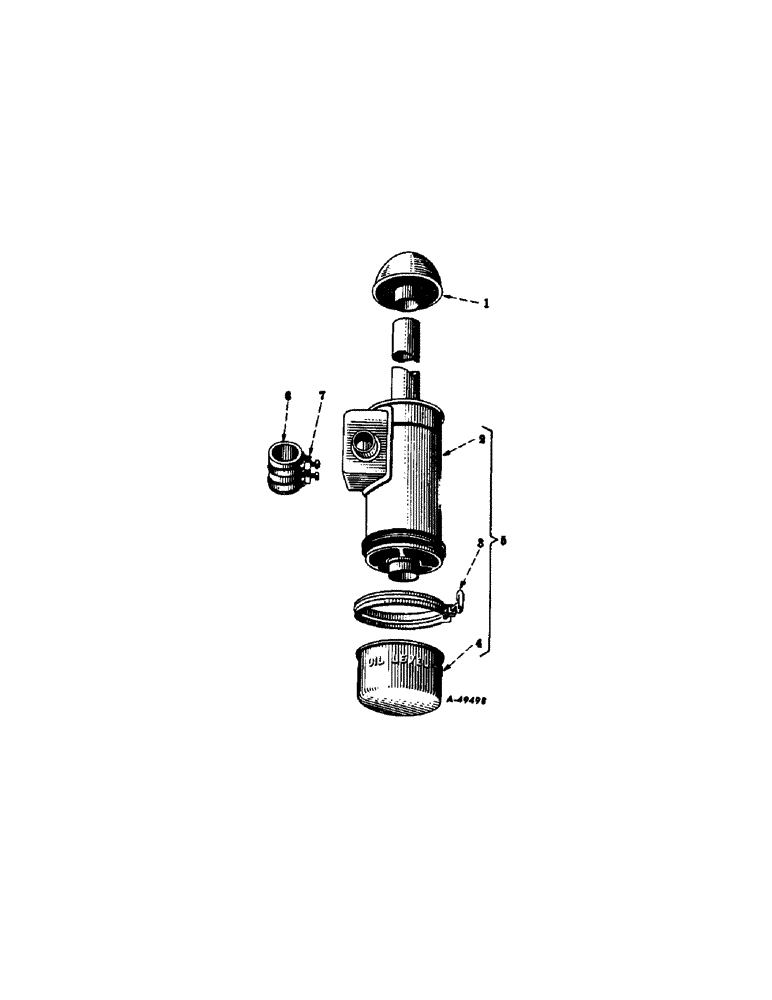

Запчасти Case IH 330 (036) - FUEL SYSTEM, AIR CLEANER, DONALDSON, INTERNATIONAL 330 (02) - FUEL SYSTEM

1

361723R91

CAP

ASSEMBLY, air intake pipe

1шт.

2

BODY, (not serviced separately, order 366321R91)

1шт.

3

66357DA

CLAMP

oil cup retaining

1шт.

4

352597R91

BOWL

CUP, oil

1шт.

5

366321R91

CLEANER

ASSEMBLY, air (optional with 367766R91) (composed of, (1) body (NSS), (1) clamp 66357DA, (1) cup 352597R91)

1шт.

SCREW, 3/8 x 3/4" hex-hd. cap

2шт.

WASHER, 3/8" lock

2шт.

WASHER, 13/32 x 13/16" x 16 ga.

2шт.

6

366322R1

INTAKE AIR HOSE,1.62" ID x 1.56", SAE 20R1 Class R

Air Cleaner 1.62" ID x 1.56", SAE 20R1 Class R

1шт.

7

366323R1

CLAMP, air cleaner hose, not serviced separately (NSS)

2шт.
