Запчасти Case IH 300-SERIES (114) - REAR WHEEL, HUB AND RIM, 301-311 GENERAL PURPOSE (06) - POWER TRAIN

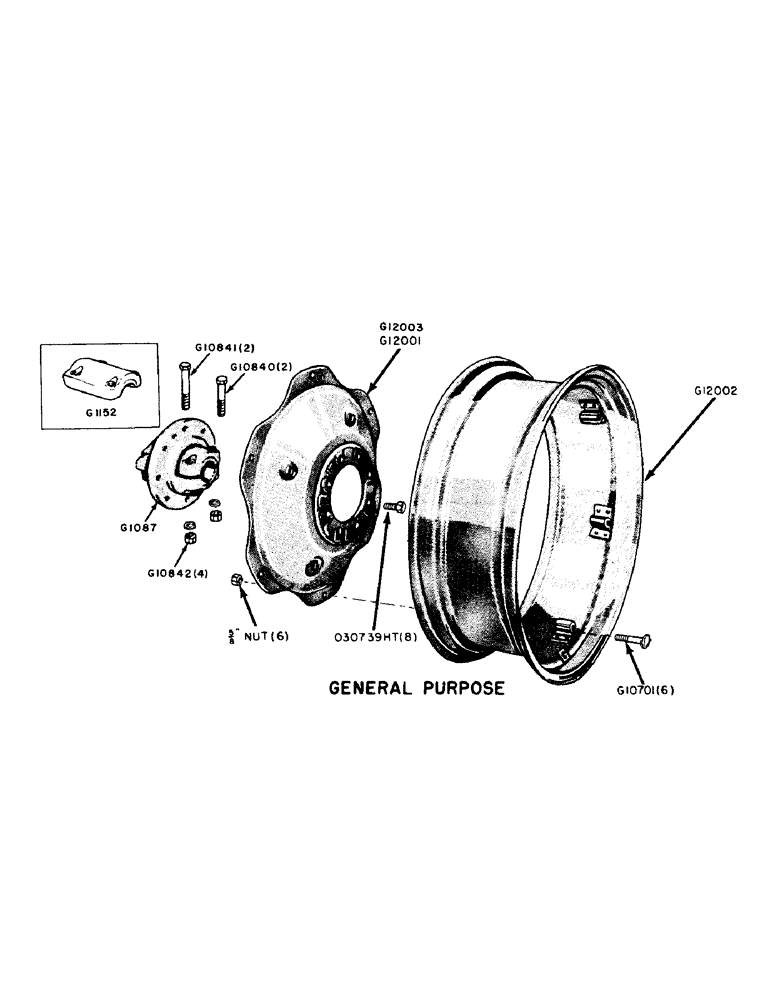

Схема запчастей Case IH 300-SERIES - (114) - REAR WHEEL, HUB AND RIM, 301-311 GENERAL PURPOSE (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

G1087

X

HUB - rear wheel

2шт.

G1151

HANDBOOK

HUB (Use G1087)

1шт.

G1152

CLAMP - wheel hub (For G1151 hub)

2шт.

G10701

BOLT

- rim, rear wheel (5/8" x 2-11/16" key hd., NF)

12шт.

5/8" HEX. NUT, NF

12шт.

G10840

BOLT

- wheel hub clamp (3/4" x 3-3/4")

4шт.

G10841

BOLT

BOLT - wheel hub (3/4" x 4-1/2")

4шт.

G10842

NUT

- wheel hub bolt (3/4" NF)

8шт.

3/4" LOCKWASHER

8шт.

G12001

DISC

WHEEL - rear (28" rim)

2шт.

G12002

RIM

- rear wheel (11" x 28" tires)

2шт.

G12003

RIM

- rear wheel (12" x 28" tires)

2шт.

O30739HT

X

BOLT -, Serial Range: wheel-hub

16шт.

Выбрано товаров: 13
