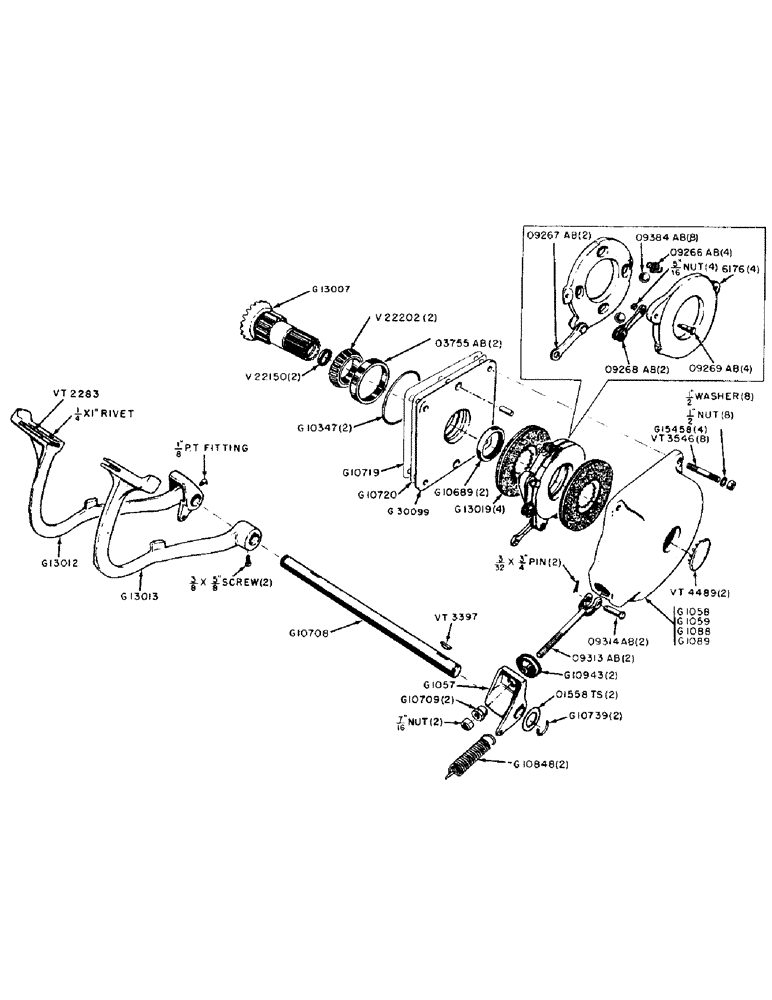

Запчасти Case IH 300-SERIES (112) - DIFFERENTIAL BRAKE ASSEMBLY (06) - POWER TRAIN

G1057

LEVER

- brake cross shaft, LH

1шт.

G1058

COVER - brake, RH (301, 311 gen. purpose)

1шт.

G1059

COVER - brake, LH (301, 311 gen. purpose)

1шт.

G1070

CARRIER - differential bearing (Use G30099)

1шт.

G1072

PEDAL - brake, RH (Use G13012)

1шт.

G1073

X

PEDAL - brake, LH (Use G13013)

1шт.

G1088

COVER - brake, RH (300, 310 Utility)

1шт.

G1089

COVER - brake, LH (300, 310 Utility)

1шт.

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

"O" RING - inner seal, axle housing (5-1/4" dia.)

2шт.

G10689

SEAL

OIL SEAL - bearing carrier

2шт.

G10708

SHAFT

- cross, clutch and brake pedals

1шт.

G10709

NUT

- brake rod adjusting (7/16" NF special)

2шт.

G10719

SHIM,.005" Thk

Bearing carrier .005" Thk

1шт.

G10720

SHIM,.010" Thk

Bearing carrier .010" Thk

1шт.

G10739

X

SNAP RING - brake pedal cross shaft

2шт.

G10848

SPRING

- brake pedal return

2шт.

G10943

DUST CAP

CAP - dust, brake rod

2шт.

G13007

GEAR - differential side, includes plug

2шт.

G13012

PEDAL

- brake, RH (Includes VT2283 interlock and rivet)

1шт.

1/8", 67-1/2 degree fitting (Lincoln #5300)

1шт.

G13013

PEDAL

- brake, LH (Includes 3/8" x 5/8" NC sq. hd. cup pt. set screw)

1шт.

G13019

DISC

- middle, with bonded brake lining

4шт.

G15458

STUD

- brake cover to transmission (1/2" x 4-1/2") (300, 310 Utility)

4шт.

1/2" HEX. NUT, NF AND LOCKWASHER

4шт.

G30099

CARRIER - differential bearing

1шт.

3/8" X 3/4" FLAT HD. SCREW, NC (Philips recessed spin lock)

4шт.

6176A

X

DISC - brake actuating

4шт.

O3755AB

X

CUP - bearing, carrier (Timken #394A)

2шт.

O9266AB

X

SPRING - actuating, brake discs

4шт.

O9267AB

X

LINK - plain actuating, brake discs

2шт.

O9268AB

X

LINK - straddle, brake actuating

2шт.

90269AB

BOLT - actuating link stud

4шт.

5/16" HEX. JAM NUT, NF

4шт.

O9313AB

ROD

- brake yoke link

2шт.

O9314AB

X

PIN - yoke, brake rod

2шт.

3/32" X 3/4" COTTER PIN

2шт.

O9384AB

X

BALL - actuating disc (7/8" dia.)

8шт.

O1558TS

X

WASHER - brake shaft ends (1-7/8" OD x 1-3/32" ID #16 ga.)

2шт.

V22150

CAP

PLUG - differential side gear

2шт.

V22202

BELLCRANK

CONE - bearing, carrier (Timken #390)

2шт.

VT2283

INTERLOCK - brake pedal

1шт.

1/4" X 1-1/4" CTSK. HF rivet

1шт.

VT3397

KEY - G13013 brake pedal and G1057 brake, Serial Range: lever-shaft

2шт.

VT3546

X

STUD - brake cover to transmission (1/2" x 2-1/2") (8 for 301, 311 gen. purpose and 4 for 300, 310 utility) See G15458

8шт.

1/2" HEX. NUT, NF and lockwasher

8шт.

VT4489

X

PLUG - bottom, brake cover

2шт.
