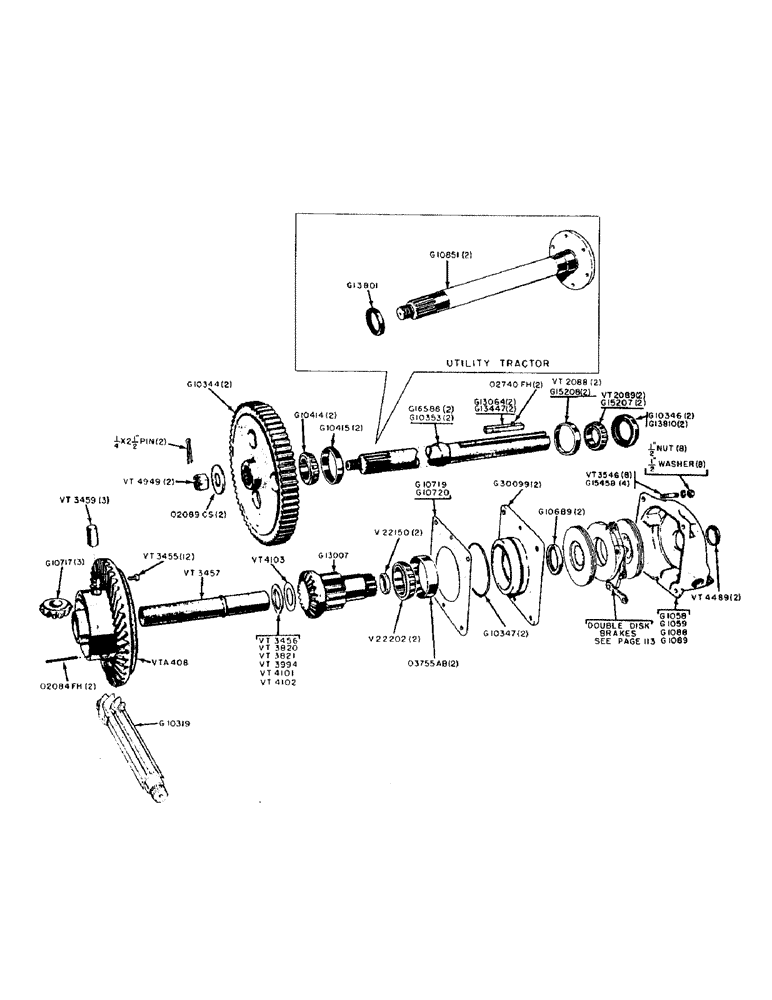

Запчасти Case IH 300-SERIES (110) - DIFFERENTIAL, REAR AXLE AND FINAL DRIVE (06) - POWER TRAIN

G1058

COVER - RH brake (General purpose)

1шт.

G1059

COVER - LH brake (General purpose)

1шт.

G1070

CARRIER (Use G30099)

1шт.

G1088

COVER - RH brake (Utility)

1шт.

G1089

COVER - LH brake (Utility)

1шт.

G10319

COUNTERSHAFT AND SPIRAL BEVEL DRIVE PINION

1шт.

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

"O" RING - bearing carrier (5-1/4" dia.)

2шт.

G10689

SEAL

OIL SEAL - bearing carrier

2шт.

G10717

GEAR - pinion, differential

3шт.

G10719

SHIM,.005" Thk

Bearing carrier .005" Thk

1шт.

G10720

SHIM,.010" Thk

Bearing carrier .010" Thk

1шт.

G13007

GEAR - side, differential (Includes V22150 plug)

2шт.

G15458

STUD

- brake cover to transmission (1/2" x 4-1/2") Utility

4шт.

1/2" NF HEX. NUT AND LOCKWASHER

4шт.

G30099

CARRIER - differential bearing (Includes O3755AB bearing cup)

2шт.

VT2111

X

WHEEL - center (Use VTA408)

1шт.

O3755AB

X

CUP - bearing, carrier (Timken #394A)

2шт.

O2084FH

X

ROLL PIN - differential pinion shaft (3/16" x 1-7/8")

3шт.

V22150

CAP

PLUG - side gear, differential

2шт.

V22202

BELLCRANK

CONE - bearing, carrier (Timken #390)

2шт.

VT3455

RIVET - ring gear to center wheel

12шт.

VT3456

X

WASHER - thrust, center wheel (.094")

1шт.

VT3457

SHAFT - cross, differential

1шт.

VT3459

PIN - differential pinion gear

3шт.

VT3546

X

STUD - brake cover to transmission (1/2" x 2-1/2") Utility

4шт.

VT3546

X

STUD - brake cover to transmission (1/2" x 2-1/2") General purpose

8шт.

1/2" NF HEX. NUT AND LOCKWASHER

8шт.

VT3820

WASHER - thrust, center wheel (.099")

1шт.

VT3821

WASHER - thrust, center wheel (.104")

1шт.

VT3994

WASHER - thrust, center wheel (.089")

1шт.

VT4101

WASHER - thrust, center wheel (.109")

1шт.

VT4102

X

WASHER - thrust, center wheel (.119")

1шт.

VT4103

WASHER

SHIM - thrust washer (.101")

1шт.

VT4489

X

PLUG - button, brake cover

2шт.

VTA408

RING GEAR AND CENTER WHEEL ASSEMBLY

1шт.

G10344

GEAR (66T) final drive

2шт.

G10346

OIL SEAL

OIL SEAL - outer, rear axle

2шт.

G10353

SHAFT - rear axle (301, 311, gen. purpose)

2шт.

G10414

ROLLER BEARING

CONE - inner bearing, rear axle (Timken #388A)

2шт.

G10415

BEARING CUP

CUP - inner bearing, rear axle (Timken #383A)

2шт.

G10851

SHAFT - rear axle, flanged (Utility)

2шт.

1/4" X 2-1/2" COTTER PIN

2шт.

G13064

KEY - hub to axle shaft, includes O2740FH roll pin (301, 311, general purpose)

2шт.

G13447

KEY - wheel to axle shaft, includes O2740FH roll pin (312 general purpose)

2шт.

G13801

OIL SEAL

OIL SEAL - inner, axle shaft (Utility)

2шт.

G13810

X

OIL SEAL - outer, rear axle (312 general purpose)

2шт.

G15207

ROLLER BEARING

CONE - outer bearing, rear axle (Timken #395S) 312 general purpose

2шт.

G15208

BEARING CUP,110mm OD x 18.82mm W

CUP - outer bearing, rear axle (Timken #394AS) 312 general purpose

2шт.

G16586

SHAFT - rear axle (312 general purpose)

2шт.

1/4" X 2-1/2" COTTER PIN

2шт.

O2089CS

X

WASHER - take-up, axle shaft

2шт.

O2740FH

X

ROLL PIN - hub key (1/4" x 1/2")

2шт.

VT2088

X

CUP - outer bearing, rear axle (Timken #28920)

2шт.

VT2089

X

CONE - outer bearing, rear axle (Timken #28985)

2шт.

VT4949

X

NUT - axle (1-1/2" NF hex. slotted)

2шт.
